Nano Circular USB 3.1
$1.00

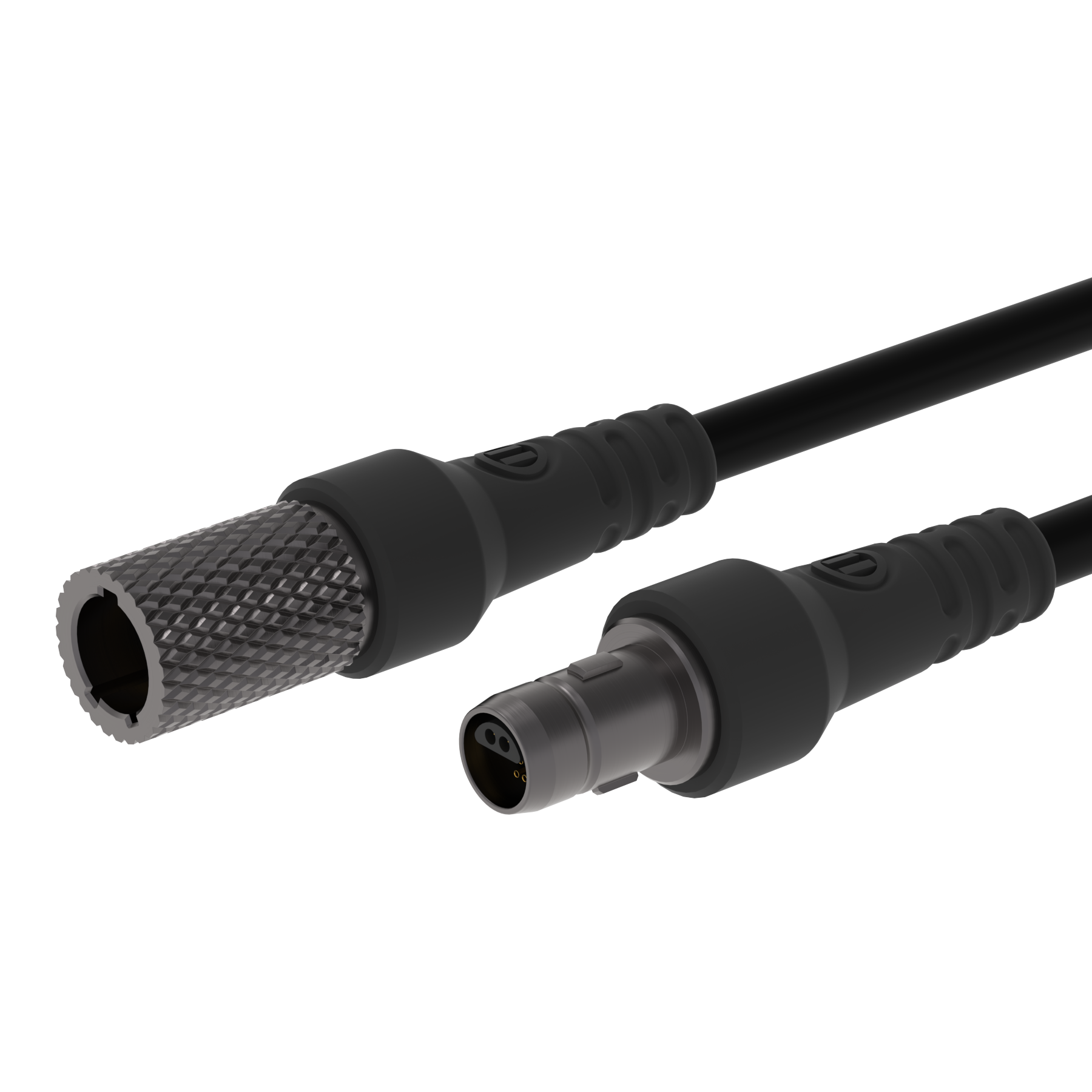

Omnetics Nano 360® USB 3.0 connectors provide the reliability and ruggedness expected from Omnetics connectors, while passing the signal requirements of USB 3.0 (USB 3.1 Gen 1).
Resources
| Title | Type | File |
| USB 3.1 Gen 1 Circular Dimensions | Download | |
| USB 3.1 Gen 1 Circular Characerization Report | Download |
Description
Omnetics Nano 360® USB 3.0 connectors provide the reliability and ruggedness expected from Omnetics connectors, while passing the signal requirements of USB 3.0 (USB 3.1 Gen 1). Using both simulation and measurement, Omnetics maximized the performance for USB by optimizing the pin locations of the critical signals. This yields maximum data transmission and provides excellent crosstalk that meets the requirements of USB 3.0/USB 3.1 Gen 1.
Additional information
| Omnetics Series |
KBXP ,KBXS ,MXC |
|---|---|
| Electrical Mechanical Specifications |
– |
| Performance |
Product family tested to and passed or exceeded the performance specifications of Table VIII of MIL-DTL-32139 |
| Contact Resistance (Nano) |
71 Milliohm Max (71mV Drop Max) @ 1.0 Amps per MIL-DTL-32139 |
| Contact Resistance (Micro) |
26 Milliohm Max (65 mV Drop Max) @ 2.5 Amps per MIL-DTL-32139 |
| Current Rating (Nano) |
1 Amp per MIL-DTL-32139 |
| Current Rating (Micro) |
3 Amps per MIL-DTL-83513 |
| Operating Temperature |
-55ºC to 85ºC |
| Durability |
>2000 mating cycles min |
| Insulation Resistance |
5000 megohms @ 500 VDC |
| Shock |
50 gs with no discontinuties > 10 nanosecond |
| Vibration |
20 gs with no discontinuties > 10 nanosecond |
| Thermal Vacuum Outgassing (Space Class) |
1.0% max TML, 0.03% max CVCM |
| Mating/Unmating Force |
2.5 oz (71 g) typical per contact |
| Material Specifications |
– |
| Contact |
Copper Alloy Per MIL-DTL-32139 |
| Contact Finish |
Gold per ASTM B488, Type II, Class 1.27, Code C Over Nickel Underplate |
| Insulator |
Thermoplastic per MIL-M-24519 |
| Overmold |
Black Thermoplastic Polyurethane |
| O-Ring |
BUNA-N |
| Cable (Shielded) |
30 AWG (7-38) SPC, FEP / 26 AWG (19-38) SPC, FEP color coded, Black Polyurethane Jacket |
| Shield |
Foil wrap with braid – 38 AWG tin plated copper |
| Shell Options |
– |
| Brass Alloy 360 1/2 Hard |
Electroless Nickel per SAE-AMS-2404 Black Nickel per MIL-P-18317 |
| Stainless Steel, 300 Series |
Passivated per SAE-AMS-2700 Black Oxide Finish per MIL-DTL-13924, Class 4*, Passivated per SAE-AMS-2700 |
Features
Omnetics Nano 360® USB 3.0 connectors provide the reliability and ruggedness expected from Omnetics connectors, while passing the signal requirements of USB 3.0 (USB 3.1 Gen 1). Using both simulation and measurement, Omnetics maximized the performance for USB by optimizing the pin locations of the critical signals. This yields maximum data transmission and provides excellent crosstalk that meets the requirements of USB 3.0/USB 3.1 Gen 1.
