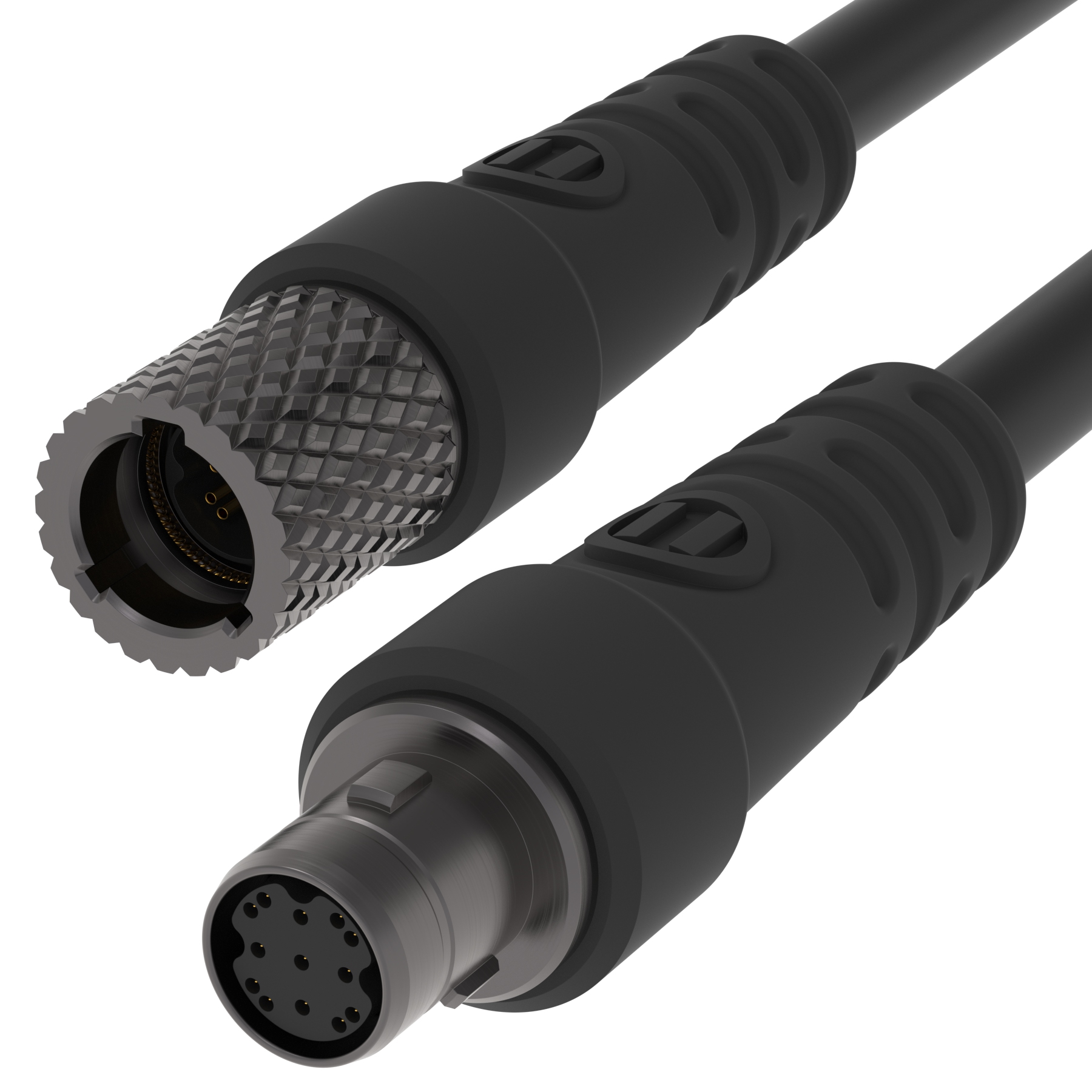

Nano Circular Cat6a Ethernet
Omnetics Nano 360® Cat6a connectors provide the reliability and ruggedness expected from Omnetics connectors, while passing the signal requirements of Cat6a.
Resources
| Title | Type | File |
| Cat6a Ethernet Nano Characterization | Download | |
| Cat6a Ethernet Nano Specifications | Download | |
| Cat6a Ethernet Nano Dimensions | Download |
Description
Omnetics Nano 360® Cat6a connectors provide the reliability and ruggedness expected from Omnetics connectors, while passing the signal requirements of Cat6a. Using both simulation and measurement, Omnetics optimized the performance for Cat6a by implementing a novel 5-pin grounding strategy. This provides excellent crosstalk performance and yields maximum data transmission that meets the requirements of Cat6a, per TIA-568-C.2.
Additional information
| Electrical Mechanical Specifications | – |
|---|---|
| Performance | Product family tested to and passed or exceeded the performance specifications of Table VIII of MIL-DTL-32139 |
| Contact Resistance | 71 Milliohm Max (71mV Drop Max) @ 1.0 Amps per MIL-DTL-32139 |
| Operating Temperature | -55ºC to 85ºC |
| Durability | >2000 mating cycles min |
| Insulation Resistance | 5000 megohms @ 500 VDC |
| Shock | 100 gs with no discontinuties > 10 nanosecond |
| Vibration | 20 gs with no discontinuties > 10 nanosecond |
| Thermal Vacuum Outgassing (Space Class) | 1.0% max TML, 0.03% max CVCM |
| Mating/Unmating Force | 3 oz (85 g) per contact |
| Material Specifications | – |
| Contact | Copper Alloy Per MIL-DTL-32139 |
| Contact Finish | Gold per ASTM B488,Type II, Class 1.27, Code C Over Nickel Underplate |
| Insulator | Thermoplastic per MIL-M-24519 |
| Overmold | Black Thermoplastic Polyurethane |
| O-Ring | BUNA-N |
| Cable (Shielded) | 32 AWG (7-40) SPC, FEP color coded, Black Polyurethane Jacket |
| Shield | Aluminum/Poly wrap with braid – 40 AWG tin plated copper |
| Shell Options | – |
| Brass Alloy 360 1/2 Hard | Electroless Nickel per SAE-AMS-2404 Black Nickel per MIL-P-18317 |
| Stainless Steel, 300 Series | Passivated per SAE-AMS-2700 Black Oxide Finish per MIL-DTL-13924, Class 4*, Passivated per SAE-AMS-2700 |
Features
Omnetics Nano 360® Cat6a connectors provide the reliability and ruggedness expected from Omnetics connectors, while passing the signal requirements of Cat6a. Using both simulation and measurement, Omnetics optimized the performance for Cat6a by implementing a novel 5-pin grounding strategy. This provides excellent crosstalk performance and yields maximum data transmission that meets the requirements of Cat6a, per TIA-568-C.2.
