Micro Circular Cat6a Ethernet
$1.00

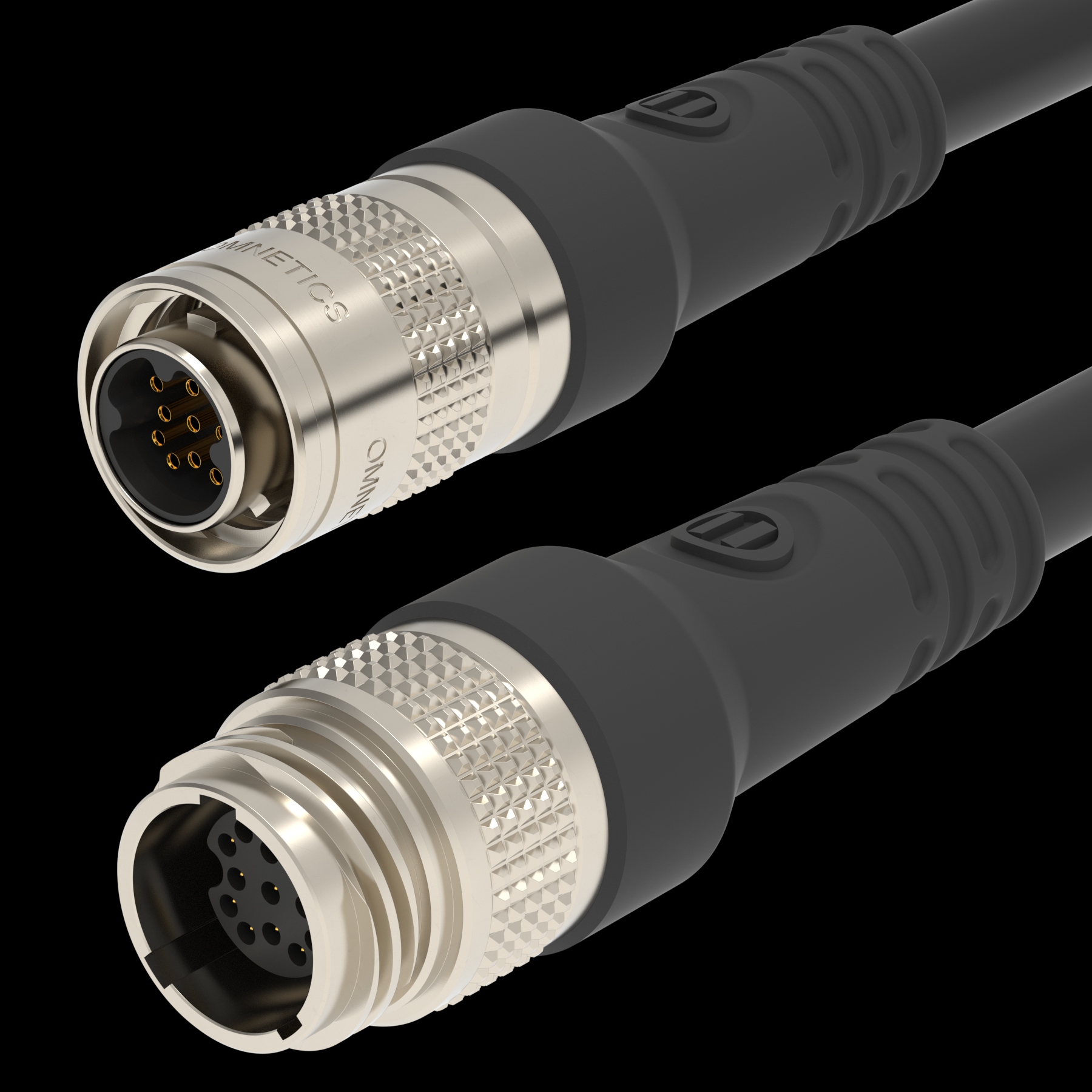

Omnetics Micro 360® Cat6a connectors provide the reliability and ruggedness expected from Omnetics connectors, while passing the signal requirements of Cat6a.
Resources
| Title | Type | File |
| Cat6a Ethernet Micro Characterization | Download | |
| Cat6a Ethernet Micro Specifications | Download | |
| Cat6a Ethernet Micro Report – GORE RCN9047 | Download | |
| Cat6a Ethernet Micro Dimensions | Download |
Description
Omnetics Micro 360® Cat6a connectors provide the reliability and ruggedness expected from Omnetics connectors, while passing the signal requirements of Cat6a. Using both simulation and measurement, Omnetics optimized the performance for Cat6a by implementing a novel 5-pin grounding strategy. This provides excellent crosstalk performance and yields maximum data transmission that meets the requirements of Cat6a, per TIA-568-C.2.
Additional information
| Electrical Mechanical Specifications |
– |
|---|---|
| Operating Temperature |
-55ºC to 85ºC |
| Dielectric Withstand Voltage |
600 VAC RMS @sea level |
| Contact Resistance |
26 milliohms(65 mV) Max @2.5 Amps |
| Current Rating (Nano) |
3 Amps per contact |
| Durability |
2000 mating cycles min |
| Insulation Resistance |
5000 megohms @ 500 VDC |
| Shock |
50 gs with no discontinuties > 1 microsecond |
| Vibration |
20 gs with no discontinuties > 1 microsecond |
| Thermal Vacuum Outgassing (Space Class) |
1.0% max TML, 0.03% max CVCM |
| Mating/Unmating Force |
3 oz (85 g) per contact |
| Material Specifications |
– |
| Contact |
Copper Alloy Per MIL-DTL-32139 |
| Contact Finish |
Gold per ASTM B488,Type II, Class 1.27, Code C Over Nickel Underplate |
| Insulator |
Thermoplastic per MIL-M-24519 |
| Overmold |
Black Thermoplastic Polyurethane |
| Cable (Shielded) |
26 AWG (7-34) TPC, HDPE color coded, Black Polyurethane Jacket |
| Shield |
Foamed Polypropylene wrap with braid – 38 AWG tin plated copper |
| Shell Options |
– |
| Stainless Steel, 300 Series |
Passivated per SAE-AMS-2700 Black Oxide Finish per MIL-DTL-13924, Class 4*, Passivated per SAE-AMS-2700 |
| Brass Alloy 360 1/2 Hard |
Electroless Nickel per SAE-AMS-2404 Black Nickel per MIL-P-18317 |
| Aluminum 6061 |
Electroless Nickel per SAE-AMS-2404 Black Nickel per MIL-P-18317 |
Features
Omnetics Micro 360® Cat6a connectors provide the reliability and ruggedness expected from Omnetics connectors, while passing the signal requirements of Cat6a. Using both simulation and measurement, Omnetics optimized the performance for Cat6a by implementing a novel 5-pin grounding strategy. This provides excellent crosstalk performance and yields maximum data transmission that meets the requirements of Cat6a, per TIA-568-C.2.
Specifications
| Electrical Mechanical Specifications |
– |
|---|---|
| Operating Temperature |
-55ºC to 85ºC |
| Dielectric Withstand Voltage |
600 VAC RMS @sea level |
| Contact Resistance |
26 milliohms(65 mV) Max @2.5 Amps |
| Current Rating (Nano) |
3 Amps per contact |
| Durability |
2000 mating cycles min |
| Insulation Resistance |
5000 megohms @ 500 VDC |
| Shock |
50 gs with no discontinuties > 1 microsecond |
| Vibration |
20 gs with no discontinuties > 1 microsecond |
| Thermal Vacuum Outgassing (Space Class) |
1.0% max TML, 0.03% max CVCM |
| Mating/Unmating Force |
3 oz (85 g) per contact |
| Material Specifications |
– |
| Contact |
Copper Alloy Per MIL-DTL-32139 |
| Contact Finish |
Gold per ASTM B488,Type II, Class 1.27, Code C Over Nickel Underplate |
| Insulator |
Thermoplastic per MIL-M-24519 |
| Overmold |
Black Thermoplastic Polyurethane |
| Cable (Shielded) |
26 AWG (7-34) TPC, HDPE color coded, Black Polyurethane Jacket |
| Shield |
Foamed Polypropylene wrap with braid – 38 AWG tin plated copper |
| Shell Options |
– |
| Stainless Steel, 300 Series |
Passivated per SAE-AMS-2700 Black Oxide Finish per MIL-DTL-13924, Class 4*, Passivated per SAE-AMS-2700 |
| Brass Alloy 360 1/2 Hard |
Electroless Nickel per SAE-AMS-2404 Black Nickel per MIL-P-18317 |
| Aluminum 6061 |
Electroless Nickel per SAE-AMS-2404 Black Nickel per MIL-P-18317 |
