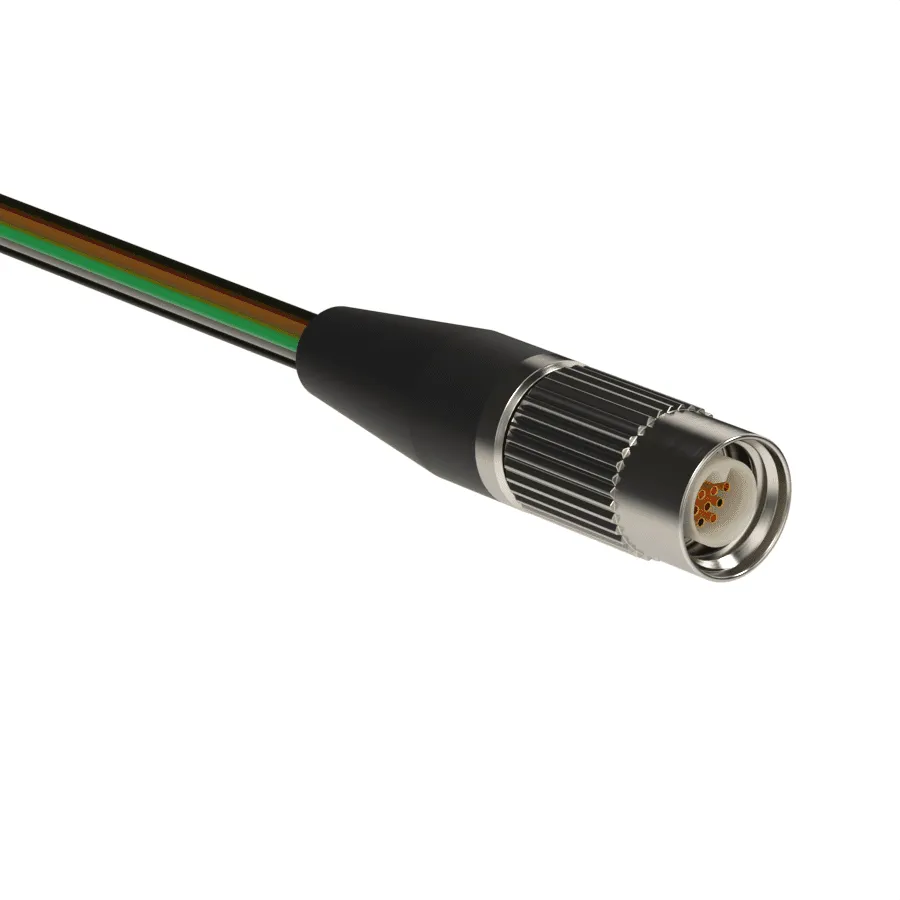

Nano 360® Circular Threaded Metal Shell – Discrete Wired/Cable
$1.00
Omnetics micro series of circular connectors are now available with metal housings giving them an environmental seal.
Resources
| Title | Type | File |
| Nano 360® Circular Threaded Metal Shell – Discrete Wired/Cable Contact | Download | |
| Nano 360® Circular Threaded Metal Shell – Discrete Wired/Cable Ordering Guide | Download |
Description
Omnetics nano series of circular connectors are now available with threaded metal housings giving them a positive lock and environmental seal. These are the smallest Mil-Quality circulars available today. With the ability to withstand high shock and vibrations while maintaining electrical integrity, they are ideal for the most demanding applications where size and weight are critical. These connectors can be configured with different levels of waterproof sealing up to IP-68. A variety of shell material and finishes are available including nickel plated brass and back oxide stainless steel.
These high density multi-position connectors are available in four shell sizes: 6, 11, 16 & 28 positions arranged on a .025 (.64 mm) pitch and are capable of 1 amp per contact. Utilizing a military quality contact system, these connectors are perfect for mission critical applications where size, weight and reliability are crucial.
Additional information
| Omnetics Series |
TNCP ,TNCS |
|---|---|
| Rows |
1 Row |
| Termination Type |
WC – Cable ,WD – Discrete Leadwire |
| Electrical Mechanical Specifications |
– |
| Temperature |
-55ºC to +125ºC (200 ºC w/HTE) |
| Dielectric Withstand Voltage |
250 VAC RMS |
| Contact Resistance |
71 Milliohm Max (71 mV Drop Max) @ 1.0 AMPs |
| Current Rating |
1 AMP per contact |
| Durability |
200 cycles |
| Insulation Resistance |
5, 000 megohms min @ 500 VDC |
| Shock |
100 gs with no discontinuties > 10 nanoseconds |
| Vibration |
20 gs with no discontinuties > 10 nanoseconds |
| Thermal Vacuum Outgassing |
1.0% max TML, 0.03% max CVCM |
| Mating/Unmating Force |
2.5 oz (71 g) typical per contact |
| Material Specifications |
– |
| Shell Material and Finish |
Ni Plated Brass or Black Ni. Contact Factory for other Materials |
| Insulator |
Thermoplastic Polymer, Per MIL-DTL-24519 |
| Pin |
Beryllium Copper per ASTM B194, Alloy C17200 |
| Socket |
Copper Alloy MIL-DTL-83513 |
| Encapsulant |
Epoxy |
Features
Omnetics nano series of circular connectors are now available with threaded metal housings giving them a positive lock and environmental seal. These are the smallest Mil-Quality circulars available today. With the ability to withstand high shock and vibrations while maintaining electrical integrity, they are ideal for the most demanding applications where size and weight are critical. These connectors can be configured with different levels of waterproof sealing up to IP-68. A variety of shell material and finishes are available including nickel plated brass and back oxide stainless steel.
These high density multi-position connectors are available in four shell sizes: 6, 11, 16 & 28 positions arranged on a .025” (.64 mm) pitch and are capable of 1 amp per contact. Utilizing a military quality contact system, these connectors are perfect for mission critical applications where size, weight and reliability are crucial.
Specifications
| Omnetics Series |
TNCP ,TNCS |
|---|---|
| Rows |
1 Row |
| Termination Type |
WC – Cable ,WD – Discrete Leadwire |
| Electrical Mechanical Specifications |
– |
| Temperature |
-55ºC to +125ºC (200 ºC w/HTE) |
| Dielectric Withstand Voltage |
250 VAC RMS |
| Contact Resistance |
71 Milliohm Max (71 mV Drop Max) @ 1.0 AMPs |
| Current Rating |
1 AMP per contact |
| Durability |
200 cycles |
| Insulation Resistance |
5, 000 megohms min @ 500 VDC |
| Shock |
100 gs with no discontinuties > 10 nanoseconds |
| Vibration |
20 gs with no discontinuties > 10 nanoseconds |
| Thermal Vacuum Outgassing |
1.0% max TML, 0.03% max CVCM |
| Mating/Unmating Force |
2.5 oz (71 g) typical per contact |
| Material Specifications |
– |
| Shell Material and Finish |
Ni Plated Brass or Black Ni. Contact Factory for other Materials |
| Insulator |
Thermoplastic Polymer, Per MIL-DTL-24519 |
| Pin |
Beryllium Copper per ASTM B194, Alloy C17200 |
| Socket |
Copper Alloy MIL-DTL-83513 |
| Encapsulant |
Epoxy |
