Omnetics Ultra Low Profile Single Row Micro-D Connectors are ideal for critical, high reliability industries including aerospace, military, petroleum, and medical.
Resources
Title
Type
File

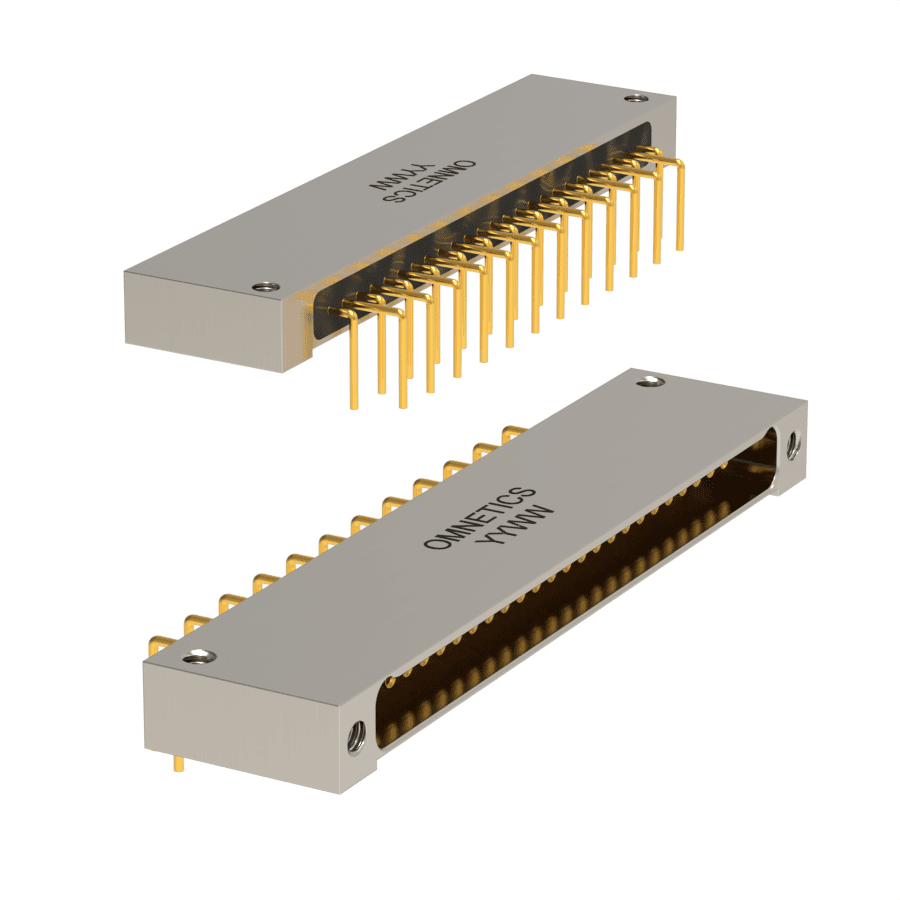

Single Row Micro-D Thru-Hole Horizontal (H2) Guide
Omnetics Ultra Low Profile Single Row Micro-D Connectors are ideal for critical, high reliability industries including aerospace, military, petroleum, and medical. They are also used in devices such as optics, guidance systems, on-board equipment, space, and UAV systems. They are built to meet or exceed the specifications of MIL-DTL-83513. Highly rugged and compact designs in shell styles from 9 to 37 contacts. The Single Row Micro-D connectors incorporate Omnetics one-piece flex pin design for greater shock and vibration resistance. The high reliability gold plated flex pin is designed for >2,000 mating cycles. Omnetics Single Row Micro-D connectors will operate from -55°C to 200°C.
Additional information
Omnetics Series
MMSS
Rows
1 Row
Termination Type
H2 – Right Angle Thru-Hole
Electrical Mechanical Specifications
–
Temperature
-55ºC to +125ºC (200 ºC w/HTE)
Dielectric Withstand Voltage
600 VAC RMS at Sea Level
Contact Resistance
26 milliohms (65 mV) max @ 2.5 Amps per MIL-DTL-83513
Current Rating
3 Amps per contact per MIL-DTL-83513
Durability
2\,000 Mating Cycles min
Insulation Resistance
5000 Meg ohms @ 500 VDC
Shock
50 gs with no discontinuities > 1 microsecond
Vibration
20 gs with no discontinuities > 1 microsecond
Thermal Vacuum Outgassing
1.0% max TML\, 0.03% CVCM – NASA SP-R-0022
Mating/Unmating Force
3 oz (85 g) typical per contact
Material Specifications
–
Contact Finish
Gold per ASTM B488\, Type II\, Class 1.27\, Code C Over Nickel Underplate
Insulator
Thermoplastic per MIL-M-24519
Interfacial Seal
Silicone Elastomer per A-A-59588
Hardware
Stainless Steel\, 300 Series\, Passivated per SAE AMS-2700
Shell Options
–
Aluminum 6061
Electroless Nickel per SAE-AMS-2404
Stainless Steel, 300 Series
Passivated per SAE-AMS-2700
Features
Omnetics’ Ultra Low Profile Single Row Micro-D Connectors are ideal for critical, high reliability industries including aerospace, military, petroleum, and medical. They are also used in devices such as optics, guidance systems, on-board equipment, space, and UAV systems. They are built to meet or exceed the specifications of MIL-DTL-83513. Highly rugged and compact designs in shell styles from 9 to 37 contacts. The Single Row Micro-D connectors incorporate Omnetics one-piece flex pin design for greater shock and vibration resistance. The high reliability gold plated flex pin is designed for >2,000 mating cycles. Omnetics Single Row Micro-D connectors will operate from -55°C to 200°C.
