Horizontal Board Mount .100
$1.00

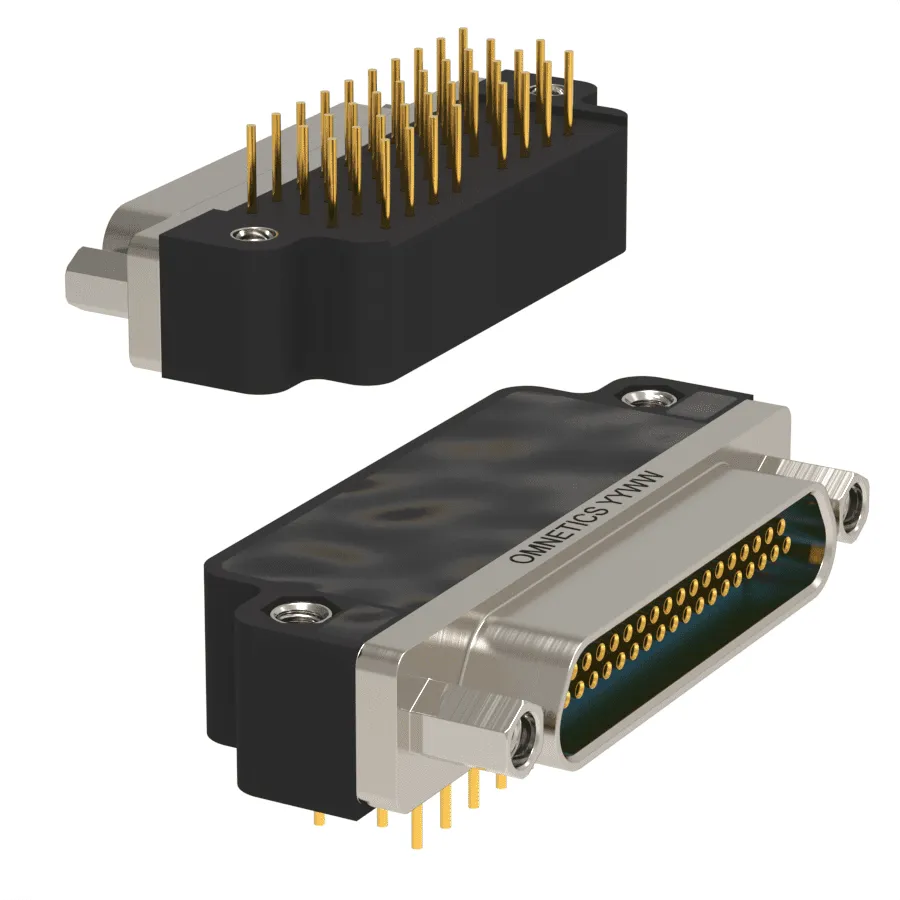

Omnetics Micro-D Narrow Right Angle Thru-Hole board mount connectors
offer the traditional .100 inch pitch.
Resources
| Title | Type | File |
| Narrow Right Angle .100 SR1 Contact | Download | |
| Narrow Right Angle .100 SR1 Ordering Guide | Download | |
| Narrow Right Angle .100 SR1 Hardware & Misc. | Download |
Description
Omnetics Micro-D Narrow Right Angle Thru-Hole board mount connectors offer the traditional .100 inch pitch. These high-reliability connectors provide excellent shock and vibration performance and meet or exceed the requirements of MIL-DTL-83513 utilizing the rugged Omnetics flex pin contact.
Additional information
| Omnetics Series |
MMDP ,MMDS |
|---|---|
| Rows |
2 Rows ,3 Rows |
| Termination Type |
SR1 – Narrow Right Angle .100 |
| Electrical Mechanical Specifications |
– |
| Temperature |
-55ºC to 125ºC |
| Dielectric Withstand Voltage |
600 VAC RMS @sea level |
| Contact Resistance |
26 milliohms max (65 mV drop) @ 2.5 AMPS |
| Current Rating |
3 AMPS per contact |
| Durability |
2\,000 Mating Cycles min |
| Insulation Resistance |
5000 Meg ohms @ 500 VDC |
| Shock |
50 g's with no discontinuities > 1 microsecond |
| Vibration |
20 g's with no discontinuities > 1 microsecond |
| Thermal Vacuum Outgassing |
1.0% max TML\, 0.03% CVCM – NASA SP-R-0022 |
| Mating/Unmating Force |
3 oz (85 g) typical per contact |
| Material Specifications |
– |
| Contact |
Copper Alloy per MIL-DTL-83513 |
| Contact Finish |
Gold per ASTM B488\, Type II\, Class 1.27\, Code C Over Nickel Underplate |
| Insulator |
Thermoplastic per MIL-DTL-83513 |
| Interfacial Seal |
Fluorosilicone Elastomer per A-A-59588 |
| Hardware |
Stainless Steel\, 300 Series\, Passivated per SAE AMS-2700 |
| Shell Options |
– |
| Aluminum Shell, Electroless Nickel Plated |
Alloy 6061 per SAE AMS-QQ-A-200/8 or ASTMB221 Nickel per SAE AMS-2404 |
| Aluminum Shell, Cadmium Plated |
Alloy 6061 per SAE AMS-QQ-A-200/8\, Cadmium with Yellow Chromate Conversion per SAE-AMS-QQ-P-416\, Type II\, Class 3 Over Nickel Underplate |
| Aluminum Shell, Black Anodized |
Alloy 6061 per SAE AMS-QQ-A-200/8 or ASTMB221 Black Anodize per MIL-A-8625\, Type II\, Class 2 |
| Stainless Steel Shell, Passivated |
300 Series\, Passivated per SAE AMS-2700 |
Features
Omnetics Micro-D Narrow Right Angle Thru-Hole board mount connectors offer the traditional .100 inch pitch. These high-reliability connectors provide excellent shock and vibration performance and meet or exceed the requirements of MIL-DTL-83513 utilizing the rugged Omnetics flex pin contact.
