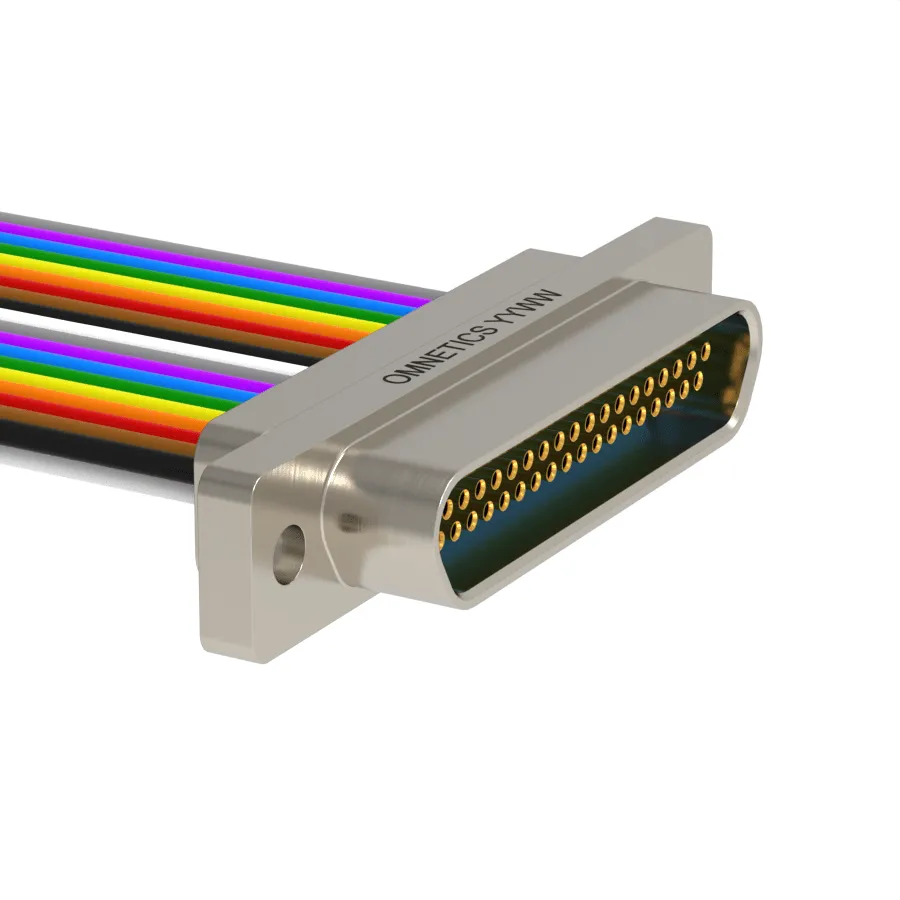

Micro-D Discrete Wired (WD)
$1.00
- Sizes 9, 15, 21, 25, 31, 37 and 51 are available with two contact rows
- Size 51 and 69 are available with three contact rows
- Size 100 is available with four contact rows
- Mating Pin & Socket models available
- RoHS available upon request
- Overmolding available upon request
Resources
| Title | Type | File |
| Micro-D (WD) Contact | Download | |
| Micro-D (WD) Ordering Guide | Download | |
| Micro-D (WD) Hardware & Misc. | Download |
Description
- Sizes 9, 15, 21, 25, 31, 37 and 51 are available with two contact rows
- Size 51 and 69 are available with three contact rows
- Size 100 is available with four contact rows
- Mating Pin & Socket models available
- RoHS available upon request
- Overmolding available upon request
Additional information
| Omnetics Series |
MMDP ,MMDS |
|---|---|
| Rows |
2 Rows ,3 Rows ,4 Rows |
| Termination Type |
WD – Discrete Leadwire |
| Electrical Mechanical Specifications |
– |
| Temperature |
-55ºC to +125ºC (200 ºC w/HTE) |
| Dielectric Withstand Voltage |
600 VAC RMS @sea level |
| Contact Resistance |
26 milliohms max (65 mV drop) @ 2.5 AMPS |
| Current Rating |
3 AMPS per contact |
| Durability |
2\,000 Mating Cycles min |
| Insulation Resistance |
5000 Meg ohms @ 500 VDC |
| Shock |
50 g's with no discontinuities > 1 microsecond |
| Vibration |
20 g's with no discontinuities > 1 microsecond |
| Thermal Vacuum Outgassing |
1.0% max TML\, 0.03% CVCM – NASA SP-R-0022 |
| Mating/Unmating Force |
3 oz (85 g) typical per contact |
| Material Specifications |
– |
| Contact |
Copper Alloy per MIL-DTL-83513 |
| Contact Finish |
Gold per ASTM B488\, Type II\, Class 1.27\, Code C Over Nickel Underplate |
| Insulator |
Thermoplastic per MIL-DTL-83513 |
| Interfacial Seal |
Fluorosilicone Elastomer per A-A-59588 |
| Hardware |
Stainless Steel\, 300 Series\, Passivated per SAE AMS-2700 |
| Shell Options |
– |
| Aluminum Shell, Electroless Nickel Plated |
Alloy 6061 per SAE AMS-QQ-A-200/8 or ASTMB221 Nickel per SAE AMS-2404 |
| Aluminum Shell, Cadmium Plated |
Alloy 6061 per SAE AMS-QQ-A-200/8\, Cadmium with Yellow Chromate Conversion per SAE-AMS-QQ-P-416\, Type II\, Class 3 Over Nickel Underplate |
| Aluminum Shell, Black Anodized |
Alloy 6061 per SAE AMS-QQ-A-200/8 or ASTMB221 Black Anodize per MIL-A-8625\, Type II\, Class 2 |
| Stainless Steel Shell, Passivated |
300 Series\, Passivated per SAE AMS-2700 |
