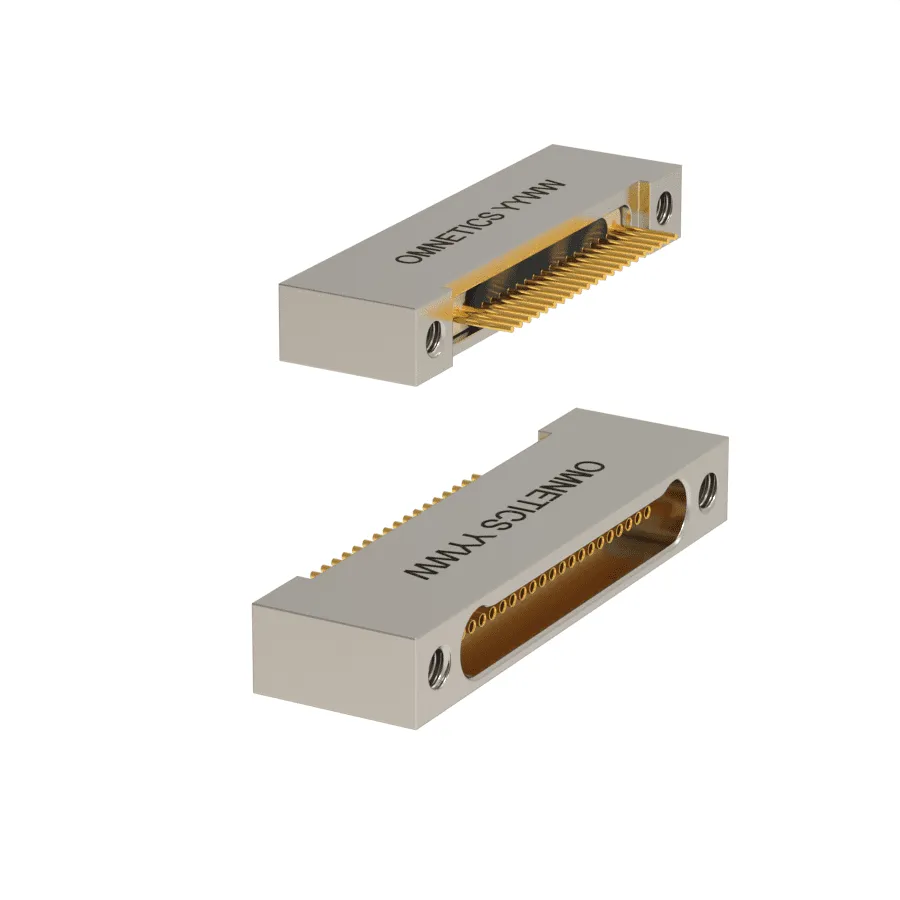

Nano-D / Bi-Lobe® Single Row Straight Tails (DD)
$1.00
Single Row Nano-D / Bi-Lobe® nanos can be loaded with simple straight tails (Integral or Crimped). Suitable for vertical thruhole mounting to fine pitched flex circuits, they are designed on .025″ (.64 mm) centerlines.
Resources
| Title | Type | File |
| Nano-D / Bi-Lobe® Single Row Straight Tails (DD) Contact | Download | |
| Nano-D / Bi-Lobe® Single Row Straight Tails (DD) Ordering Guide | Download | |
| Nano-D / Bi-Lobe® Single Row Straight Tails (DD) Hardware & Misc. | Download |
Description
Single Row Nano-D / Bi-Lobe® nanos can be loaded with simple straight tails (Integral or Crimped). Suitable for vertical thruhole mounting to fine pitched flex circuits, they are designed on .025″ (.64 mm) centerlines.
The straight tails are also commonly used in ultra fine wirewrap termination, such as used in electro-physiology. These durable lightweight connectors utilize Omnetics gold plated Flex Pin contact system and are suitable for the most demanding applications. They are inter-mateable with Omnetics QPL versions of MIL-DTL-32139.
These connectors are available in standard sizes ranging from 5 through 51 positions, as well as custom configurations. Flex design and termination is available. Please contact us for more information.
Additional information
| Omnetics Series |
MBPS ,MBSS |
|---|---|
| Rows |
1 Row |
| Termination Type |
DD – Thru-Hole Straight |
| Electrical Mechanical Specifications |
– |
| Temperature |
-55ºC to +125ºC (200 ºC w/HTE) |
| Dielectric Withstand Voltage |
250 VAC RMS Sea Level |
| Contact Resistance |
71 mV Drop @ 1 AMP |
| Current Rating |
1 AMP per contact |
| Durability |
200 Mating cycles min* |
| Insulation Resistance |
5000 megohms min @ 100 VDC |
| Shock |
100 gs with no discontinuties > 10 nanoseconds |
| Vibration |
20 gs with no discontinuties > 10 nanoseconds |
| Thermal Vacuum Outgassing |
1.0% max TML, 0.1% max VCM |
| Mating/Unmating Force |
7 oz. (198 g) max per contact |
| Material Specifications |
– |
| Shell Material and Finish |
Aluminum Shell, Electroless Nickel Plated Aluminum Shell, Black AnodizedAluminum Shell, Cadmium PlatedTitanium Shell, UnplatedStainless Steel Shell, Passivated |
| Insulator |
Liquid Crystal Polymer per MIL-DTL-32139 or PEEK |
| Pin |
Gold Plated BeCu |
| Socket |
Gold Plated Copper Alloy |
| Encapsulant |
Epoxy |
Features
Single Row Nano-D / Bi-Lobe® nanos can be loaded with simple straight tails (Integral or Crimped). Suitable for vertical thruhole mounting to fine pitched flex circuits, they are designed on .025″ (.64 mm) centerlines.
The straight tails are also commonly used in ultra fine wirewrap termination, such as used in electro-physiology. These durable lightweight connectors utilize Omnetics’ gold plated Flex Pin contact system and are suitable for the most demanding applications. They are inter-mateable with Omnetics QPL versions of MIL-DTL-32139.
These connectors are available in standard sizes ranging from 5 through 51 positions, as well as custom configurations. Flex design and termination is available. Please contact us for more information.
Specifications
| Omnetics Series |
MBPS ,MBSS |
|---|---|
| Rows |
1 Row |
| Termination Type |
DD – Thru-Hole Straight |
| Electrical Mechanical Specifications |
– |
| Temperature |
-55ºC to +125ºC (200 ºC w/HTE) |
| Dielectric Withstand Voltage |
250 VAC RMS Sea Level |
| Contact Resistance |
71 mV Drop @ 1 AMP |
| Current Rating |
1 AMP per contact |
| Durability |
200 Mating cycles min* |
| Insulation Resistance |
5000 megohms min @ 100 VDC |
| Shock |
100 gs with no discontinuties > 10 nanoseconds |
| Vibration |
20 gs with no discontinuties > 10 nanoseconds |
| Thermal Vacuum Outgassing |
1.0% max TML, 0.1% max VCM |
| Mating/Unmating Force |
7 oz. (198 g) max per contact |
| Material Specifications |
– |
| Shell Material and Finish |
Aluminum Shell, Electroless Nickel Plated Aluminum Shell, Black AnodizedAluminum Shell, Cadmium PlatedTitanium Shell, UnplatedStainless Steel Shell, Passivated |
| Insulator |
Liquid Crystal Polymer per MIL-DTL-32139 or PEEK |
| Pin |
Gold Plated BeCu |
| Socket |
Gold Plated Copper Alloy |
| Encapsulant |
Epoxy |
