Micro 360® Break Away Circulars Inline – Discrete Wire/Cable
$1.00
Omnetics Micro series of circular connectors are now available in a break away configuration.
Resources
| Title | Type | File |
| Micro 360® Break Away Circulars Inline – Discrete Wire/Cable Contact | Download | |
| Micro 360® Break Away Circulars Inline – Discrete Wire/Cable Ordering Guide | Download |
Description

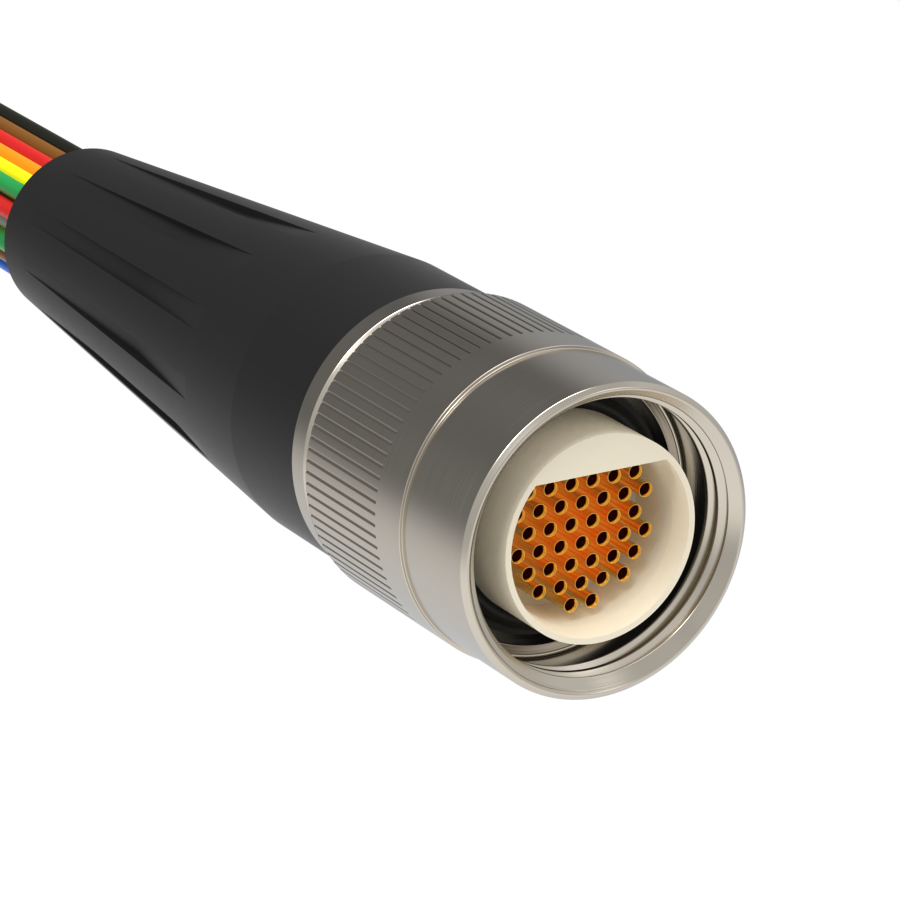

Omnetics Micro series of circular connectors are now available in a break away configuration. These connectors are the smallest Mil-Quality circulars available today. With the ability to withstand high shock and vibrations while maintaining their electrical integrity, the break away feature is ideal for the most demanding applications where size and ruggedness are valued. Designed with an extra retention spring these connectors are engineered to release (break away) at a pre-determined force. These connectors are also available with added waterproof sealing up to IP-68 for the mated pair.
Utilizing a military quality contact system these connectors are ideal for applications where size, weight and overall reliability are critical.
Additional information
| Omnetics Series |
BAMP ,BAMS ,KBMP ,KBMS |
|---|---|
| Rows |
2 Rows ,3 Rows ,4 Rows |
| Termination Type |
WC – Cable ,WD – Discrete Leadwire |
| Electrical Mechanical Specifications |
– |
| Temperature |
-55ºC to +125ºC (200 ºC w/HTE) |
| Dielectric Withstand Voltage |
250 VAC RMS at Sea Level |
| Contact Resistance |
26 Milliohm Max (65 mV Drop Max) @ 2.5 AMPs per MIL-DTL-83513 |
| Current Rating |
3 AMPs per contact |
| Durability |
500 cycles |
| Insulation Resistance |
5, 000 megohms min @ 500 VDC |
| Shock |
50 gs with no discontinuties > 1 microsecond |
| Vibration |
20 gs with no discontinuties > 1 microsecond |
| Thermal Vacuum Outgassing |
NASA SP-R-0022 |
| Mating/Unmating Force |
3 oz (85 g) typical per contact |
| Material Specifications |
– |
| Shell Material and Finish |
Ni Plated Brass or Black Ni. Contact Factory for other Materials |
| Insulator |
LCP per MIL-M-24519, Type GLCP-30F |
| Pin |
Beryllium Copper per ASTM B194, Alloy C17200 |
| Socket |
Copper Alloy MIL-DTL-83513 |
| Encapsulant |
Epoxy |
Features
Omnetics Micro series of circular connectors are now available in a break away configuration. These connectors are the smallest Mil-Quality circulars available today. With the ability to withstand high shock and vibrations while maintaining their electrical integrity, the break away feature is ideal for the most demanding applications where size and ruggedness are valued. Designed with an extra retention spring these connectors are engineered to release (break away) at a pre-determined force. These connectors are also available with added waterproof sealing up to IP-68 for the mated pair.
Utilizing a military quality contact system these connectors are ideal for applications where size, weight and overall reliability are critical.
Specifications
| Omnetics Series |
BAMP ,BAMS ,KBMP ,KBMS |
|---|---|
| Rows |
2 Rows ,3 Rows ,4 Rows |
| Termination Type |
WC – Cable ,WD – Discrete Leadwire |
| Electrical Mechanical Specifications |
– |
| Temperature |
-55ºC to +125ºC (200 ºC w/HTE) |
| Dielectric Withstand Voltage |
250 VAC RMS at Sea Level |
| Contact Resistance |
26 Milliohm Max (65 mV Drop Max) @ 2.5 AMPs per MIL-DTL-83513 |
| Current Rating |
3 AMPs per contact |
| Durability |
500 cycles |
| Insulation Resistance |
5, 000 megohms min @ 500 VDC |
| Shock |
50 gs with no discontinuties > 1 microsecond |
| Vibration |
20 gs with no discontinuties > 1 microsecond |
| Thermal Vacuum Outgassing |
NASA SP-R-0022 |
| Mating/Unmating Force |
3 oz (85 g) typical per contact |
| Material Specifications |
– |
| Shell Material and Finish |
Ni Plated Brass or Black Ni. Contact Factory for other Materials |
| Insulator |
LCP per MIL-M-24519, Type GLCP-30F |
| Pin |
Beryllium Copper per ASTM B194, Alloy C17200 |
| Socket |
Copper Alloy MIL-DTL-83513 |
| Encapsulant |
Epoxy |
