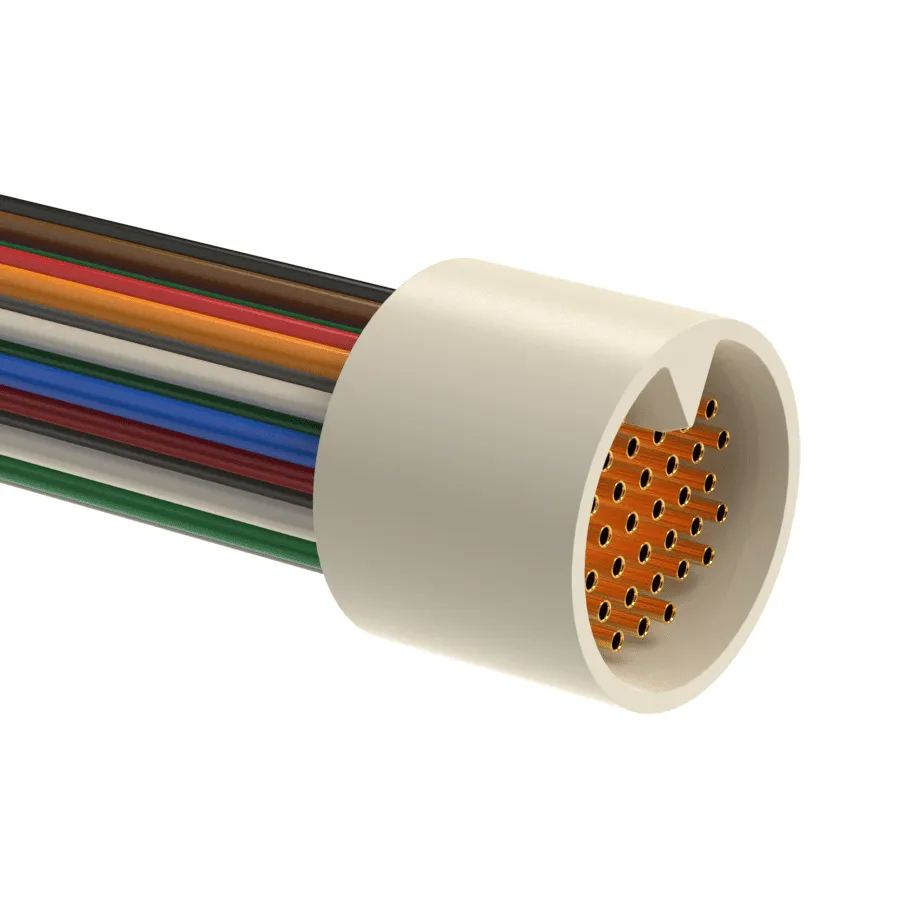

Nano 360® Plastic Circulars – Discrete Wire/Cable
$1.00
The Nano Circular Series utilizes Omnetics’ rugged and reliable Flex-Pin contact system.
Resources
| Title | Type | File |
| Nano 360® Plastic Circulars – Discrete Wire/Cable Contact | Download | |
| Nano 360® Plastic Circulars – Discrete Wire/Cable Ordering Guide | Download | |
| Nano 360® Plastic Circulars – Discrete Wire/Cable Hardware & Misc. | Download |
Description
The Nano Circular Series utilizes Omnetics’ rugged and reliable Flex-Pin contact system. Spaced on 25 mil (.64mm) centerlines and a 9.0 mm mated length, these connectors are the smallest Mil-Quality circulars available today. Extremely small outer diameters range from .122″ (3.1 mm) to .217″ (5.5 mm). With the ability to withstand high shock and vibration while maintaining their electrical integrity, these connectors are ideal for the most demanding applications. Gold plated contacts are polarized and shrouded by our unique Liquid Crystal Polymer housing, making these connectors capable of over 2,000 mating cycles.
6, 11, 16 & 28 positions housing sizes are available in pre-wired and solid straight tail versions.
Elaborate wire harnesses, flex termination, overmolding and custom shells are all available upon request.
Clip option is also available. See “accessories” tab below.
Additional information
| Omnetics Series | NCP, NCS |
|---|---|
| Rows | 1 Row |
| Termination Type | WC – Cable, WD – Discrete Leadwire |
| Electrical Mechanical Specifications | – |
| Temperature | -55ºC to +125ºC (200 ºC w/HTE) |
| Dielectric Withstand Voltage | 250 VAC RMS @ sea level |
| Contact Resistance | 71 milliohms (71 mV) Max @ 1 AMPs |
| Current Rating | 1 AMP per contact |
| Durability | 200 cycles |
| Insulation Resistance | 5, 000 megohms min @ 100 VDC |
| Shock | 100 gs with no discontinuties > 10 nanoseconds |
| Vibration | 20 gs with no discontinuties > 10 nanoseconds |
| Thermal Vacuum Outgassing | 1.0% max TML, 0.03% max CVCM |
| Mating/Unmating Force | Forces not to exceed 7 oz/contact |
| Material Specifications | – |
| Insulator | Thermoplastic Polymer, Per MIL-DTL-24519 |
| Pin | Beryllium Copper per ASTM B194, Alloy C17200 |
| Socket | Copper Alloy MIL-DTL-83513 |
| Encapsulant | Epoxy |
Features
The Nano Circular Series utilizes Omnetics’ rugged and reliable Flex-Pin contact system. Spaced on 25 mil (.64mm) centerlines and a 9.0 mm mated length, these connectors are the smallest Mil-Quality circulars available today. Extremely small outer diameters range from .122″ (3.1 mm) to .217″ (5.5 mm). With the ability to withstand high shock and vibration while maintaining their electrical integrity, these connectors are ideal for the most demanding applications.
Gold plated contacts are polarized and shrouded by our unique Liquid Crystal Polymer housing, making these connectors capable of over 2,000 mating cycles.
6, 11, 16 & 28 positions housing sizes are available in pre-wired and solid straight tail versions.
Elaborate wire harnesses, flex termination, overmolding and custom shells are all available upon request.
Clip option is also available. See “accessories” tab below.
Specifications
| Omnetics Series | NCP, NCS |
|---|---|
| Rows | 1 Row |
| Termination Type | WC – Cable, WD – Discrete Leadwire |
| Electrical Mechanical Specifications | – |
| Temperature | -55ºC to +125ºC (200 ºC w/HTE) |
| Dielectric Withstand Voltage | 250 VAC RMS @ sea level |
| Contact Resistance | 71 milliohms (71 mV) Max @ 1 AMPs |
| Current Rating | 1 AMP per contact |
| Durability | 200 cycles |
| Insulation Resistance | 5, 000 megohms min @ 100 VDC |
| Shock | 100 gs with no discontinuties > 10 nanoseconds |
| Vibration | 20 gs with no discontinuties > 10 nanoseconds |
| Thermal Vacuum Outgassing | 1.0% max TML, 0.03% max CVCM |
| Mating/Unmating Force | Forces not to exceed 7 oz/contact |
| Material Specifications | – |
| Insulator | Thermoplastic Polymer, Per MIL-DTL-24519 |
| Pin | Beryllium Copper per ASTM B194, Alloy C17200 |
| Socket | Copper Alloy MIL-DTL-83513 |
| Encapsulant | Epoxy |
