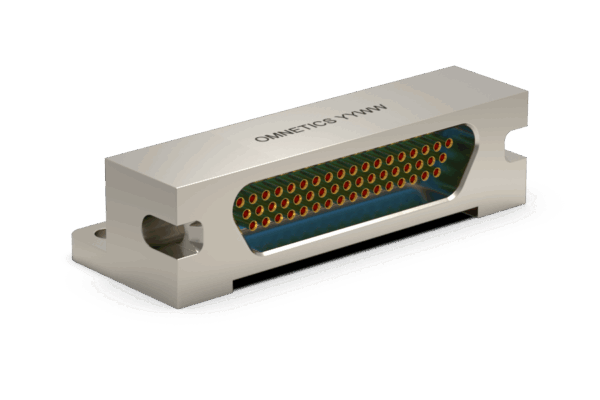

Omnetics Series
|
MDLP
,
MDLS
|
|
Rows
|
2 Rows
|
|
Termination Type
|
H2 – Right Angle Thru-Hole
|
|
Electrical Mechanical Specifications
|
–
|
|
Temperature
|
-55ºC to +125ºC (200 ºC w/HTE)
|
|
Dielectric Withstand Voltage
|
600 VAC RMS @sea level
|
|
Contact Resistance
|
26 milliohms max (65 mV drop) @ 2.5 AMPS
|
|
Current Rating
|
3 AMPS per contact
|
|
Durability
|
2\,000 Mating Cycles min
|
|
Insulation Resistance
|
5000 Meg ohms @ 500 VDC
|
|
Shock
|
50 gs with no discontinuities > 1 microsecond
|
|
Vibration
|
20 gs with no discontinuities > 1 microsecond
|
|
Thermal Vacuum Outgassing
|
1.0% max TML\, 0.03% CVCM – NASA SP-R-0022
|
|
Mating/Unmating Force
|
3 oz (85 g) typical per contact
|
|
Material Specifications
|
–
|
|
Contact
|
Copper Alloy per MIL-DTL-83513
|
|
Contact Finish
|
Gold per ASTM B488\, Type II\, Class 1.27\, Code C Over Nickel Underplate
|
|
Insulator
|
Thermoplastic per MIL-DTL-83513
|
|
Interfacial Seal
|
Fluorosilicone Elastomer per A-A-59588
|
|
Hardware
|
Stainless Steel\, 300 Series\, Passivated per SAE AMS-2700
|
|
Shell Options
|
–
|
|
Aluminum Shell, Electroless Nickel Plated
|
Alloy 6061 per SAE AMS-QQ-A-200/8 or ASTMB221 Nickel per SAE AMS-2404
|
|
Aluminum Shell, Cadmium Plated
|
Alloy 6061 per SAE AMS-QQ-A-200/8\, Cadmium with Yellow Chromate Conversion per SAE-AMS-QQ-P-416\, Type II\, Class 3 Over Nickel Underplate
|
|
Aluminum Shell, Black Anodized
|
Alloy 6061 per SAE AMS-QQ-A-200/8 or ASTMB221 Black Anodize per MIL-A-8625\, Type II\, Class 2
|
|
Stainless Steel Shell, Passivated
|
300 Series\, Passivated per SAE AMS-2700
|
