Description

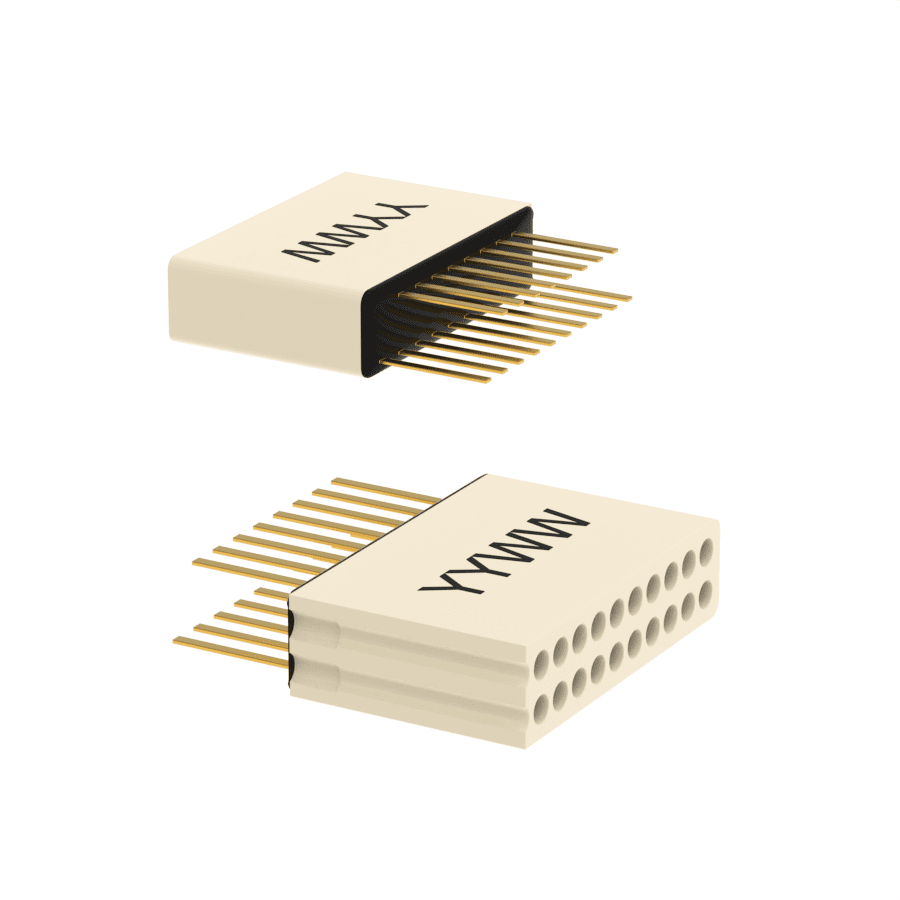

The Dual Row Nano Strip connectors are configured with simple straight tails (Integral and Crimped). Suitable for vertical thru-hole mounting to fine pitched flex circuits. These ruggedized nano connectors are designed on .025” (.64 mm) centerlines. The straight tails are commonly used in a variety of wrap termination such as neuroscience related applications. Whatever your application, these connectors feature Omnetics’ gold plated Flex Pin contact system that conforms to the requirements of MIL-DTL-32139. These connectors are available in standard sizes ranging from 2 through 80 positions as well as custom configurations. Flex design and installation service is also available from Omnetics. Please contact us for more information.
Additional information
| Omnetics Series | NPD, NSD |
|---|---|
| Rows | 2 Rows |
| Termination Type | DD – Thru-Hole Straight |
| Electrical Mechanical Specifications | – |
| Temperature | -55ÂşC to +125ÂşC (200 ÂşC w/HTE) |
| Dielectric Withstand Voltage | 250 VAC RMS @ Sea Level |
| Contact Resistance | 71 milliohms max (71 mV max @ 1 AMP) |
| Current Rating | 1 AMP per contact |
| Durability | 200 Cycles |
| Insulation Resistance | 5, 000 Megohms min @ 100 VDC |
| Shock | 100 g’s with no discontinuities > 10 nanoseconds |
| Vibration | 20 g’s with no discontinuities > 10 nanoseconds |
| Thermal Vacuum Outgassing | NASA SP-R-0022 |
| Mating/Unmating Force | Forces not to exceed 7 oz/contact |
| Material Specifications | – |
| Insulator | LCP per MIL-M-24519 |
| Socket | Gold Plated Copper Alloy |
| Encapsulant | Epoxy |
| Standard Pin PCB Tail Termination | Solder per J-STD-006 (Non-RoHS) |
| RoHS Pin PCB Tail Termination | Hard gold plate per ASTM B488 |
| RoHS Socket PCB Tail Termination | Hard gold plate per ASTM B488 |
