Description

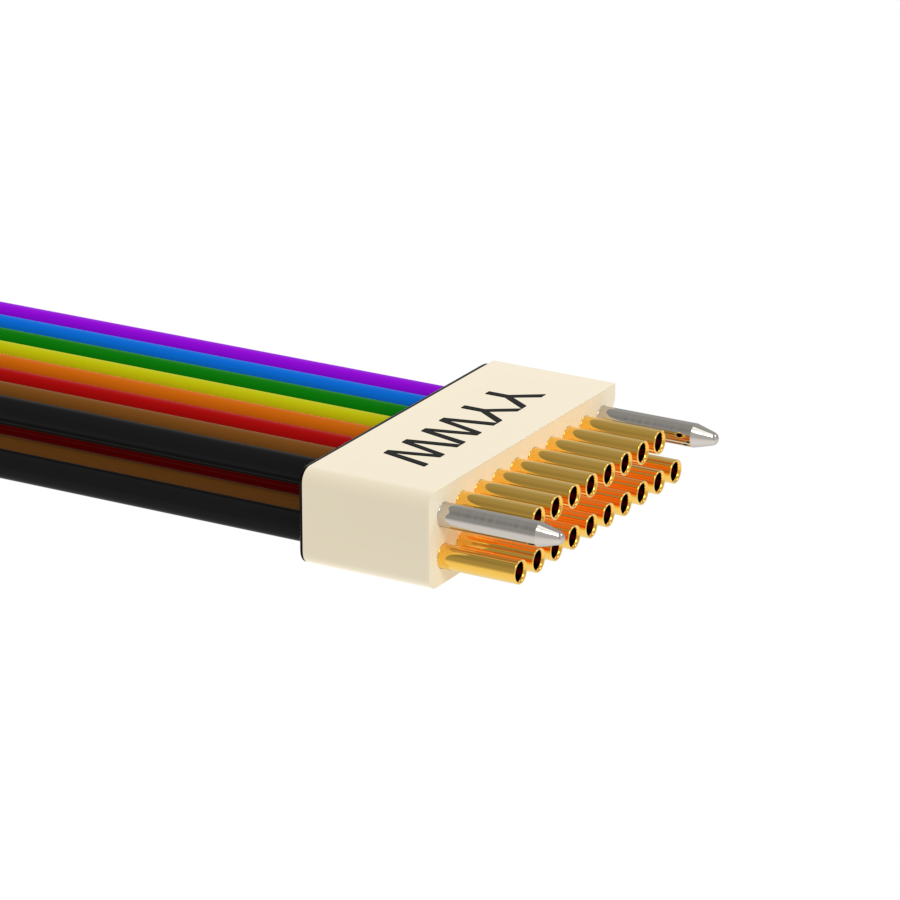

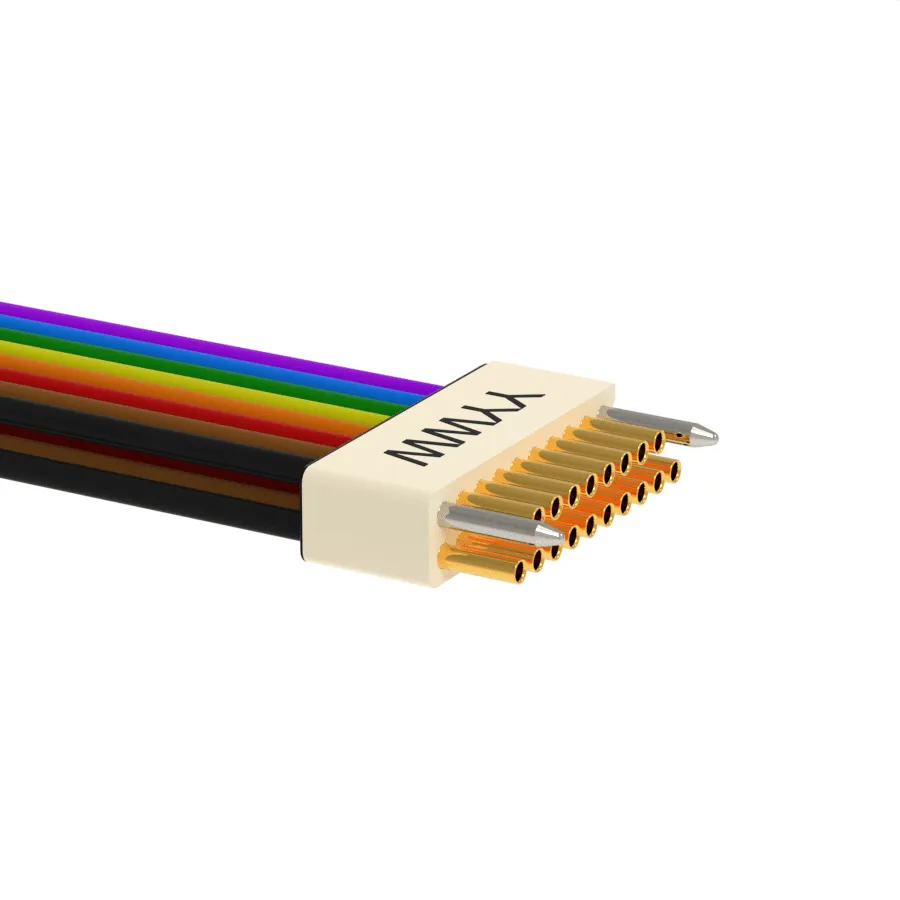

Pre-wired Dual Row Nano Strip connectors are crimped using proprietary semi-automated crimping systems. Due to their small size and precision required to make these quality crimps, hand crimping is not an option. Pre-crimped wires and contacts are potted in place further protecting the integrity of the crimp joint. These connectors are available in standard sizes ranging from 2 through 80 positions as well as custom configurations, and accept wires 32 AWG or smaller stranded wire. Building these parts to order allows for maximum flexibility in wire type, size and color coding. Commercial Off The Shelf (COTS) versions are also available with 18 of color coded 30 AWG Teflon wire for quick turn around. These connectors are available in standard sizes ranging from 2 through 48 positions as well as custom configurations, and accept 30 AWG or smaller stranded wire.
Additional information
| Omnetics Series |
NPD ,NSD |
|---|---|
| Rows |
2 Rows |
| Termination Type |
TW – Twisted Wires ,WC – Cable ,WD – Discrete Leadwire ,WX – Multiple Wire Types |
| Electrical Mechanical Specifications |
– |
| Temperature |
-55ºC to +125ºC (200 ºC w/HTE) |
| Dielectric Withstand Voltage |
250 VAC RMS @ Sea Level |
| Contact Resistance |
71 milliohms max (71 mV max @ 1 AMP) |
| Current Rating |
1 AMP per contact |
| Durability |
200 Cycles |
| Insulation Resistance |
5, 000 Megohms min @ 100 VDC |
| Shock |
100 g's with no discontinuities > 10 nanoseconds |
| Vibration |
20 g's with no discontinuities > 10 nanoseconds |
| Thermal Vacuum Outgassing |
NASA SP-R-0022 |
| Mating/Unmating Force |
Forces not to exceed 7 oz/contact |
| Material Specifications |
– |
| Insulator |
LCP per MIL-M-24519 |
| Socket |
Gold Plated Copper Alloy |
| Encapsulant |
Epoxy |
| Standard Pin PCB Tail Termination |
Solder per J-STD-006 (Non-RoHS) |
| RoHS Pin PCB Tail Termination |
Hard gold plate per ASTM B488 |
| RoHS Socket PCB Tail Termination |
Hard gold plate per ASTM B488 |
Features
Pre-wired Dual Row Nano Strip connectors are crimped using proprietary semi-automated crimping systems. Due to their small size and precision required to make these quality crimps, hand crimping is not an option. Pre-crimped wires and contacts are potted in place further protecting the integrity of the crimp joint. These connectors are available in standard sizes ranging from 2 through 80 positions as well as custom configurations, and accept wires 32 AWG or smaller stranded wire. Building these parts to order allows for maximum flexibility in wire type, size and color coding. Commercial Off The Shelf (COTS) versions are also available with 18” of color coded 30 AWG Teflon wire for quick turn around. These connectors are available in standard sizes ranging from 2 through 48 positions as well as custom configurations, and accept 30 AWG or smaller stranded wire.
Specifications
| Omnetics Series |
NPD ,NSD |
|---|---|
| Rows |
2 Rows |
| Termination Type |
TW – Twisted Wires ,WC – Cable ,WD – Discrete Leadwire ,WX – Multiple Wire Types |
| Electrical Mechanical Specifications |
– |
| Temperature |
-55ºC to +125ºC (200 ºC w/HTE) |
| Dielectric Withstand Voltage |
250 VAC RMS @ Sea Level |
| Contact Resistance |
71 milliohms max (71 mV max @ 1 AMP) |
| Current Rating |
1 AMP per contact |
| Durability |
200 Cycles |
| Insulation Resistance |
5, 000 Megohms min @ 100 VDC |
| Shock |
100 g's with no discontinuities > 10 nanoseconds |
| Vibration |
20 g's with no discontinuities > 10 nanoseconds |
| Thermal Vacuum Outgassing |
NASA SP-R-0022 |
| Mating/Unmating Force |
Forces not to exceed 7 oz/contact |
| Material Specifications |
– |
| Insulator |
LCP per MIL-M-24519 |
| Socket |
Gold Plated Copper Alloy |
| Encapsulant |
Epoxy |
| Standard Pin PCB Tail Termination |
Solder per J-STD-006 (Non-RoHS) |
| RoHS Pin PCB Tail Termination |
Hard gold plate per ASTM B488 |
| RoHS Socket PCB Tail Termination |
Hard gold plate per ASTM B488 |
