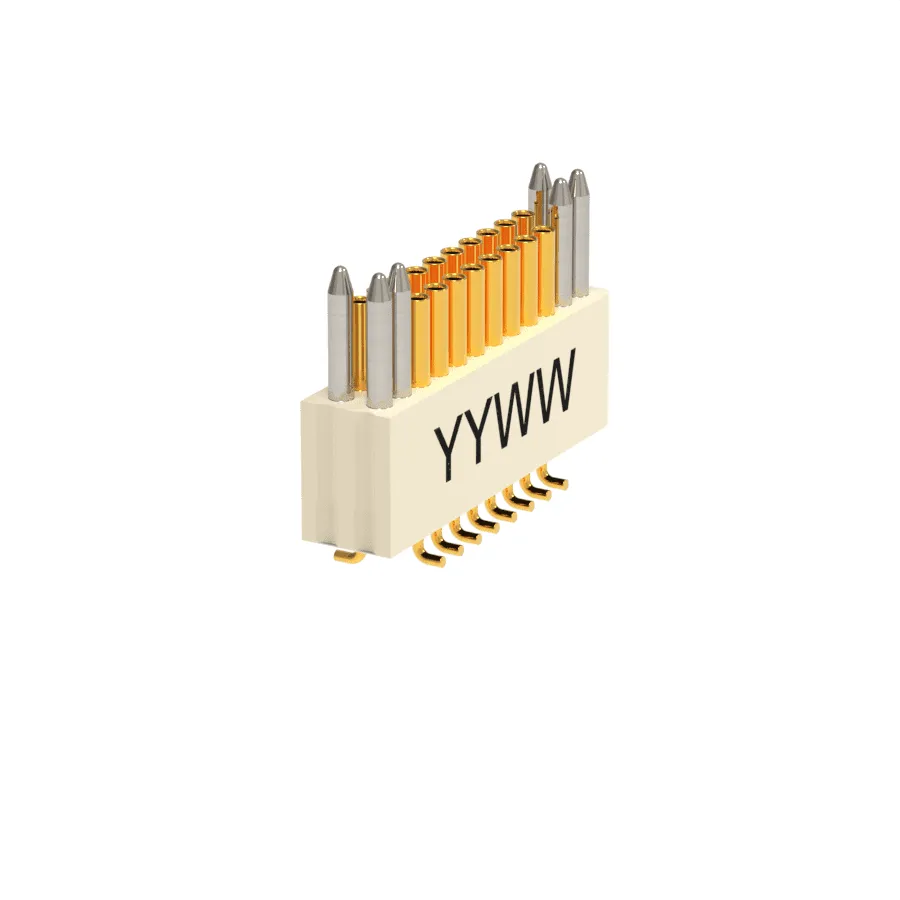

Dual Row Vertical SMT – Type VV
$1.00
Vertical SMT Nano Strip connectors require a minimal amount of board space on flex circuits and rigid circuit boards.
Resources
| Title | Type | File |
| Dual Row Vertical SMT – Type VV Contact | Download | |
| Dual Row Vertical SMT – Type VV Ordering Guide | Download |
Description
Vertical SMT Nano Strip connectors require a minimal amount of board space on flex circuits and rigid circuit boards. These connectors feature Omnetics’ highly reliable gold plated Flex Pin contact system conforming to the requirements of MIL-DTL-32139. These rugged lightweight connectors are suitable for the most demanding applications. These connectors are available in standard sizes ranging from 2 to 80 positions, as well as custom configurations.
Additional information
| Omnetics Series |
NPD ,NSD |
|---|---|
| Rows |
2 Rows |
| Termination Type |
VV – Vertical Surface Mount |
| Electrical Mechanical Specifications |
– |
| Temperature |
-55ºC to +125ºC (200 ºC w/HTE) |
| Dielectric Withstand Voltage |
250 VAC RMS @ Sea Level |
| Contact Resistance |
71 milliohms max (71 mV max @ 1 AMP) |
| Current Rating |
1 AMP per contact |
| Durability |
200 Cycles |
| Insulation Resistance |
5, 000 Megohms min @ 100 VDC |
| Shock |
100 g's with no discontinuities > 10 nanoseconds |
| Vibration |
20 g's with no discontinuities > 10 nanoseconds |
| Thermal Vacuum Outgassing |
NASA SP-R-0022 |
| Mating/Unmating Force |
Forces not to exceed 7 oz/contact |
| Material Specifications |
– |
| Insulator |
LCP per MIL-M-24519 |
| Socket |
Gold Plated Copper Alloy |
| Encapsulant |
Epoxy |
| Standard Pin PCB Tail Termination |
Solder per J-STD-006 (Non-RoHS) |
| RoHS Pin PCB Tail Termination |
Hard gold plate per ASTM B488 |
| RoHS Socket PCB Tail Termination |
Hard gold plate per ASTM B488 |
Features
Vertical SMT Nano Strip connectors require a minimal amount of board space on flex circuits and rigid circuit boards. These connectors feature Omnetics’ highly reliable gold plated Flex Pin contact system conforming to the requirements of MIL-DTL-32139. These rugged lightweight connectors are suitable for the most demanding applications. These connectors are available in standard sizes ranging from 2 to 80 positions, as well as custom configurations.
Specifications
| Omnetics Series |
NPD ,NSD |
|---|---|
| Rows |
2 Rows |
| Termination Type |
VV – Vertical Surface Mount |
| Electrical Mechanical Specifications |
– |
| Temperature |
-55ºC to +125ºC (200 ºC w/HTE) |
| Dielectric Withstand Voltage |
250 VAC RMS @ Sea Level |
| Contact Resistance |
71 milliohms max (71 mV max @ 1 AMP) |
| Current Rating |
1 AMP per contact |
| Durability |
200 Cycles |
| Insulation Resistance |
5, 000 Megohms min @ 100 VDC |
| Shock |
100 g's with no discontinuities > 10 nanoseconds |
| Vibration |
20 g's with no discontinuities > 10 nanoseconds |
| Thermal Vacuum Outgassing |
NASA SP-R-0022 |
| Mating/Unmating Force |
Forces not to exceed 7 oz/contact |
| Material Specifications |
– |
| Insulator |
LCP per MIL-M-24519 |
| Socket |
Gold Plated Copper Alloy |
| Encapsulant |
Epoxy |
| Standard Pin PCB Tail Termination |
Solder per J-STD-006 (Non-RoHS) |
| RoHS Pin PCB Tail Termination |
Hard gold plate per ASTM B488 |
| RoHS Socket PCB Tail Termination |
Hard gold plate per ASTM B488 |
