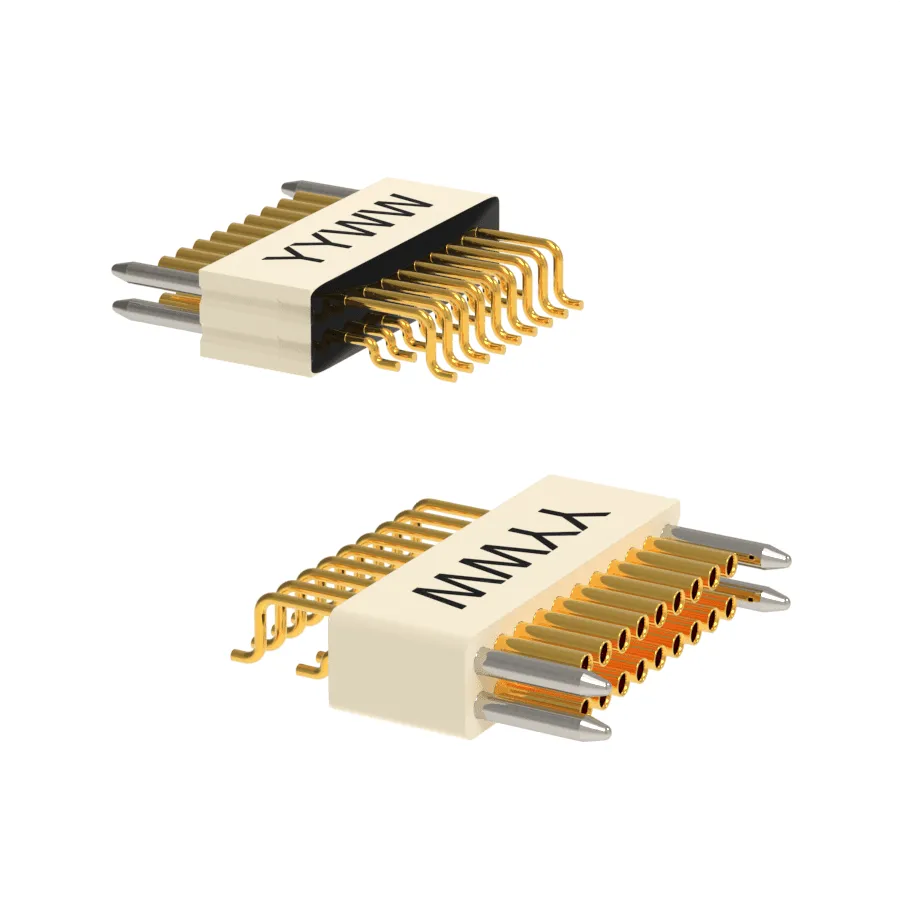

Dual Row Horizontal SMT – Type AA
Dual Row Horizontal Nano Strip connectors offer an extremely low profile package that is well suited for pick and place methods.
Resources
| Title | Type | File |
| Dual Row Horizontal SMT – Type AA Contact | Download | |
| Dual Row Horizontal SMT – Type AA Ordering Guide | Download |
Description
Dual Row Horizontal Nano Strip connectors offer an extremely low profile package that is well suited for pick and place methods. They have a very tight pitch of .025” (.64 mm) centerlines. These connectors feature Omnetics’ highly reliable gold plated Flex Pin contact system, conforming to the requirements of MIL-DTL-32139. These durable lightweight connectors are perfect for the most demanding applications. These connectors are available in standard sizes ranging from 2 to 80 positions, as well as custom configurations.
Additional information
| Omnetics Series | NPD, NSD |
|---|---|
| Rows | 2 Rows |
| Termination Type | AA – Horizontal Surface Mount |
| Electrical Mechanical Specifications | – |
| Temperature | -55ÂşC to +125ÂşC (200 ÂşC w/HTE) |
| Dielectric Withstand Voltage | 250 VAC RMS @ Sea Level |
| Contact Resistance | 71 milliohms max (71 mV max @ 1 AMP) |
| Current Rating | 1 AMP per contact |
| Durability | 200 Cycles |
| Insulation Resistance | 5, 000 Megohms min @ 100 VDC |
| Shock | 100 g’s with no discontinuities > 10 nanoseconds |
| Vibration | 20 g’s with no discontinuities > 10 nanoseconds |
| Thermal Vacuum Outgassing | NASA SP-R-0022 |
| Mating/Unmating Force | Forces not to exceed 7 oz/contact |
| Material Specifications | – |
| Insulator | LCP per MIL-M-24519 |
| Socket | Gold Plated Copper Alloy |
| Encapsulant | Epoxy |
| Standard Pin PCB Tail Termination | Solder per J-STD-006 (Non-RoHS) |
| RoHS Pin PCB Tail Termination | Hard gold plate per ASTM B488 |
| RoHS Socket PCB Tail Termination | Hard gold plate per ASTM B488 |
Features
Dual Row Horizontal Nano Strip connectors offer an extremely low profile package that is well suited for pick and place methods. They have a very tight pitch of .025” (.64 mm) centerlines. These connectors feature Omnetics’ highly reliable gold plated Flex Pin contact system, conforming to the requirements of MIL-DTL-32139. These durable lightweight connectors are perfect for the most demanding applications. These connectors are available in standard sizes ranging from 2 to 80 positions, as well as custom configurations.
Specifications
| Omnetics Series | NPD, NSD |
|---|---|
| Rows | 2 Rows |
| Termination Type | AA – Horizontal Surface Mount |
| Electrical Mechanical Specifications | – |
| Temperature | -55ÂşC to +125ÂşC (200 ÂşC w/HTE) |
| Dielectric Withstand Voltage | 250 VAC RMS @ Sea Level |
| Contact Resistance | 71 milliohms max (71 mV max @ 1 AMP) |
| Current Rating | 1 AMP per contact |
| Durability | 200 Cycles |
| Insulation Resistance | 5, 000 Megohms min @ 100 VDC |
| Shock | 100 g’s with no discontinuities > 10 nanoseconds |
| Vibration | 20 g’s with no discontinuities > 10 nanoseconds |
| Thermal Vacuum Outgassing | NASA SP-R-0022 |
| Mating/Unmating Force | Forces not to exceed 7 oz/contact |
| Material Specifications | – |
| Insulator | LCP per MIL-M-24519 |
| Socket | Gold Plated Copper Alloy |
| Encapsulant | Epoxy |
| Standard Pin PCB Tail Termination | Solder per J-STD-006 (Non-RoHS) |
| RoHS Pin PCB Tail Termination | Hard gold plate per ASTM B488 |
| RoHS Socket PCB Tail Termination | Hard gold plate per ASTM B488 |
