Description

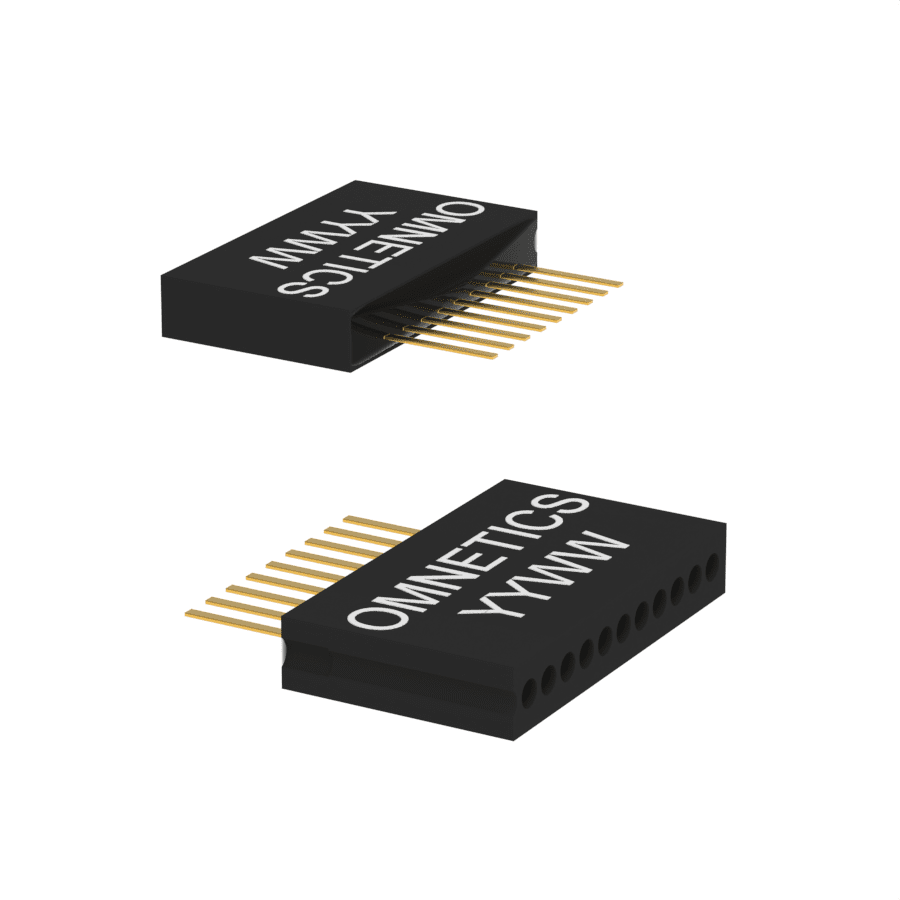

Single Row Nano Strip connectors can be loaded with simple straight tails (Integral or Crimped). Suitable for vertical thru-hole mounting to fine pitched flex circuits, they are designed on .025” (.64 mm) centerlines. The straight solid tails are also commonly used in ultra fine wire wrap terminations, such as electrophysiology. These connectors feature Omnetics’ highly reliable gold plated Flex Pin contact system conforming to the requirements of MIL-DTL-32139. These connectors are available in standard sizes ranging from 2 through 60 positions as well as custom configurations. Flex design and installation service is also available from Omnetics. Please contact us for more information.
Additional information
| Omnetics Series | NPS, NSS |
|---|---|
| Rows | 1 Row |
| Termination Type | DD – Thru-Hole Straight |
| Electrical Mechanical Specifications | – |
| Temperature | -55ÂşC to +125ÂşC (200 ÂşC w/HTE) |
| Dielectric Withstand Voltage | 250 VAC RMS Sea Level |
| Contact Resistance | 71 milliohms max (71 mV max @ 1 AMP) |
| Current Rating | 1 AMP per contact |
| Durability | 200 Cycles |
| Insulation Resistance | 5, 000 Megohms min @ 100 VDC |
| Shock | 100 g’s with no discontinuities > 10 nanoseconds |
| Vibration | 20 g’s with no discontinuities > 10 nanoseconds |
| Thermal Vacuum Outgassing | NASA SP-R-0022 |
| Mating/Unmating Force | Forces not to exceed 7 oz/contact |
| Material Specifications | – |
| Insulator | LCP per MIL-M-24519 |
| Socket | Gold Plated Copper Alloy |
| Pin | Beryllium Copper per ASTM B194 and Gold Plated per ASTM B488 |
| Encapsulant | Epoxy |
| Standard Pin PCB Tail Termination | Solder per J-STD-006 (Non-RoHS) |
| RoHS Pin PCB Tail Termination | Hard gold plate per ASTM B488 |
| RoHS Socket PCB Tail Termination | Hard gold plate per ASTM B488 |
Features
Single Row Nano Strip connectors can be loaded with simple straight tails (Integral or Crimped). Suitable for vertical thru-hole mounting to fine pitched flex circuits, they are designed on .025” (.64 mm) centerlines. The straight solid tails are also commonly used in ultra fine wire wrap terminations, such as electrophysiology. These connectors feature Omnetics’ highly reliable gold plated Flex Pin contact system conforming to the requirements of MIL-DTL-32139. These connectors are available in standard sizes ranging from 2 through 60 positions as well as custom configurations. Flex design and installation service is also available from Omnetics. Please contact us for more information.
Specifications
| Omnetics Series | NPS, NSS |
|---|---|
| Rows | 1 Row |
| Termination Type | DD – Thru-Hole Straight |
| Electrical Mechanical Specifications | – |
| Temperature | -55ÂşC to +125ÂşC (200 ÂşC w/HTE) |
| Dielectric Withstand Voltage | 250 VAC RMS Sea Level |
| Contact Resistance | 71 milliohms max (71 mV max @ 1 AMP) |
| Current Rating | 1 AMP per contact |
| Durability | 200 Cycles |
| Insulation Resistance | 5, 000 Megohms min @ 100 VDC |
| Shock | 100 g’s with no discontinuities > 10 nanoseconds |
| Vibration | 20 g’s with no discontinuities > 10 nanoseconds |
| Thermal Vacuum Outgassing | NASA SP-R-0022 |
| Mating/Unmating Force | Forces not to exceed 7 oz/contact |
| Material Specifications | – |
| Insulator | LCP per MIL-M-24519 |
| Socket | Gold Plated Copper Alloy |
| Pin | Beryllium Copper per ASTM B194 and Gold Plated per ASTM B488 |
| Encapsulant | Epoxy |
| Standard Pin PCB Tail Termination | Solder per J-STD-006 (Non-RoHS) |
| RoHS Pin PCB Tail Termination | Hard gold plate per ASTM B488 |
| RoHS Socket PCB Tail Termination | Hard gold plate per ASTM B488 |
