Dual Row Offset Solder Cup (SS)
$1.00

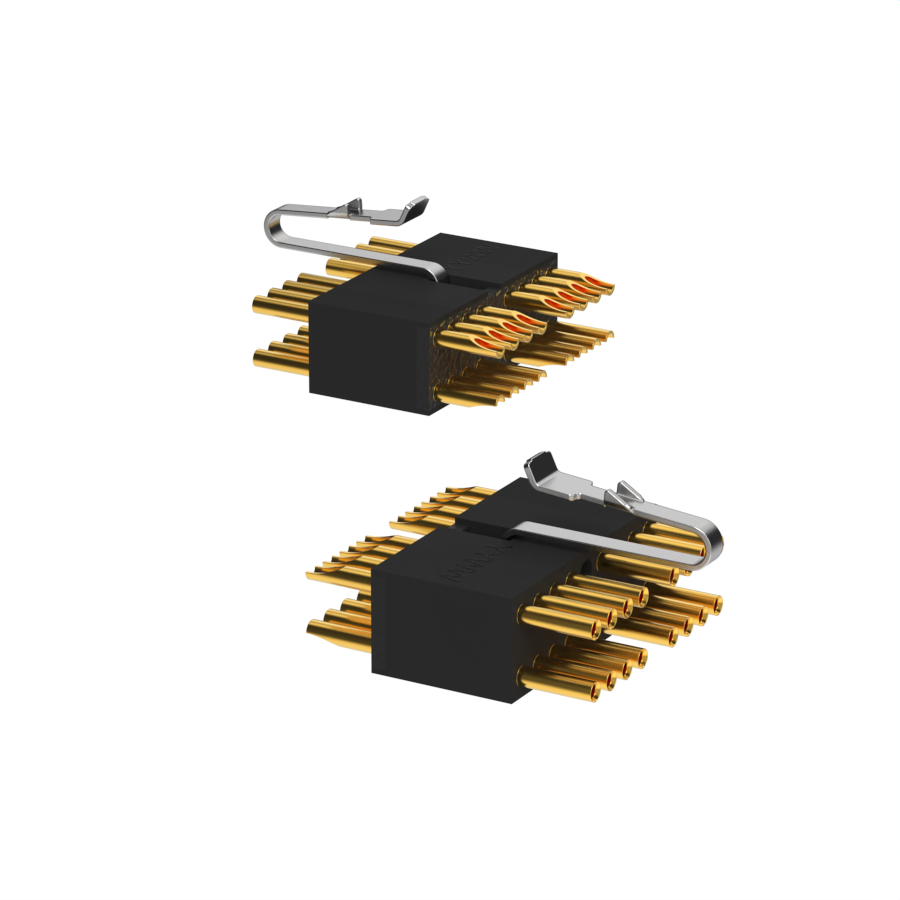

The soldercup tails are commonly used for hand soldering applications, and or specific wire based devices that require a small robust connector during one of the final phases of production.
Resources
| Title | Type | File |
| Dual Row Offset Solder Cup (SS) Contact | Download | |
| Dual Row Offset Solder Cup (SS) Ordering Guide | Download |
Description
The soldercup tails are commonly used for hand soldering applications, and or specific wire based devices that require a small robust connector during one of the final phases of production. Whatever your application, these connectors feature Omnetics’ gold plated Flex Pin contact system which meets the performance specifications of MIL-DTL-83513. These connectors are available with mounting holessuitable for PCB and flex mounting. These connectors are available in standard sizes ranging from 2 through 97 positions as well as custom configurations, and accept 26 AWG or smaller stranded wire.
Additional information
| Omnetics Series | PSM, SSO |
|---|---|
| Rows | 2 Rows |
| Termination Type | SS – Soldercup |
| Electrical Mechanical Specifications | – |
| Temperature | -55ÂşC to +125ÂşC (200 ÂşC w/HTE) |
| Dielectric Withstand Voltage | 600 VAC RMS Sea Level |
| Contact Resistance | 26 milliohms (65 mV max @ 2.5 AMPs) |
| Current Rating | 3 AMPs per contact |
| Durability | 500 Cycles |
| Insulation Resistance | 5, 000 Megohms min @ 500 VDC |
| Shock | 50 gÂ’s with no discontinuities > 1 microsecond |
| Vibration | 20 gÂ’s with no discontinuities > 1 microsecond |
| Thermal Vacuum Outgassing | NASA SP-R-0022 |
| Mating/Unmating Force | Forces not to exceed 6 oz/contact |
| Material Specifications | – |
| Insulator | Polyphenylene Sulfide per MIL-M-24519 |
| Socket | Gold Plated Copper Alloy |
| Encapsulant | Epoxy |
| Standard Pin PCB Tail Termination | Solder per J-STD-006 (Non-RoHS) or ASTM P-81728 |
| RoHS Pin PCB Tail Termination | Hard gold plate per ASTM B488 |
| RoHS Socket PCB Tail Termination | Hard gold plate per ASTM B488 |
Features
The soldercup tails are commonly used for hand soldering applications, and or specific wire based devices that require a small robust connector during one of the final phases of production. Whatever your application, these connectors feature Omnetics’ gold plated Flex Pin contact system which meets the performance specifications of MIL-DTL-83513. These connectors are available with mounting holessuitable for PCB and flex mounting. These connectors are available in standard sizes ranging from 2 through 97 positions as well as custom configurations, and accept 26 AWG or smaller stranded wire.
