Description

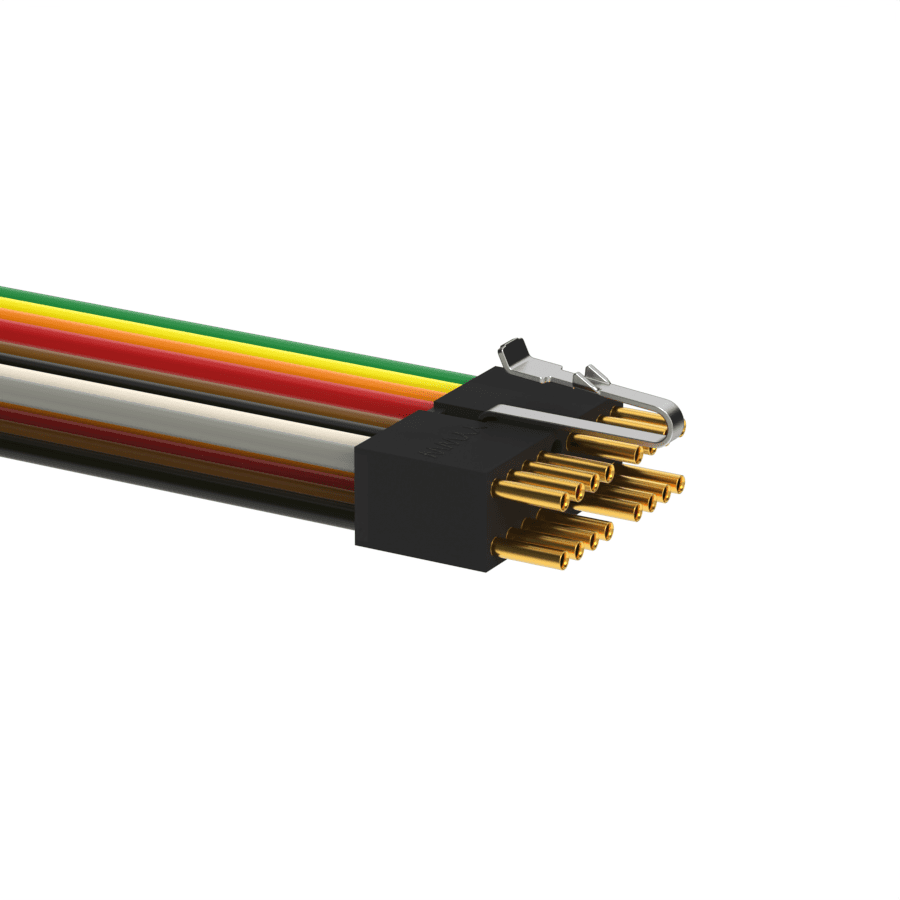

Pre-wired offset Dual Row Micro Strip connectors are available with 26 AWG and smaller stranded wire. These assemblies are crimped using proprietary semi-automated crimping systems. Due to the small size and precision required to make these quality crimps, hand crimping is not an option. Pre-crimped wires and contacts are potted in place, further protecting the integrity of the crimp joint. Building these parts to order allows for maximum flexibility in wire type, size and color coding. Commercial off the shelf (COTS) versions are also available with 18” of color coded 26 AWG Teflon for quick turn around. These connectors are available in standard sizes ranging from 2 through 97 positions as well as custom configurations.
Additional information
| Omnetics Series | PSM, SSO |
|---|---|
| Rows | 2 Rows |
| Termination Type | TW – Twisted Wires, WC – Cable, WD – Discrete Leadwire, WX – Multiple Wire Types |
| Electrical Mechanical Specifications | – |
| Temperature | -55ÂşC to +125ÂşC (200 ÂşC w/HTE) |
| Dielectric Withstand Voltage | 600 VAC RMS Sea Level |
| Contact Resistance | 26 milliohms (65 mV max @ 2.5 AMPs) |
| Current Rating | 3 AMPs per contact |
| Durability | 500 Cycles |
| Insulation Resistance | 5, 000 Megohms min @ 500 VDC |
| Shock | 50 gÂ’s with no discontinuities > 1 microsecond |
| Vibration | 20 gÂ’s with no discontinuities > 1 microsecond |
| Thermal Vacuum Outgassing | NASA SP-R-0022 |
| Mating/Unmating Force | Forces not to exceed 6 oz/contact |
| Material Specifications | – |
| Insulator | Polyphenylene Sulfide per MIL-M-24519 |
| Socket | Gold Plated Copper Alloy |
| Encapsulant | Epoxy |
| Standard Pin PCB Tail Termination | Solder per J-STD-006 (Non-RoHS) or ASTM P-81728 |
| RoHS Pin PCB Tail Termination | Hard gold plate per ASTM B488 |
| RoHS Socket PCB Tail Termination | Hard gold plate per ASTM B488 |
Features
Pre-wired offset Dual Row Micro Strip connectors are available with 26 AWG and smaller stranded wire. These assemblies are crimped using proprietary semi-automated crimping systems. Due to the small size and precision required to make these quality crimps, hand crimping is not an option. Pre-crimped wires and contacts are potted in place, further protecting the integrity of the crimp joint. Building these parts to order allows for maximum flexibility in wire type, size and color coding. Commercial off the shelf (COTS) versions are also available with 18” of color coded 26 AWG Teflon for quick turn around. These connectors are available in standard sizes ranging from 2 through 97 positions as well as custom configurations.
Specifications
| Omnetics Series | PSM, SSO |
|---|---|
| Rows | 2 Rows |
| Termination Type | TW – Twisted Wires, WC – Cable, WD – Discrete Leadwire, WX – Multiple Wire Types |
| Electrical Mechanical Specifications | – |
| Temperature | -55ÂşC to +125ÂşC (200 ÂşC w/HTE) |
| Dielectric Withstand Voltage | 600 VAC RMS Sea Level |
| Contact Resistance | 26 milliohms (65 mV max @ 2.5 AMPs) |
| Current Rating | 3 AMPs per contact |
| Durability | 500 Cycles |
| Insulation Resistance | 5, 000 Megohms min @ 500 VDC |
| Shock | 50 gÂ’s with no discontinuities > 1 microsecond |
| Vibration | 20 gÂ’s with no discontinuities > 1 microsecond |
| Thermal Vacuum Outgassing | NASA SP-R-0022 |
| Mating/Unmating Force | Forces not to exceed 6 oz/contact |
| Material Specifications | – |
| Insulator | Polyphenylene Sulfide per MIL-M-24519 |
| Socket | Gold Plated Copper Alloy |
| Encapsulant | Epoxy |
| Standard Pin PCB Tail Termination | Solder per J-STD-006 (Non-RoHS) or ASTM P-81728 |
| RoHS Pin PCB Tail Termination | Hard gold plate per ASTM B488 |
| RoHS Socket PCB Tail Termination | Hard gold plate per ASTM B488 |
