Omnetics Connector Corp.

|

Click to enlarge
Home Connectors Nano-D Dual Row Connector Savers
Nano-D / Bi-Lobe® Single Row MIL-DTL-32139 QPL
Nano-D / Bi-Lobe® Single Row MIL-DTL-32139 QPL $1.00
Back to products
A98003-512
A98003-512 $1.00

Dual Row Connector Savers

$1.00

Omnetics Bi-Lobe® connectors are rated for 200+ mating cycles, however, many applications carry their own restrictions as to how many times a connector may be mated and unmated during programming, test and burn-in.

Resources

Title Type File
Dual Row Connector Savers Contact PDF Download
Dual Row Connector Savers Hardware & Misc. PDF Download
Compare
Categories: All Products, Connectors, Dual Row Nano-D, Nano-D Tags: Dual Row Nano-D, Nano-D
Share:
  • Description
  • Additional information
  • Features
  • Specifications
  • Resources
  • Accessories
  • Related

Description

Omnetics Bi-Lobe® connectors are rated for 200+ mating cycles, however, many applications carry their own restrictions as to how many times a connector may be mated and unmated during programming, test and burn-in.

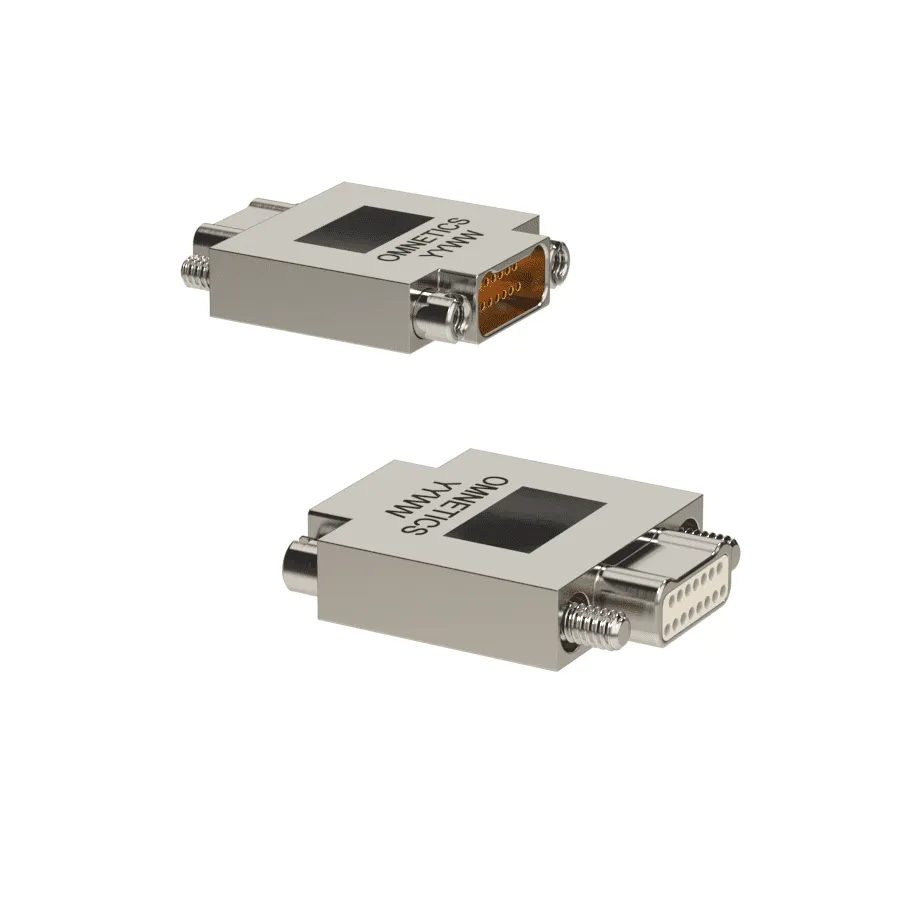

To support these requirements, Omnetics offers a “Connector Saver” which can be mated to the corresponding connector on the sensitive equipment. They utilize the same rugged and reliable Flex Pin contact system. Spaced on 25 mil (.64mm) centerlines, they are capable of carrying 1 amp per contact.

Bi-Lobe® “Connector Savers” are available in pin counts from 9-65

Additional information

Omnetics Series

MNPZ

Rows

2 Rows

Electrical Mechanical Specifications

–

Temperature

-55ºC to +125ºC (200 ºC w/HTE)

Dielectric Withstand Voltage

250 VAC RMS Sea Level

Contact Resistance

71 mV Drop @ 1 AMP

Current Rating

1 AMP per contact

Durability

200 Mating cycles min*

Insulation Resistance

5000 megohms min @ 100 VDC

Shock

100 g’s with no discontinuties > 10 nanoseconds

Vibration

20 g’s with no discontinuties > 10 nanoseconds

Thermal Vacuum Outgassing

1.0% max TML, 0.1% max VCM

Mating/Unmating Force

7 oz. (198 g) max per contact

Material Specifications

–

Shell Material and Finish

Aluminum Shell, Electroless Nickel Plated Aluminum Shell, Black AnodizedAluminum Shell, Cadmium PlatedTitanium Shell, UnplatedStainless Steel Shell, Passivated

Insulator

Liquid Crystal Polymer per MIL-DTL-32139 or PEEK

Pin

Gold Plated BeCu

Socket

Gold Plated Copper Alloy

Encapsulant

Epoxy

Features

Omnetics Bi-Lobe® connectors are rated for 200+ mating cycles, however, many applications carry their own restrictions as to how many times a connector may be mated and unmated during programming, test and burn-in.

To support these requirements, Omnetics offers a “Connector Saver” which can be mated to the corresponding connector on the sensitive equipment. They utilize the same rugged and reliable Flex Pin contact system. Spaced on 25 mil (.64mm) centerlines, they are capable of carrying 1 amp per contact.

Bi-Lobe® “Connector Savers” are available in pin counts from 9-65

Specifications

Omnetics Series

MNPZ

Rows

2 Rows

Electrical Mechanical Specifications

–

Temperature

-55ºC to +125ºC (200 ºC w/HTE)

Dielectric Withstand Voltage

250 VAC RMS Sea Level

Contact Resistance

71 mV Drop @ 1 AMP

Current Rating

1 AMP per contact

Durability

200 Mating cycles min*

Insulation Resistance

5000 megohms min @ 100 VDC

Shock

100 g’s with no discontinuties > 10 nanoseconds

Vibration

20 g’s with no discontinuties > 10 nanoseconds

Thermal Vacuum Outgassing

1.0% max TML, 0.1% max VCM

Mating/Unmating Force

7 oz. (198 g) max per contact

Material Specifications

–

Shell Material and Finish

Aluminum Shell, Electroless Nickel Plated Aluminum Shell, Black AnodizedAluminum Shell, Cadmium PlatedTitanium Shell, UnplatedStainless Steel Shell, Passivated

Insulator

Liquid Crystal Polymer per MIL-DTL-32139 or PEEK

Pin

Gold Plated BeCu

Socket

Gold Plated Copper Alloy

Encapsulant

Epoxy

Resources

Title Type File
Dual Row Connector Savers Contact PDF Download
Dual Row Connector Savers Hardware & Misc. PDF Download
