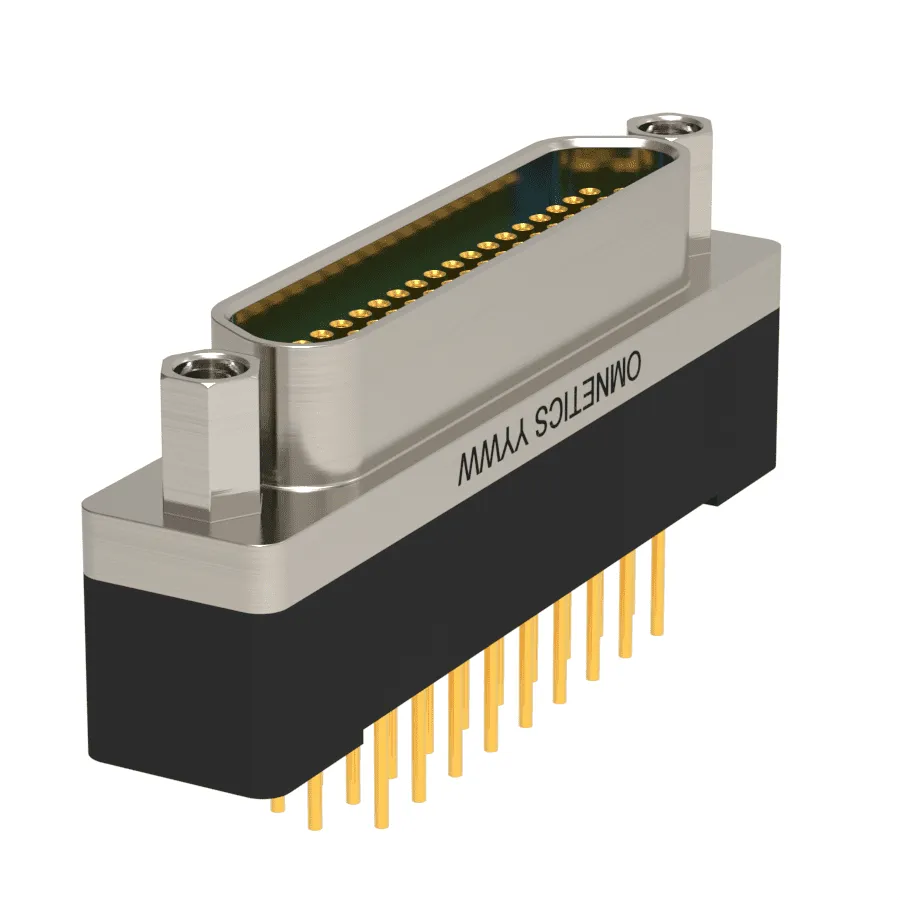

Omnetics Micro-D Standard Vertical Board Mount connectors offer the traditional .075 inch terminal spacing design.
Title | Type | File |
Vertical Board Mount .075 (SV7) Contact | Download | |
Vertical Board Mount .075 (SV7) Ordering Guide | Download | |
Vertical Board Mount .075 (SV7) Hardware & Misc. | Download |
Omnetics Micro-D Standard Vertical Board Mount connectors offer the traditional .075 inch terminal spacing design. These high-reliability connectors meet or exceed the shock and vibration requirements of MIL-DTL-83513 and utilize the rugged Omnetics flex pin contact.
Omnetics Series |
MMDP ,MMDS |
---|---|
Rows |
2 Rows |
Termination Type |
SV7 – Standard Vertical Board Mount .075 |
Electrical Mechanical Specifications |
– |
Temperature |
-55ºC to +125ºC (200 ºC w/HTE) |
Dielectric Withstand Voltage |
600 VAC RMS @sea level |
Contact Resistance |
26 milliohms max (65 mV drop) @ 2.5 AMPS |
Current Rating |
3 AMPS per contact |
Durability |
2\,000 Mating Cycles min |
Insulation Resistance |
5000 Meg ohms @ 500 VDC |
Shock |
50 g's with no discontinuities > 1 microsecond |
Vibration |
20 g's with no discontinuities > 1 microsecond |
Thermal Vacuum Outgassing |
1.0% max TML\, 0.03% CVCM – NASA SP-R-0022 |
Mating/Unmating Force |
3 oz (85 g) typical per contact |
Material Specifications |
– |
Contact |
Copper Alloy per MIL-DTL-83513 |
Contact Finish |
Gold per ASTM B488\, Type II\, Class 1.27\, Code C Over Nickel Underplate |
Insulator |
Thermoplastic per MIL-DTL-83513 |
Interfacial Seal |
Fluorosilicone Elastomer per A-A-59588 |
Hardware |
Stainless Steel\, 300 Series\, Passivated per SAE AMS-2700 |
Shell Options |
– |
Aluminum Shell, Electroless Nickel Plated |
Alloy 6061 per SAE AMS-QQ-A-200/8 or ASTMB221 Nickel per SAE AMS-2404 |
Aluminum Shell, Cadmium Plated |
Alloy 6061 per SAE AMS-QQ-A-200/8\, Cadmium with Yellow Chromate Conversion per SAE-AMS-QQ-P-416\, Type II\, Class 3 Over Nickel Underplate |
Aluminum Shell, Black Anodized |
Alloy 6061 per SAE AMS-QQ-A-200/8 or ASTMB221 Black Anodize per MIL-A-8625\, Type II\, Class 2 |
Stainless Steel Shell, Passivated |
300 Series\, Passivated per SAE AMS-2700 |
