Description

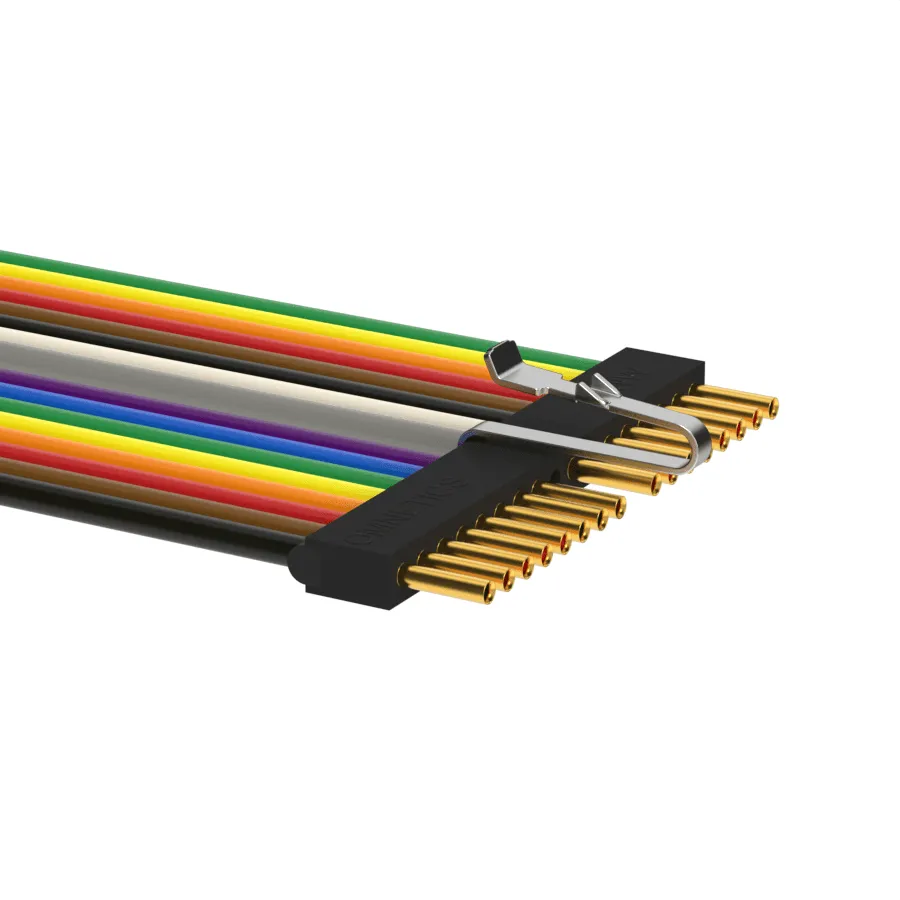

Pre-wired Single Row Nano Strip connectors are available with 30 AWG or smaller stranded wire. These assemblies are crimped using proprietary semi-automated crimping systems. Due to their small size and precision required to make these quality crimps, hand crimping is not an option. Precrimped wires and contacts are potted in place further protecting the integrity of the crimp joint. Building these parts to order allows for maximum flexibility in wire type, size and color coding. These connectors are available in standard sizes ranging from 2 through 60 positions as well as custom configurations, and accept wires 30 AWG or smaller stranded wire.

Additional information

Omnetics Series

NPS

,

NSS

Rows

1 Row

Termination Type

TW – Twisted Wires

,

WC – Cable

,

WD – Discrete Leadwire

,

WX – Multiple Wire Types

Electrical Mechanical Specifications

–

Temperature

-55ºC to +125ºC (200 ºC w/HTE)

Dielectric Withstand Voltage

250 VAC RMS Sea Level

Contact Resistance

71 milliohms max (71 mV max @ 1 AMP)

Current Rating

1 AMP per contact

Durability

200 Cycles

Insulation Resistance

5, 000 Megohms min @ 100 VDC

Shock

100 g's with no discontinuities > 10 nanoseconds

Vibration

20 g's with no discontinuities > 10 nanoseconds

Thermal Vacuum Outgassing

NASA SP-R-0022

Mating/Unmating Force

Forces not to exceed 7 oz/contact

Material Specifications

–

Insulator

LCP per MIL-M-24519

Socket

Gold Plated Copper Alloy

Pin

Beryllium Copper per ASTM B194 and Gold Plated per ASTM B488

Encapsulant

Epoxy

Standard Pin PCB Tail Termination

Solder per J-STD-006 (Non-RoHS)

RoHS Pin PCB Tail Termination

Hard gold plate per ASTM B488

RoHS Socket PCB Tail Termination

Hard gold plate per ASTM B488

Features

Pre-wired Single Row Nano Strip connectors are available with 30 AWG or smaller stranded wire. These assemblies are crimped using proprietary semi-automated crimping systems. Due to their small size and precision required to make these quality crimps, hand crimping is not an option. Precrimped wires and contacts are potted in place further protecting the integrity of the crimp joint. Building these parts to order allows for maximum flexibility in wire type, size and color coding. These connectors are available in standard sizes ranging from 2 through 60 positions as well as custom configurations, and accept wires 30 AWG or smaller stranded wire.

Specifications

Omnetics Series

NPS

,

NSS

Rows

1 Row

Termination Type

TW – Twisted Wires

,

WC – Cable

,

WD – Discrete Leadwire

,

WX – Multiple Wire Types

Electrical Mechanical Specifications

–

Temperature

-55ºC to +125ºC (200 ºC w/HTE)

Dielectric Withstand Voltage

250 VAC RMS Sea Level

Contact Resistance

71 milliohms max (71 mV max @ 1 AMP)

Current Rating

1 AMP per contact

Durability

200 Cycles

Insulation Resistance

5, 000 Megohms min @ 100 VDC

Shock

100 g's with no discontinuities > 10 nanoseconds

Vibration

20 g's with no discontinuities > 10 nanoseconds

Thermal Vacuum Outgassing

NASA SP-R-0022

Mating/Unmating Force

Forces not to exceed 7 oz/contact

Material Specifications

–

Insulator

LCP per MIL-M-24519

Socket

Gold Plated Copper Alloy

Pin

Beryllium Copper per ASTM B194 and Gold Plated per ASTM B488

Encapsulant

Epoxy

Standard Pin PCB Tail Termination

Solder per J-STD-006 (Non-RoHS)

RoHS Pin PCB Tail Termination

Hard gold plate per ASTM B488

RoHS Socket PCB Tail Termination

Hard gold plate per ASTM B488
