Description

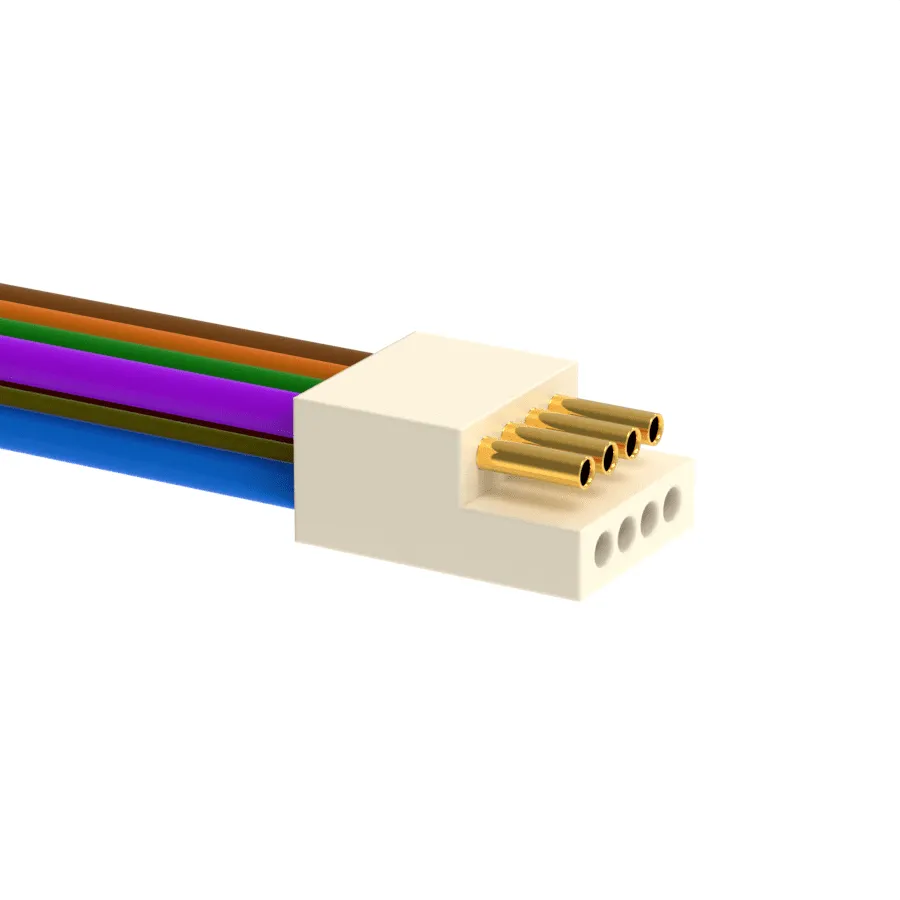

The Polarized Nano series is the most compact arrangement yet coming out of Omnetics Connector Corporation. The insulators are designed to hold one row of pins and one row of sockets. This configuration effectively polarizes the connector without the additional space required for guide pins.
The .025″ (.64 mm) spacing and mil quality, gold plated contact system makes this one of the smallest Hi-Rel connectors on the market today. The Polarized nano series is available in 4 to 24 position sizes.
Termination options include: Pre-Wiring, Straight tail, Horizontal SMT, and Vertical SMT.
Additional information
| Omnetics Series | PZN |
|---|---|
| Rows | 1 Row |
| Termination Type | TW – Twisted Wires, WC – Cable, WD – Discrete Leadwire, WX – Multiple Wire Types |
| Electrical Mechanical Specifications | – |
| Temperature | -55ºC to +125ºC (200 ºC w/HTE) |
| Dielectric Withstand Voltage | 250 VAC RMS @ Sea Level |
| Contact Resistance | 71 milliohms max (71 mV max @ 1 AMP) |
| Current Rating | 1 AMP per contact |
| Durability | 200 Cycles |
| Insulation Resistance | 5, 000 Megohms min @ 100 VDC |
| Shock | 100 g’s with no discontinuities > 10 nanoseconds |
| Vibration | 20 g’s with no discontinuities > 10 nanoseconds |
| Thermal Vacuum Outgassing | NASA SP-R-0022 |
| Mating/Unmating Force | 2.5 oz (71 g) typical per contact |
| Material Specifications | – |
| Insulator | LCP per ASTM D5138 |
| Socket | Gold Plated Copper Alloy |
| Encapsulant | Epoxy |
| Standard Pin PCB Tail Termination | Solder per J-STD-006 (Non-RoHS) |
| RoHS Pin PCB Tail Termination | Hard gold plate per ASTM B488 |
| RoHS Socket PCB Tail Termination | Hard gold plate per ASTM B488 |
