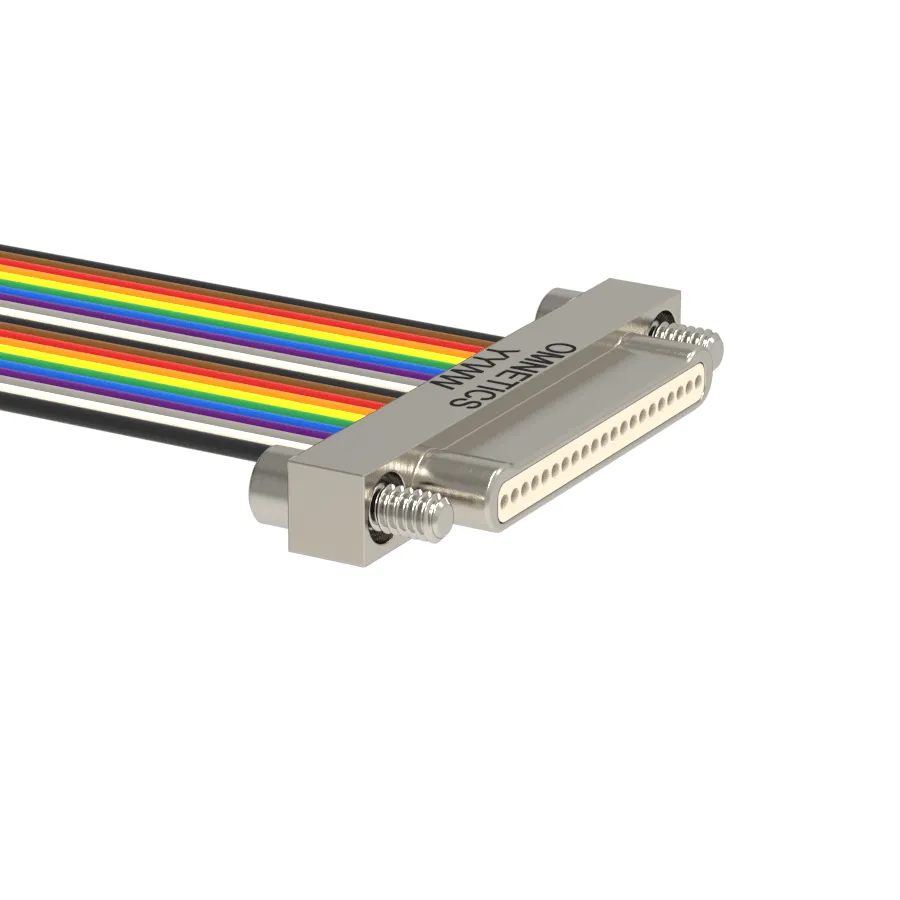

Nano-D / Bi-Lobe® Single Row MIL-DTL-32139 QPL
$1.00
Pre-Wired Single Row Bi-Lobe® nanos can be ordered with full QPL approval. These assemblies are crimped using proprietary automated crimping systems in Omnetics MIL-STD-790 approved manufacturing facility pre-crimped wires & contacts are potted in place further protecting the integrity of the crimp joint.
Resources
| Title | Type | File |
| Nano-D / Bi-Lobe® Single Row MIL-DTL-32139 QPL Contact | Download | |
| Nano-D / Bi-Lobe® Single Row MIL-DTL-32139 QPL Ordering Guide | Download | |
| Nano-D / Bi-Lobe® Single Row MIL-DTL-32139 QPL Hardware & Misc. | Download |
Description
Pre-Wired Single Row Bi-Lobe® nanos can be ordered with full QPL approval. These assemblies are crimped using proprietary automated crimping systems in Omnetics MIL-STD-790 approved manufacturing facility pre-crimped wires & contacts are potted in place further protecting the integrity of the crimp joint.
Building these as full QPL parts gives users an added level of confidence of critical applications.
Commercial off the shelf(COTS) non-QPL versions are also available with 18″ of color coded 30 AWG Teflon for quick turn around.
These connectors are available in standard sizes ranging from 5 through 51 positions.
Additional information
| Omnetics Series |
MBPS ,MBSS |
|---|---|
| Rows |
1 Row |
| Wire Type |
M22759/11 ,M22759/33 ,Nema HP3 (STD) ,Other |
| Electrical Mechanical Specifications |
– |
| Temperature |
-55ºC to +125ºC (200 ºC w/HTE) |
| Dielectric Withstand Voltage |
250 VAC RMS Sea Level |
| Contact Resistance |
71 mV Drop @ 1 AMP |
| Current Rating |
1 AMP per contact |
| Durability |
200 Mating cycles min* |
| Insulation Resistance |
5000 megohms min @ 100 VDC |
| Shock |
100 gs with no discontinuties > 10 nanoseconds |
| Vibration |
20 gs with no discontinuties > 10 nanoseconds |
| Thermal Vacuum Outgassing |
1.0% max TML, 0.1% max VCM |
| Mating/Unmating Force |
7 oz. (198 g) max per contact |
| Material Specifications |
– |
| Shell Material and Finish |
Aluminum Shell, Electroless Nickel Plated Aluminum Shell, Black AnodizedAluminum Shell, Cadmium PlatedTitanium Shell, UnplatedStainless Steel Shell, Passivated |
| Insulator |
Liquid Crystal Polymer per MIL-DTL-32139 or PEEK |
| Pin |
Gold Plated BeCu |
| Socket |
Gold Plated Copper Alloy |
| Encapsulant |
Epoxy |
Features
Pre-Wired Single Row Bi-Lobe® nanos can be ordered with full QPL approval. These assemblies are crimped using proprietary automated crimping systems in Omnetics MIL-STD-790 approved manufacturing facility pre-crimped wires & contacts are potted in place further protecting the integrity of the crimp joint.
Building these as full QPL parts gives users an added level of confidence of critical applications.
Commercial off the shelf(COTS) non-QPL versions are also available with 18″ of color coded 30 AWG Teflon for quick turn aroiund.
These connectors are available in standard sizes ranging from 5 through 51 positions.
