Nano-D / Bi-Lobe® Single Row Horizontal SMT (AA)
$1.00

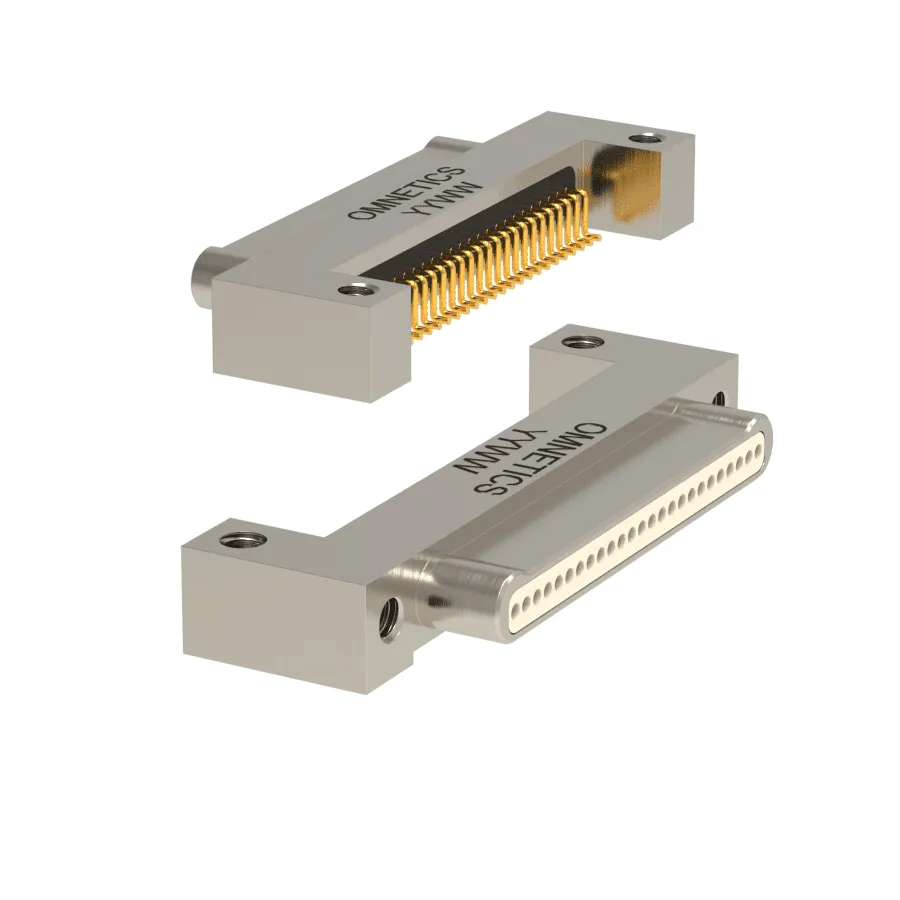

Single Row Horizontal SMT Nano-D / Bi-Lobe® nanos offer an extremely low profile package that is well suited for pick and place mounting methods. They have a very tight pitch of .025″ (.64 mm) centerlines.
Resources
| Title | Type | File |
| Nano-D / Bi-Lobe® Single Row Horizontal SMT (AA) Contact | Download | |
| Nano-D / Bi-Lobe® Single Row Horizontal SMT (AA) Ordering Guide | Download | |
| Nano-D / Bi-Lobe® Single Row Horizontal SMT (AA) Hardware & Misc. | Download |
Description
Single Row Horizontal SMT Nano-D / Bi-Lobe® nanos offer an extremely low profile package that is well suited for pick and place mounting methods. They have a very tight pitch of .025″ (.64 mm) centerlines.
These connectors featuring Omnetics highly reliable gold plated Flex Pin contact system, conforming to the requirements of MIL-DTL-32139. These rugged lightweight connectors are suitable for the most demanding applications.
Available with threaded mounting holes suitable for PCB and flex mounting. These connectors are available in standard sizes ranging from 5 through 51 positions, as well as custom configurations.
Additional information
| Omnetics Series |
MBPS ,MBSS |
|---|---|
| Rows |
1 Row |
| Termination Type |
AA – Horizontal Surface Mount |
| Electrical Mechanical Specifications |
– |
| Temperature |
-55ºC to +125ºC (200 ºC w/HTE) |
| Dielectric Withstand Voltage |
250 VAC RMS Sea Level |
| Contact Resistance |
71 mV Drop @ 1 AMP |
| Current Rating |
1 AMP per contact |
| Durability |
200 Mating cycles min* |
| Insulation Resistance |
5000 megohms min @ 100 VDC |
| Shock |
100 gs with no discontinuties > 10 nanoseconds |
| Vibration |
20 gs with no discontinuties > 10 nanoseconds |
| Thermal Vacuum Outgassing |
1.0% max TML, 0.1% max VCM |
| Mating/Unmating Force |
7 oz. (198 g) max per contact |
| Material Specifications |
– |
| Shell Material and Finish |
Aluminum Shell, Electroless Nickel Plated Aluminum Shell, Black Anodized Aluminum Shell, Cadmium Plated Titanium Shell, Unplated Stainless Steel Shell, Passivated |
| Insulator |
Liquid Crystal Polymer per MIL-DTL-32139 or PEEK |
| Pin |
Gold Plated BeCu |
| Socket |
Gold Plated Copper Alloy |
| Encapsulant |
Epoxy |
Features
Single Row Horizontal SMT Nano-D / Bi-Lobe® nanos offer an extremely low profile package that is well suited for pick and place mounting methods. They have a very tight pitch of .025″ (.64 mm) centerlines.
These connectors featuring Omnetics highly reliable gold plated Flex Pin contact system, conforming to the requirements of MIL-DTL-32139. These rugged lightweight connectors are suitable for the most demanding applications.
Available with threaded mounting holes suitable for PCB and flex mounting. These connectors are available in standard sizes ranging from 5 through 51 positions, as well as custom configurations.
Specifications
| Omnetics Series |
MBPS ,MBSS |
|---|---|
| Rows |
1 Row |
| Termination Type |
AA – Horizontal Surface Mount |
| Electrical Mechanical Specifications |
– |
| Temperature |
-55ºC to +125ºC (200 ºC w/HTE) |
| Dielectric Withstand Voltage |
250 VAC RMS Sea Level |
| Contact Resistance |
71 mV Drop @ 1 AMP |
| Current Rating |
1 AMP per contact |
| Durability |
200 Mating cycles min* |
| Insulation Resistance |
5000 megohms min @ 100 VDC |
| Shock |
100 gs with no discontinuties > 10 nanoseconds |
| Vibration |
20 gs with no discontinuties > 10 nanoseconds |
| Thermal Vacuum Outgassing |
1.0% max TML, 0.1% max VCM |
| Mating/Unmating Force |
7 oz. (198 g) max per contact |
| Material Specifications |
– |
| Shell Material and Finish |
Aluminum Shell, Electroless Nickel Plated Aluminum Shell, Black Anodized Aluminum Shell, Cadmium Plated Titanium Shell, Unplated Stainless Steel Shell, Passivated |
| Insulator |
Liquid Crystal Polymer per MIL-DTL-32139 or PEEK |
| Pin |
Gold Plated BeCu |
| Socket |
Gold Plated Copper Alloy |
| Encapsulant |
Epoxy |
