Nano-D / Bi-Lobe® Connectors – Panel Mount – Straight Tails (DD)

$1.00

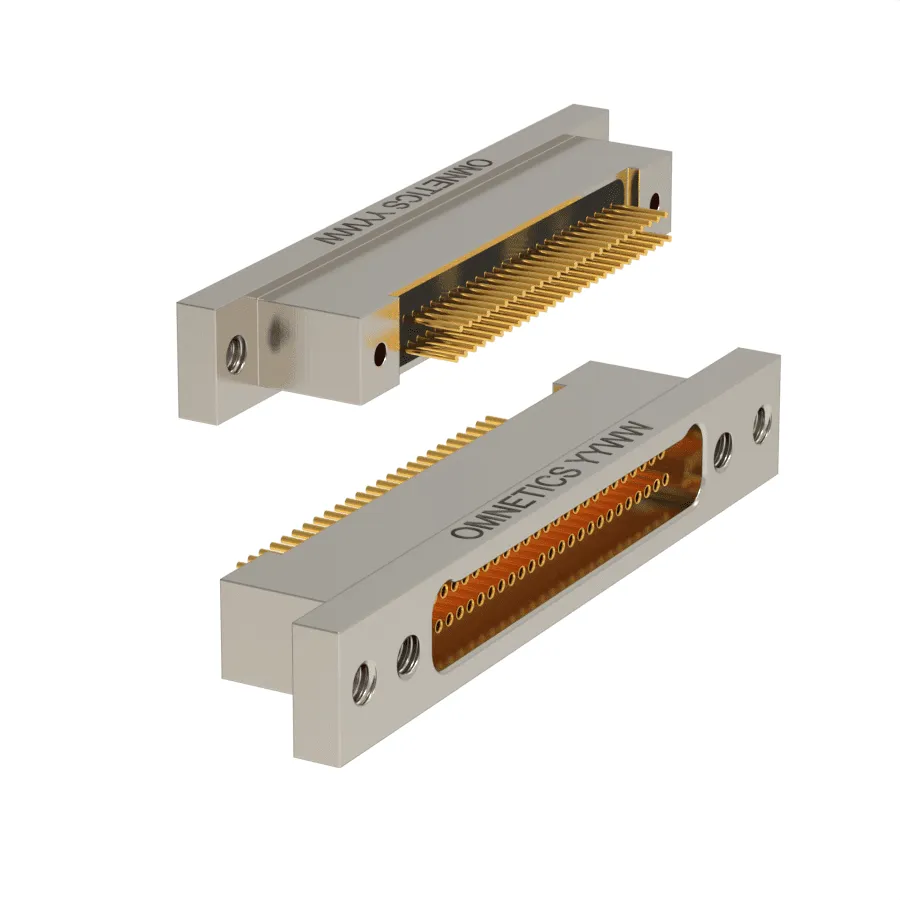

Omnetics Dual Row Bi-Lobe® nanos are available with panel mount housings. These housings require minimal space to create a convenient I/O arrangement. Utilizing Omnetics highly reliable gold plated Flex Pin contact system, these connectors are mateable with all MIL-DTL-32139 plugs.

Resources

Title	Type	File
Nano-D / Bi-Lobe® Connectors – Panel Mount – Straight Tails (DD) Contact	PDF	Download
Nano-D / Bi-Lobe® Connectors – Panel Mount – Straight Tails (DD) Ordering Guide	PDF	Download
Nano-D / Bi-Lobe® Connectors – Panel Mount – Straight Tails (DD) Hardware & Misc.	PDF	Download

Compare

Description
Additional information
Features
Specifications
Resources
Accessories
Related

Description

Their low mass and .025″ (.64 mm) centerlines make them ideal for high shock & vibration applications. They feature retention screw receptacles for a positive lock. Termination options include pre-wired, SMT, flex mount and straight tails.

Shell material options include Aluminum and Stainless steel with multiple standard and custom plating options upon request. These connectors are available in standard sizes ranging from 9 through 65 positions, as well as custom configurations

Additional information

Omnetics Series	MNSOP
Rows	2 Rows
Termination Type	DD – Thru-Hole Straight
Electrical Mechanical Specifications	–
Temperature	-55ºC to +125ºC (200 ºC w/HTE)
Dielectric Withstand Voltage	250 VAC RMS Sea Level
Contact Resistance	71 mV Drop @ 1 AMP
Current Rating	1 AMP per contact
Durability	200 Mating cycles min*
Insulation Resistance	5000 megohms min @ 100 VDC
Shock	100 gs with no discontinuties > 10 nanoseconds
Vibration	20 gs with no discontinuties > 10 nanoseconds
Thermal Vacuum Outgassing	1.0% max TML, 0.1% max VCM
Mating/Unmating Force	7 oz. (198 g) max per contact
Material Specifications	–
Shell Material and Finish	Aluminum Shell, Electroless Nickel Plated Aluminum Shell, Black AnodizedAluminum Shell, Cadmium PlatedTitanium Shell, UnplatedStainless Steel Shell, Passivated
Insulator	Liquid Crystal Polymer per MIL-DTL-32139 or PEEK
Pin	Gold Plated BeCu
Socket	Gold Plated Copper Alloy
Encapsulant	Epoxy

Features

Omnetics’ Dual Row Bi-Lobe® nanos are available with panel mount housings. These housings require minimal space to create a convenient I/O arrangement. Utilizing Omnetics highly reliable gold plated Flex Pin contact system, these connectors are mateable with all MIL-DTL-32139 plugs.

Specifications

Omnetics Series	MNSOP
Rows	2 Rows
Termination Type	DD – Thru-Hole Straight
Electrical Mechanical Specifications	–
Temperature	-55ºC to +125ºC (200 ºC w/HTE)
Dielectric Withstand Voltage	250 VAC RMS Sea Level
Contact Resistance	71 mV Drop @ 1 AMP
Current Rating	1 AMP per contact
Durability	200 Mating cycles min*
Insulation Resistance	5000 megohms min @ 100 VDC
Shock	100 gs with no discontinuties > 10 nanoseconds
Vibration	20 gs with no discontinuties > 10 nanoseconds
Thermal Vacuum Outgassing	1.0% max TML, 0.1% max VCM
Mating/Unmating Force	7 oz. (198 g) max per contact
Material Specifications	–
Shell Material and Finish	Aluminum Shell, Electroless Nickel Plated Aluminum Shell, Black AnodizedAluminum Shell, Cadmium PlatedTitanium Shell, UnplatedStainless Steel Shell, Passivated
Insulator	Liquid Crystal Polymer per MIL-DTL-32139 or PEEK
Pin	Gold Plated BeCu
Socket	Gold Plated Copper Alloy
Encapsulant	Epoxy
