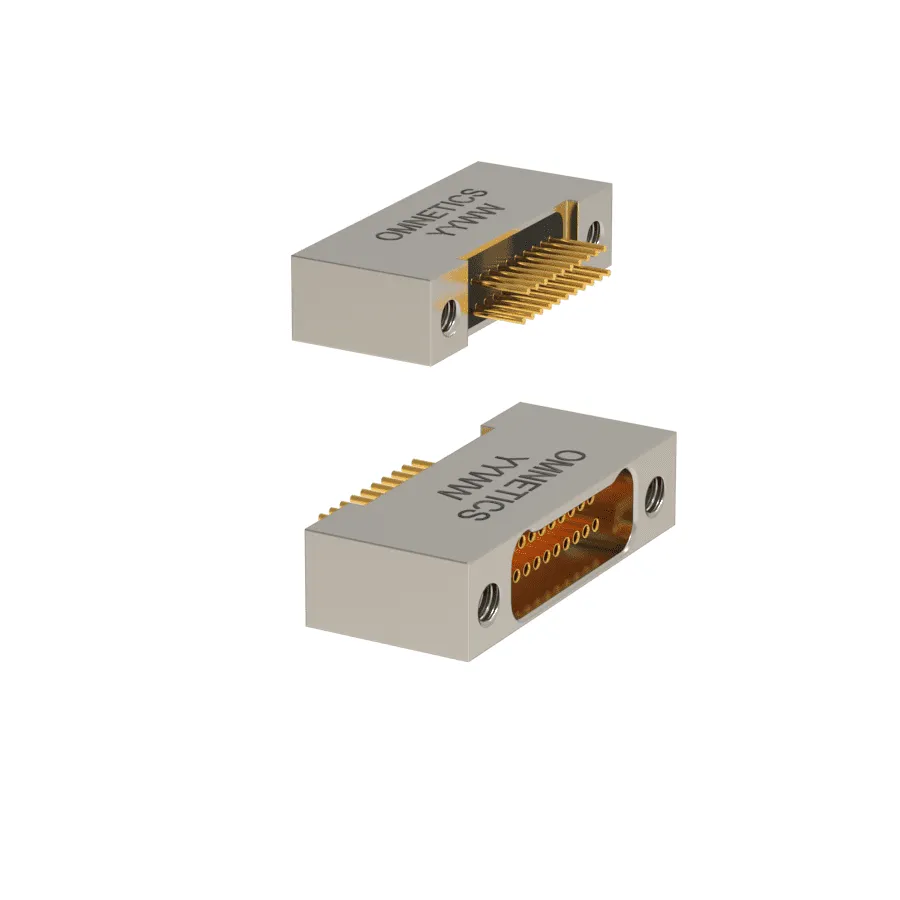

Nano-D / Bi-Lobe® Connectors – Dual Row – Straight Tail (DD)
$1.00
The Dual Row Bi-Lobe® Nano-D’s are configured with simple straight tails (Integral Or Crimped). Suitable for vertical through hole mounting to fine pitched flex circuits. These ruggedized nano connectors are designed on .25″ (.64mm) centerlines.
Resources
| Title | Type | File |
| Nano-D / Bi-Lobe® Connectors – Dual Row – Straight Tail (DD) Contact | Download | |
| Nano-D / Bi-Lobe® Connectors – Dual Row – Straight Tail (DD) Ordering Guide | Download | |
| Nano-D / Bi-Lobe® Connectors – Dual Row – Straight Tail (DD) Hardware & Misc. | Download |
Description
The Dual Row Bi-Lobe® Nano-D’s are configured with simple straight tails (Integral Or Crimped). Suitable for vertical through hole mounting to fine pitched flex circuits. These ruggedized nano connectors are designed on .25″ (.64mm) centerlines.
The Straight solid tails are commonly used in ultra fine wire wrap termination, such as used in electro-physiology. Whatever your application, these connectors feature Omnetics’ gold plated Flex Pin contact system conforms to the requirements of MIL-DTL-32139.
They are available with retension screws for a positive lock. These connectors are available in standard sizes ranging from 9 thorugh 65 positions, as well as custom configurations.
Flex design and installation service is also available from Omnetics. Please contact us for more information.
Additional information
| Omnetics Series |
MNPO ,MNSO |
|---|---|
| Rows |
2 Rows |
| Termination Type |
DD – Thru-Hole Straight |
| Electrical Mechanical Specifications |
– |
| Temperature |
-55ºC to +125ºC (200 ºC w/HTE) |
| Dielectric Withstand Voltage |
250 VAC RMS Sea Level |
| Contact Resistance |
71 mV Drop @ 1 AMP |
| Current Rating |
1 AMP per contact |
| Durability |
200 Mating cycles min* |
| Insulation Resistance |
5000 megohms min @ 100 VDC |
| Shock |
100 gs with no discontinuties > 10 nanoseconds |
| Vibration |
20 gs with no discontinuties > 10 nanoseconds |
| Thermal Vacuum Outgassing |
1.0% max TML, 0.1% max VCM |
| Mating/Unmating Force |
7 oz. (198 g) max per contact |
| Material Specifications |
– |
| Shell Material and Finish |
Aluminum Shell, Electroless Nickel Plated Aluminum Shell, Black AnodizedAluminum Shell, Cadmium PlatedTitanium Shell, UnplatedStainless Steel Shell, Passivated |
| Insulator |
Liquid Crystal Polymer per MIL-DTL-32139 or PEEK |
| Pin |
Gold Plated BeCu |
| Socket |
Gold Plated Copper Alloy |
| Encapsulant |
Epoxy |
Features
The Dual Row Bi-Lobe® Nano-D’s are configured with simple straight tails (Integral Or Crimped). Suitable for vertical through hole mounting to fine pitched flex circuits. These ruggedized nano connectors are designed on .25″ (.64mm) centerlines.
The Straight solid tails are commonly used in ultra fine wire wrap termination, such as used in electro-physiology. Whatever your application, these connectors feature Omnetics’ gold plated Flex Pin contact system conforms to the requirements of MIL-DTL-32139.
They are available with retension screws for a positive lock. These connectors are available in standard sizes ranging from 9 thorugh 65 positions, as well as custom configurations.
Flex design and installation service is also available from Omnetics. Please contact us for more information.
