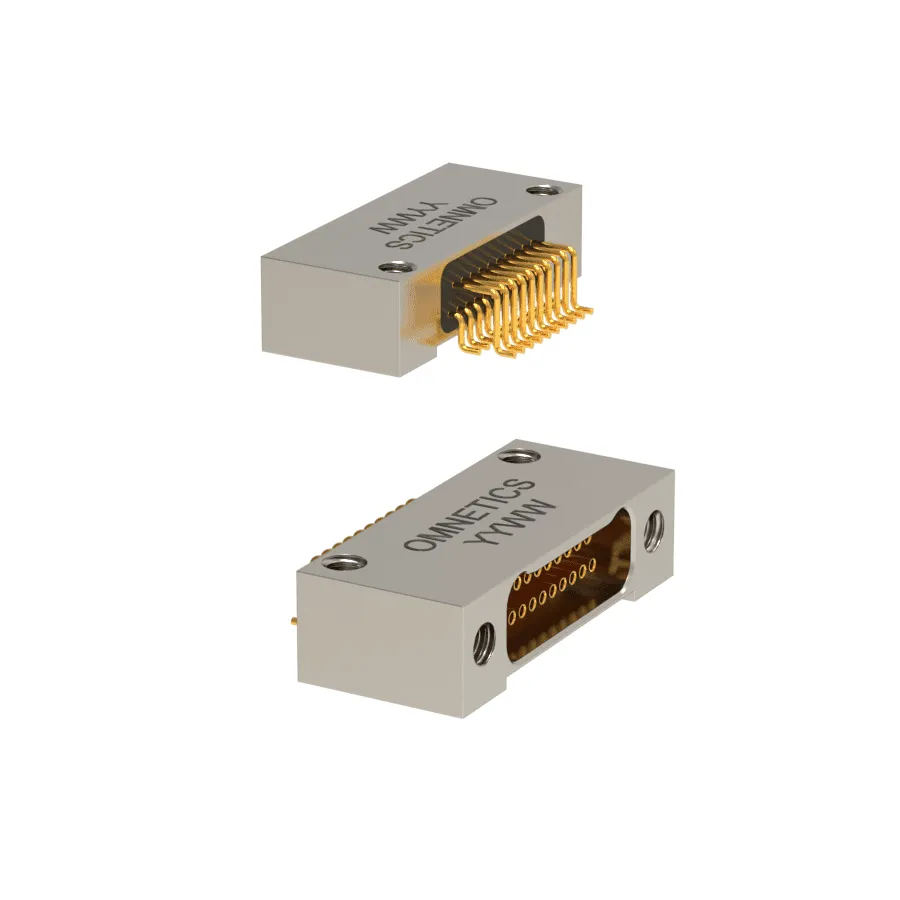

Nano-D / Bi-Lobe® Connectors – Dual Row – Horizontal SMT (AA)
$1.00
Horizontal SMT Bi-Lobe® Nano-D’s offer an extremely low profile package that is well suited to pick and place mounting methods.
Resources
| Title | Type | File |
| Nano-D / Bi-Lobe® Connectors – Dual Row – Horizontal SMT (AA) Contact | Download | |
| Nano-D / Bi-Lobe® Connectors – Dual Row – Horizontal SMT (AA) Ordering Guide | Download | |
| Nano-D / Bi-Lobe® Connectors – Dual Row – Horizontal SMT (AA) Hardware & Misc. | Download |
Description
Horizontal SMT Bi-Lobe® Nano-D’s offer an extremely low profile package that is well suited to pick and place mounting methods. These connectors feature Omnetics highly reliable gold plated Flex Pin contact system conforms to the requirements of MIL-DTL-32139. These rugged lightweight connectors are suitable for the most demanding applications. Available with threaded mounting holes suitable for PCB and flex mounting. These connectors are available in standard sizes ranging from 9 through 65 positions, as well as custom configurations.
Additional information
| Omnetics Series |
MNPO ,MNSO |
|---|---|
| Rows |
2 Rows |
| Termination Type |
AA – Horizontal Surface Mount |
| Electrical Mechanical Specifications |
– |
| Temperature |
-55ºC to +125ºC (200 ºC w/HTE) |
| Dielectric Withstand Voltage |
250 VAC RMS Sea Level |
| Contact Resistance |
71 mV Drop @ 1 AMP |
| Current Rating |
1 AMP per contact |
| Durability |
200 Mating cycles min* |
| Insulation Resistance |
5000 megohms min @ 100 VDC |
| Shock |
100 gs with no discontinuties > 10 nanoseconds |
| Vibration |
20 gs with no discontinuties > 10 nanoseconds |
| Thermal Vacuum Outgassing |
1.0% max TML, 0.1% max VCM |
| Mating/Unmating Force |
7 oz. (198 g) max per contact |
| Material Specifications |
– |
| Shell Material and Finish |
Aluminum Shell, Electroless Nickel Plated Aluminum Shell, Black Anodized Aluminum Shell, Cadmium Plated Titanium Shell, Unplated Stainless Steel Shell, Passivated |
| Insulator |
Liquid Crystal Polymer per MIL-DTL-32139 or PEEK |
| Pin |
Gold Plated BeCu |
| Socket |
Gold Plated Copper Alloy |
| Encapsulant |
Epoxy |
Features
Horizontal SMT Bi-Lobe® Nano-D’s offer an extremely low profile package that is well suited to pick and place mounting methods. These connectors feature Omnetics highly reliable gold plated Flex Pin contact system conforms to the requirements of MIL-DTL-32139. These rugged lightweight connectors are suitable for the most demanding applications. Available with threaded mounting holes suitable for PCB and flex mounting. These connectors are available in standard sizes ranging from 9 through 65 positions, as well as custom configurations.
Specifications
| Omnetics Series |
MNPO ,MNSO |
|---|---|
| Rows |
2 Rows |
| Termination Type |
AA – Horizontal Surface Mount |
| Electrical Mechanical Specifications |
– |
| Temperature |
-55ºC to +125ºC (200 ºC w/HTE) |
| Dielectric Withstand Voltage |
250 VAC RMS Sea Level |
| Contact Resistance |
71 mV Drop @ 1 AMP |
| Current Rating |
1 AMP per contact |
| Durability |
200 Mating cycles min* |
| Insulation Resistance |
5000 megohms min @ 100 VDC |
| Shock |
100 gs with no discontinuties > 10 nanoseconds |
| Vibration |
20 gs with no discontinuties > 10 nanoseconds |
| Thermal Vacuum Outgassing |
1.0% max TML, 0.1% max VCM |
| Mating/Unmating Force |
7 oz. (198 g) max per contact |
| Material Specifications |
– |
| Shell Material and Finish |
Aluminum Shell, Electroless Nickel Plated Aluminum Shell, Black Anodized Aluminum Shell, Cadmium Plated Titanium Shell, Unplated Stainless Steel Shell, Passivated |
| Insulator |
Liquid Crystal Polymer per MIL-DTL-32139 or PEEK |
| Pin |
Gold Plated BeCu |
| Socket |
Gold Plated Copper Alloy |
| Encapsulant |
Epoxy |
