Description

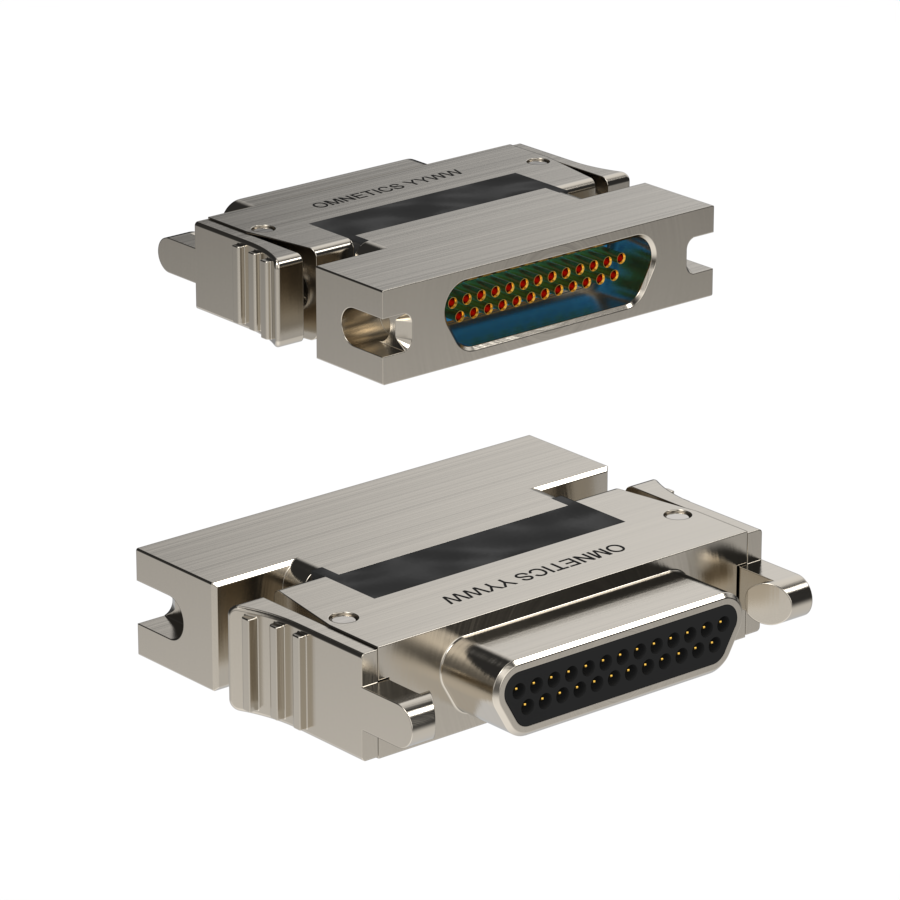

OmneticsÂ’ Latching Micro-D connectors offer a rugged quick latch system. The Latching Micro-D connectors are availbale in sizes 9-51 and use OmneticsÂ’ Flex Pin contact system, which meets all the standard performance requirements of MIL-DTL-83513, including shock and vibration. These connectors provide a secure connection without the need for tools and jacking hardware and are available in wired, board mount, panel mount configurations as well as with back shell options.
Additional information
| Omnetics Series |
LMDZ ,MMDZ |
|---|---|
| Rows |
2 Rows |
| Shell Material & Finish |
Aluminium Shell, Black Anodized ,Aluminium Shell, Cadmium Plated ,Aluminum Shell, Electroless Nickel Plated ,Stainless Steel Shell, Passivated |
| Electrical Mechanical Specifications |
– |
| Temperature |
-55ÂşC to +125ÂşC (200 ÂşC w/HTE) |
| Dielectric Withstand Voltage |
600 VAC RMS at Sea Level |
| Contact Resistance |
26 milliohms max (65 mV drop) @ 2.5 AMPS |
| Current Rating |
3 AMPS per contact |
| Durability |
2\,000 Mating Cycles min |
| Insulation Resistance |
5000 Meg ohms @ 500 VDC |
| Shock |
50 gÂ’s with no discontinuities > 1 microsecond |
| Vibration |
20 gÂ’s with no discontinuities > 1 microsecond |
| Thermal Vacuum Outgassing |
1.0% max TML\, 0.03% CVCM – NASA SP-R-0022 |
| Mating/Unmating Force |
3 oz (85 g) typical per contact |
| Material Specifications |
– |
| Contact |
Copper Alloy per MIL-DTL-83513 |
| Contact Finish |
Gold per ASTM B488\, Type II\, Class 1.27\, Code C Over Nickel Underplate |
| Insulator |
Thermoplastic per MIL-DTL-83513 |
| Interfacial Seal |
Fluorosilicone Elastomer per A-A-59588 |
| Hardware |
Stainless Steel\, 300 Series\, Passivated per SAE AMS-2700 |
| Latch |
Stainless Steel, Nickel Plated |
| Latch Spring |
Stainless Steel |
| Retaining Pin |
Stainless Steel |
| Shell Options |
– |
| Aluminum Shell, Electroless Nickel Plated |
Alloy 6061 per SAE AMS-QQ-A-200/8 or ASTMB221 Nickel per SAE AMS-2404 |
| Aluminum Shell, Cadmium Plated |
Alloy 6061 per SAE AMS-QQ-A-200/8\, Cadmium with Yellow Chromate Conversion per SAE-AMS-QQ-P-416\, Type II\, Class 3 Over Nickel Underplate |
Features
- Sizes 9, 15, 21, 25, 31, 37 are available with two contact rows
- Size 51 is available in two rows and Three rows
- Available in Male/Female Combo
- RoHS available upon request
- High Temp Epoxy available upon request
