Omnetics micro series of circular connectors are now available with metal housings giving them a environmental seal.
| Title | Type | File |
| Micro 360® Circulars Threaded Panel Mount Wired/Cable Contact | Download | |
| Micro 360® Circulars Threaded Panel Mount Wired/Cable Ordering Guide | Download |

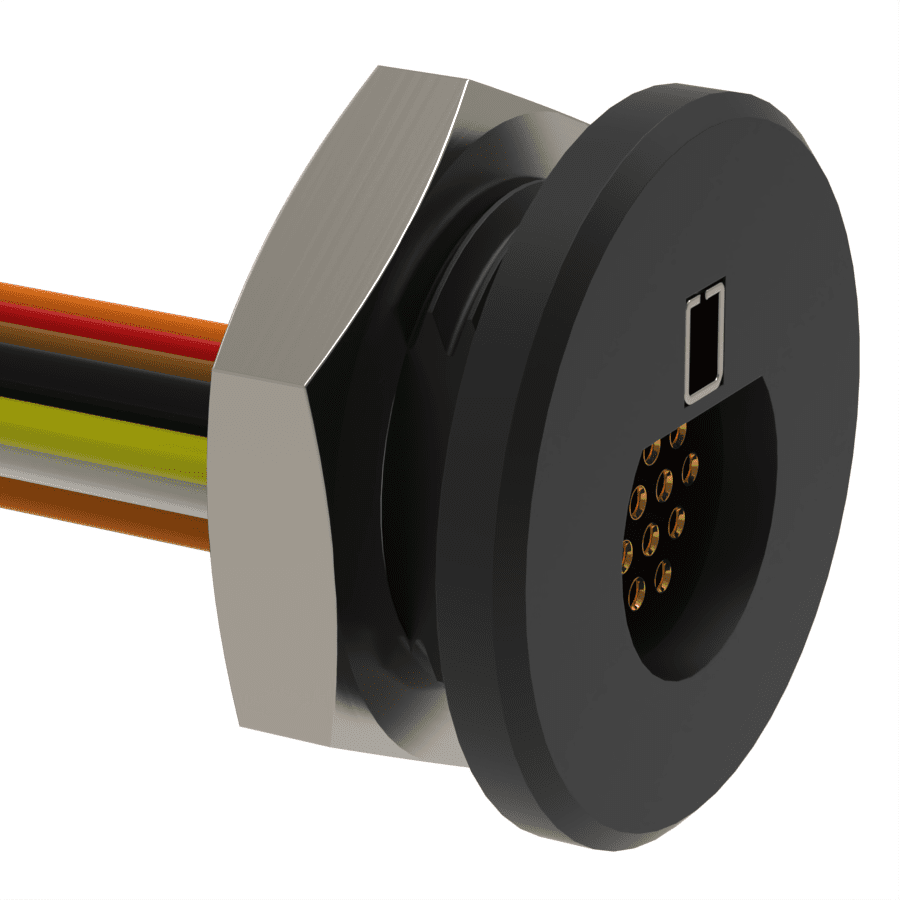

Omnetics micro series of circular connectors are now available with metal housings giving them a environmental seal. They have ability to withstand high shock and vibrations while maintaining electrical integrity. A variety of shell material and finishes are available. Sizes available 5, 7, 12, 16, 27 & 39 .Wire Terminations available with Discrete wire and Cable.
| Omnetics Series |
MMCP |
|---|---|
| Rows |
2 Rows ,3 Rows ,4 Rows |
| Termination Type |
WC – Cable ,WD – Discrete Leadwire |
| Electrical Mechanical Specifications |
– |
| Temperature |
-55ºC to +125ºC (200 ºC w/HTE) |
| Dielectric Withstand Voltage |
250 VAC RMS at Sea Level |
| Contact Resistance |
26 Milliohm Max (65 mV Drop Max) @ 2.5 AMPs per MIL-DTL-83513 |
| Current Rating |
3 AMPs per contact |
| Durability |
500 cycles |
| Insulation Resistance |
5, 000 megohms min @ 500 VDC |
| Shock |
50 gs with no discontinuties > 1 microsecond |
| Vibration |
20 gs with no discontinuties > 1 microsecond |
| Thermal Vacuum Outgassing |
NASA SP-R-0022 |
| Mating/Unmating Force |
3 oz (85 g) typical per contact |
| Material Specifications |
– |
| Shell Material and Finish |
Ni Plated Brass or Black Ni. Contact Factory for other Materials |
| Insulator |
LCP per MIL-M-24519, Type GLCP-30F |
| Pin |
Beryllium Copper per ASTM B194, Alloy C17200 |
| Socket |
Copper Alloy MIL-DTL-83513 |
| Encapsulant |
Epoxy |
| Standard PC Tail Finish |
Solder per J-STD-006 (Non-RoHS) |
| RoHS PC Tail Finish |
Hard gold plate per ASTM B488 |
The Micro Circular Series utilizes Omnetics’ rugged and reliable Flex-Pin contact system. Spaced on 50 mil (1.27mm) centerlines they feature a mated length of less than 12.4 mm. Both the male and female contacts are shrouded by the plastic insulators insuring that the contacts are protected during mating and unmating. Outer diameters range from 5.6 mm to 10.0 mm. With the ability to withstand high shock and vibration while maintaining their electrical integrity, these connectors are ideal for the most demanding applications. Gold plated Beryllium Copper flex pins are capable of over 2,000 mating cycles.
5, 7, 12, 16, 27 & 39 positions housing sizes are available in pre-wired, soldercup and solid straight tail versions. Elaborate wire harnesses, flex termination, overmolding and custom shells are all available upon request.
