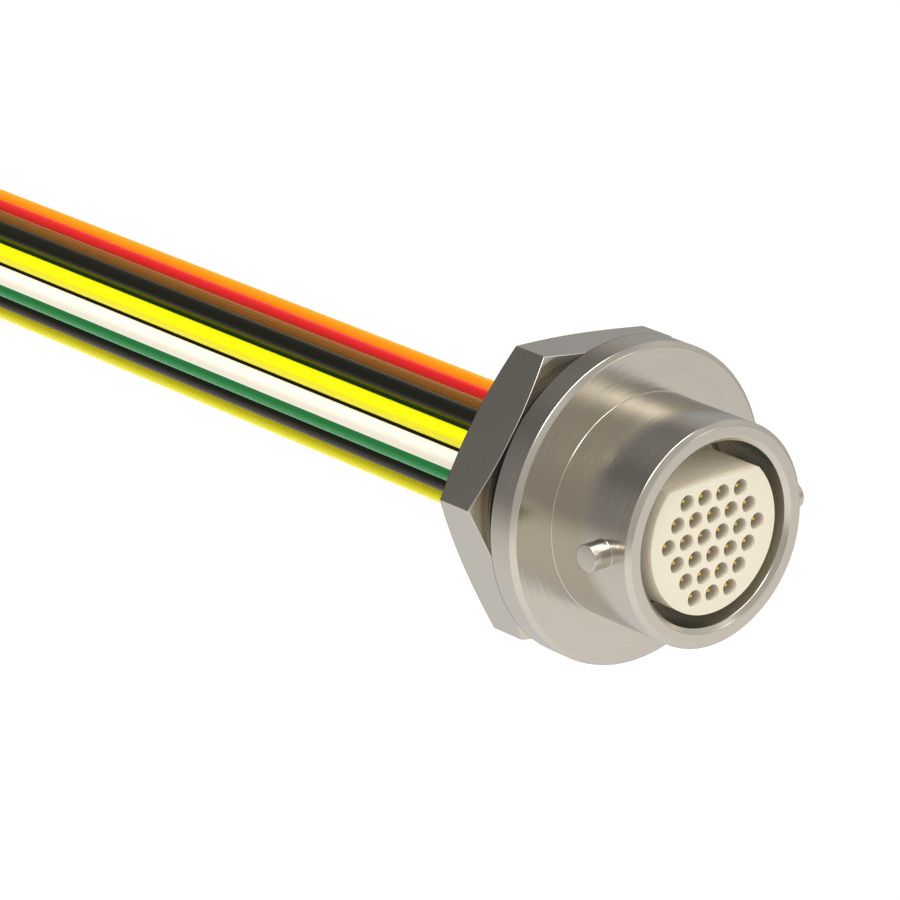

Micro 360® Circulars Twist Lock Panel Mount – Wired/Cable
Omnetics micro series of circular connectors are now available with metal housings giving them a environmental seal.
Resources
| Title | Type | File |
| Micro 360® Twist Lock Metal Shell Circulars – Discrete Wire/Cable Contact | Download | |
| Micro 360® Twist Lock Metal Shell Circulars – Discrete Wire/Cable Ordering Guide | Download |
Description
Omnetics micro series of circular connectors are now available with metal housings giving them a environmental seal. They have ability to withstand high shock and vibrations while maintaining electrical integrity. A variety of shell material and finishes are available. Sizes available 5, 7, 12, 16, 27 & 39 .Wire Terminations available with Discrete wire and Cable.
Additional information
| Omnetics Series | TMCP, TMCS |
|---|---|
| Rows | 2 Rows, 3 Rows, 4 Rows |
| Termination Type | WC – Cable, WD – Discrete Leadwire |
| Electrical Mechanical Specifications | – |
| Temperature | -55ºC to +125ºC (200 ºC w/HTE) |
| Dielectric Withstand Voltage | 250 VAC RMS at Sea Level |
| Contact Resistance | 26 Milliohm Max (65 mV Drop Max) @ 2.5 AMPs per MIL-DTL-83513 |
| Current Rating | 3 AMPs per contact |
| Durability | 500 cycles |
| Insulation Resistance | 5, 000 megohms min @ 500 VDC |
| Shock | 50 gs with no discontinuties > 1 microsecond |
| Vibration | 20 gs with no discontinuties > 1 microsecond |
| Thermal Vacuum Outgassing | NASA SP-R-0022 |
| Mating/Unmating Force | 3 oz (85 g) typical per contact |
| Material Specifications | – |
| Shell Material and Finish | Ni Plated Brass or Black Ni. Contact Factory for other Materials |
| Insulator | LCP per MIL-M-24519, Type GLCP-30F |
| Pin | Beryllium Copper per ASTM B194, Alloy C17200 |
| Socket | Copper Alloy MIL-DTL-83513 |
| Encapsulant | Epoxy |
Features
Omnetics micro series of circular connectors are now available with metal housings giving them a environmental seal. They have ability to withstand high shock and vibrations while maintaining electrical integrity. A variety of shell material and finishes are available. Sizes available 5, 7, 12, 16, 27 & 39 .
Specifications
| Omnetics Series | TMCP, TMCS |
|---|---|
| Rows | 2 Rows, 3 Rows, 4 Rows |
| Termination Type | WC – Cable, WD – Discrete Leadwire |
| Electrical Mechanical Specifications | – |
| Temperature | -55ºC to +125ºC (200 ºC w/HTE) |
| Dielectric Withstand Voltage | 250 VAC RMS at Sea Level |
| Contact Resistance | 26 Milliohm Max (65 mV Drop Max) @ 2.5 AMPs per MIL-DTL-83513 |
| Current Rating | 3 AMPs per contact |
| Durability | 500 cycles |
| Insulation Resistance | 5, 000 megohms min @ 500 VDC |
| Shock | 50 gs with no discontinuties > 1 microsecond |
| Vibration | 20 gs with no discontinuties > 1 microsecond |
| Thermal Vacuum Outgassing | NASA SP-R-0022 |
| Mating/Unmating Force | 3 oz (85 g) typical per contact |
| Material Specifications | – |
| Shell Material and Finish | Ni Plated Brass or Black Ni. Contact Factory for other Materials |
| Insulator | LCP per MIL-M-24519, Type GLCP-30F |
| Pin | Beryllium Copper per ASTM B194, Alloy C17200 |
| Socket | Copper Alloy MIL-DTL-83513 |
| Encapsulant | Epoxy |
