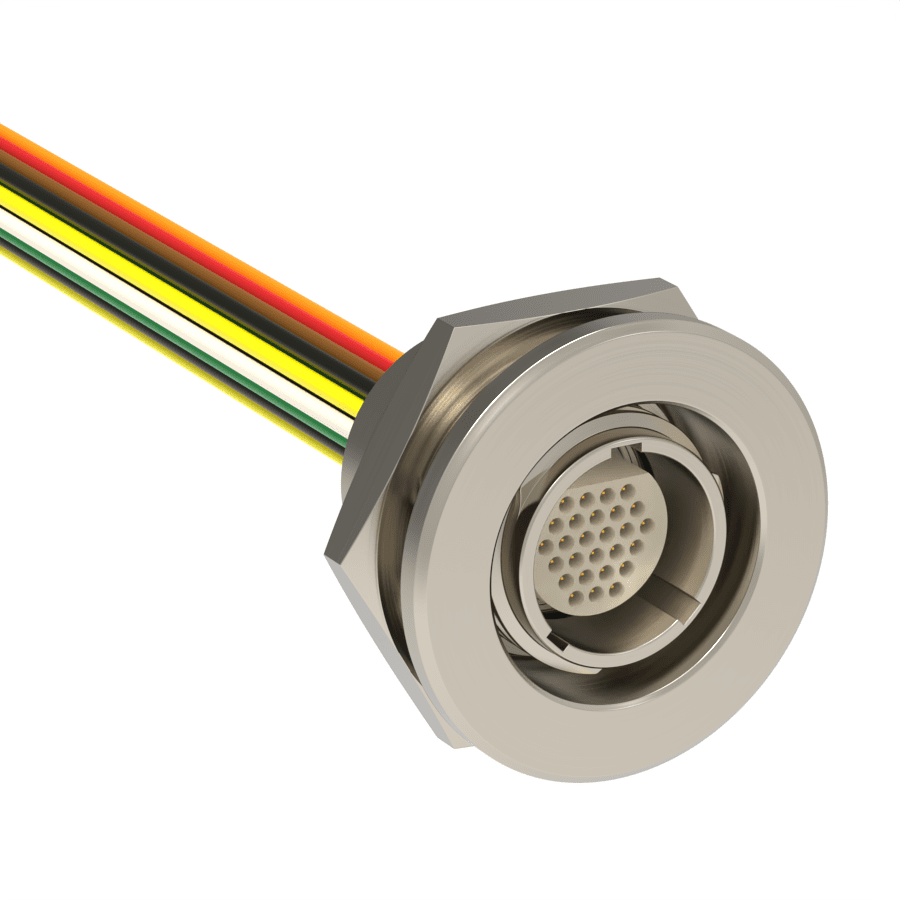

Micro 360® ACME Triple Thread Ratcheting Circular Panel Mount
$1.00
Omnetics micro series of circular connectors are now available with metal housings giving them an environmental seal.
Resources
| Title | Type | File |
| Micro 360® ACME Triple Thread Ratcheting Circular Panel Mount Contact | Download | |
| Micro 360® ACME Triple Thread Ratcheting Circular Panel Mount Ordering Guide | Download |
Description
Omnetics micro series of circular connectors are now available with metal housings giving them an environmental seal. They have ability to withstand high shock and vibrations while maintaining electrical integrity. A variety of shell material and finishes are available. Sizes available 05, 12, 16, 27, & 39. Wire Terminations available with discrete wire and Cable.
Additional information
| Omnetics Series |
BAMP ,BAMS ,KBMP ,KBMS |
|---|---|
| Rows |
2 Rows ,3 Rows ,4 Rows |
| Termination Type |
WC – Cable ,WD – Discrete Leadwire |
| Electrical Mechanical Specifications |
– |
| Temperature |
-55ºC to +125ºC (200 ºC w/HTE) |
| Dielectric Withstand Voltage |
250 VAC RMS at Sea Level |
| Contact Resistance |
26 Milliohm Max (65 mV Drop Max) @ 2.5 AMPs per MIL-DTL-83513 |
| Current Rating |
3 AMPs per contact |
| Durability |
500 cycles |
| Insulation Resistance |
5, 000 megohms min @ 500 VDC |
| Shock |
50 gs with no discontinuties > 1 microsecond |
| Vibration |
20 gs with no discontinuties > 1 microsecond |
| Thermal Vacuum Outgassing |
NASA SP-R-0022 |
| Mating/Unmating Force |
3 oz (85 g) typical per contact |
| Material Specifications |
– |
| Shell Material and Finish |
Ni Plated Brass or Black Ni. Contact Factory for other Materials |
| Insulator |
LCP per MIL-M-24519, Type GLCP-30F |
| Pin |
Beryllium Copper per ASTM B194, Alloy C17200 |
| Socket |
Copper Alloy MIL-DTL-83513 |
| Encapsulant |
Epoxy |
Features
Omnetics micro series of circular connectors are now available with metal housings giving them an environmental seal. They have ability to withstand high shock and vibrations while maintaining electrical integrity. A variety of shell material and finishes are available. Sizes available 05, 12, 16, 27, & 39. Wire Terminations available with discrete wire and Cable
Specifications
| Omnetics Series |
BAMP ,BAMS ,KBMP ,KBMS |
|---|---|
| Rows |
2 Rows ,3 Rows ,4 Rows |
| Termination Type |
WC – Cable ,WD – Discrete Leadwire |
| Electrical Mechanical Specifications |
– |
| Temperature |
-55ºC to +125ºC (200 ºC w/HTE) |
| Dielectric Withstand Voltage |
250 VAC RMS at Sea Level |
| Contact Resistance |
26 Milliohm Max (65 mV Drop Max) @ 2.5 AMPs per MIL-DTL-83513 |
| Current Rating |
3 AMPs per contact |
| Durability |
500 cycles |
| Insulation Resistance |
5, 000 megohms min @ 500 VDC |
| Shock |
50 gs with no discontinuties > 1 microsecond |
| Vibration |
20 gs with no discontinuties > 1 microsecond |
| Thermal Vacuum Outgassing |
NASA SP-R-0022 |
| Mating/Unmating Force |
3 oz (85 g) typical per contact |
| Material Specifications |
– |
| Shell Material and Finish |
Ni Plated Brass or Black Ni. Contact Factory for other Materials |
| Insulator |
LCP per MIL-M-24519, Type GLCP-30F |
| Pin |
Beryllium Copper per ASTM B194, Alloy C17200 |
| Socket |
Copper Alloy MIL-DTL-83513 |
| Encapsulant |
Epoxy |
