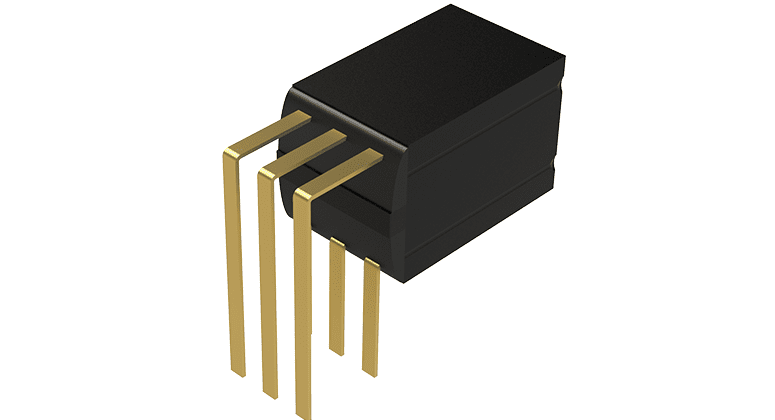

Dual Row Short/Long Alt. Thru-Hole (H2)
$1.00
The Dual Row Micro Strip connectors H2 have contacts arranged on .050 (1.27 mm) centerlines.
Resources
| Title | Type | File |
| Dual Row Short/Long Alt. Thru-Hole (H2) Contact | Download | |
| Dual Row Short/Long Alt. Thru-Hole (H2) Ordering Guide | Download |
Description
The Dual Row Micro Strip connectors H2 have contacts arranged on .050 (1.27 mm) centerlines. The thru-hole tails are spread out into a mounting pattern on .050 (1.27 mm) centers, allowing for space for traces and annular rings.These connectors feature Omnetics’ highly reliable gold plated Flex Pin contact system which meets the performance specifications of MIL-DTL-83513. These durable light weight connectors are suitable for the most demanding applications. Available with fixing/retention jack screws as well as mounting holes suitable for PCB and flex mounting. These connectors are available in standard sizes ranging from 2 through 64 positions as well as custom configurations.
Additional information
| Omnetics Series |
DRP ,DRS |
|---|---|
| Rows |
2 Rows |
| Termination Type |
H2 – Short/Long Alt Thru-Hole |
| Electrical Mechanical Specifications |
– |
| Temperature |
-55ºC to +125ºC (200 ºC w/HTE) |
| Dielectric Withstand Voltage |
600 VAC RMS Sea Level |
| Contact Resistance |
26 milliohms (65 mV max @ 2.5 AMPs) |
| Current Rating |
3 AMPs per contact |
| Durability |
500 Cycles |
| Insulation Resistance |
5, 000 Megohms min @ 500 VDC |
| Shock |
50 gs with no discontinuities > 1 microsecond |
| Vibration |
20 gs with no discontinuities > 1 microsecond |
| Thermal Vacuum Outgassing |
NASA SP-R-0022 |
| Mating/Unmating Force |
Forces not to exceed 6 oz/contact |
| Material Specifications |
– |
| Insulator |
Polyphenylene Sulfide per MIL-M-24519 |
| Socket |
Gold Plated Copper Alloy |
| Encapsulant |
Epoxy |
| Standard Pin PCB Tail Termination |
Solder per J-STD-006 (Non-RoHS) or ASTM P-81728 |
| RoHS Pin PCB Tail Termination |
Hard gold plate per ASTM B488 |
| RoHS Socket PCB Tail Termination |
Hard gold plate per ASTM B488 |
Features
The Dual Row Micro Strip connectors H2 have contacts arranged on .050” (1.27 mm) centerlines. The thru-hole tails are spread out into a mounting pattern on .050 (1.27 mm) centers, allowing for space for traces and annular rings.These connectors feature Omnetics’ highly reliable gold plated Flex Pin contact system which meets the performance specifications of MIL-DTL-83513. These durable light weight connectors are suitable for the most demanding applications. Available with fixing/retention jack screws as well as mounting holes suitable for PCB and flex mounting. These connectors are available in standard sizes ranging from 2 through 64 positions as well as custom configurations.
Specifications
| Omnetics Series |
DRP ,DRS |
|---|---|
| Rows |
2 Rows |
| Termination Type |
H2 – Short/Long Alt Thru-Hole |
| Electrical Mechanical Specifications |
– |
| Temperature |
-55ºC to +125ºC (200 ºC w/HTE) |
| Dielectric Withstand Voltage |
600 VAC RMS Sea Level |
| Contact Resistance |
26 milliohms (65 mV max @ 2.5 AMPs) |
| Current Rating |
3 AMPs per contact |
| Durability |
500 Cycles |
| Insulation Resistance |
5, 000 Megohms min @ 500 VDC |
| Shock |
50 gs with no discontinuities > 1 microsecond |
| Vibration |
20 gs with no discontinuities > 1 microsecond |
| Thermal Vacuum Outgassing |
NASA SP-R-0022 |
| Mating/Unmating Force |
Forces not to exceed 6 oz/contact |
| Material Specifications |
– |
| Insulator |
Polyphenylene Sulfide per MIL-M-24519 |
| Socket |
Gold Plated Copper Alloy |
| Encapsulant |
Epoxy |
| Standard Pin PCB Tail Termination |
Solder per J-STD-006 (Non-RoHS) or ASTM P-81728 |
| RoHS Pin PCB Tail Termination |
Hard gold plate per ASTM B488 |
| RoHS Socket PCB Tail Termination |
Hard gold plate per ASTM B488 |
