A29861-001
CompareDescription

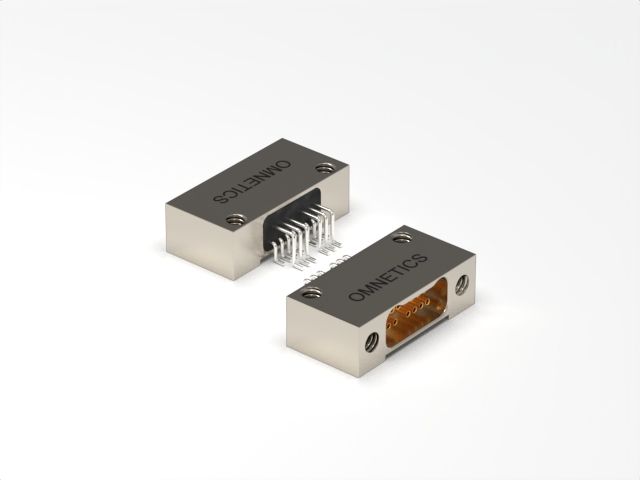

The High-Speed Nano-D uses modified insulators and pin arrangements to optimize impedance and performance for high-speed or high-density signal routing.
High-Speed connectors and cables are optimized for gigabit digital applications and protocols such as: USB 3.0, 10GbE, Camera Link, and PCIe. These high performance Mil-Aero style Nano-D connectors are built using Omnetics MIL-DTL-32139 compliant Flex Pin contact solution. The High-Speed connector solutions have the ability to withstand high shock and vibration while maintaining signal integrity:
Additional information
| Omnetics Series | MNSO |
|---|---|
| Electrical Mechanical Specifications | Durability > 2000 Mating Cycles min Temperature -55ºC to +125 ºC Current rating 1 Amp per contact Voltage Rating (DWV) 250 VAC RMS Sea Level Insulation Resistance 5,000 Megohms @ 100 VDC Shock 100 g’s discontinuity < 10 nanoseconds Vibration 20 g’s discontinuity < 10 nanoseconds Thermal Vacuum Outgassing 1.0% max TML, 0.1% VCM Contact Resistance 71 milliohms (71 mV) max @ 1 Amp Mating/Unmating Force 2.5 oz. (.71g) typical per contact |
| Material Specifications | Contact Copper Alloy Per MIL-DTL-32139 Contact Finish Gold per ASTM B488, Type II, Class 1.27, Code C Over Nickel Underplate Insulator LCP Per MIL-DTL-32139 Encapsulant Epoxy |
| Shell Options | Aluminum 6061 Electroless Nickel per SAE-AMS-2404 Stainless Steel, 300 Series Passivated per SAE-AMS-2700 |
| High-Speed Specifications | Data Rate Up to 12.6 Gbps |
Features
- Pinout options designed for higher density and higher speed
- Turnkey pre-wired factory cables and PCB connector solutions.
- Unique contact isolation and spacing for optimal performance up to 20 Gbps.
- 30 AWG parallel pair High-Speed cable.
- 1 Amp Flex Pin contacts performance in high vibrations and shock environments.
