Nano-D / Bi-Lobe® Connectors – Panel Mount – Horizontal SMT (AA)
$1.00

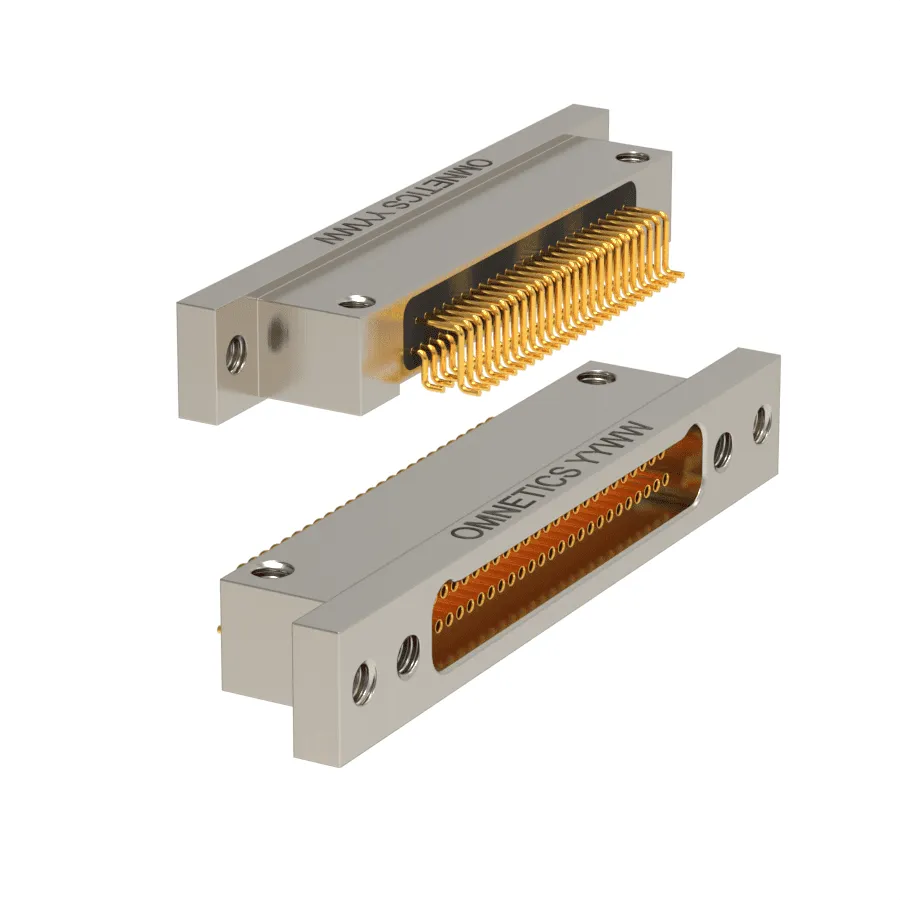

Omnetics Dual Row Bi-Lobe® nanos are available with panel mount housings. These housings require minimal space to create a convenient I/O arrangement. Utilizing Omnetics highly reliable gold plated Flex Pin contact system, these connectors are mateable with all MIL-DTL-32139 plugs.
Resources
| Title | Type | File |
| Nano-D / Bi-Lobe® Connectors – Panel Mount – Horizontal SMT (AA) Contact | Download | |
| Nano-D / Bi-Lobe® Connectors – Panel Mount – Horizontal SMT (AA) Ordering Guide | Download | |
| Nano-D / Bi-Lobe® Connectors – Panel Mount – Horizontal SMT (AA) Hardware & Misc. | Download |
Description
Omnetics Dual Row Bi-Lobe® nanos are available with panel mount housings. These housings require minimal space to create a convenient I/O arrangement. Utilizing Omnetics highly reliable gold plated Flex Pin contact system, these connectors are mateable with all MIL-DTL-32139 plugs.
Their low mass and .025″ (.64 mm) centerlines make them ideal for high shock & vibration applications. They feature retention screw receptacles for a positive lock. Termination options include pre-wired, SMT, flex mount and straight tails.
Shell material options include Aluminum and Stainless steel with multiple standard and custom plating options upon request. These connectors are available in standard sizes ranging from 9 through 65 positions, as well as custom configurations
Additional information
| Omnetics Series |
MNSOP |
|---|---|
| Rows |
2 Rows |
| Termination Type |
AA – Horizontal Surface Mount |
| Electrical Mechanical Specifications |
– |
| Temperature |
-55ºC to +125ºC (200 ºC w/HTE) |
| Dielectric Withstand Voltage |
250 VAC RMS Sea Level |
| Contact Resistance |
71 mV Drop @ 1 AMP |
| Current Rating |
1 AMP per contact |
| Durability |
200 Mating cycles min* |
| Insulation Resistance |
5000 megohms min @ 100 VDC |
| Shock |
100 gs with no discontinuties > 10 nanoseconds |
| Vibration |
20 gs with no discontinuties > 10 nanoseconds |
| Thermal Vacuum Outgassing |
1.0% max TML, 0.1% max VCM |
| Mating/Unmating Force |
7 oz. (198 g) max per contact |
| Material Specifications |
– |
| Shell Material and Finish |
Aluminum Shell, Electroless Nickel Plated Aluminum Shell, Black Anodized Aluminum Shell, Cadmium Plated Titanium Shell, Unplated Stainless Steel Shell, Passivated |
| Insulator |
Liquid Crystal Polymer per MIL-DTL-32139 or PEEK |
| Pin |
Gold Plated BeCu |
| Socket |
Gold Plated Copper Alloy |
| Encapsulant |
Epoxy |
Features
Omnetics’ Dual Row Bi-Lobe® nanos are available with panel mount housings. These housings require minimal space to create a convenient I/O arrangement. Utilizing Omnetics highly reliable gold plated Flex Pin contact system, these connectors are mateable with all MIL-DTL-32139 plugs.
Their low mass and .025″ (.64 mm) centerlines make them ideal for high shock & vibration applications. They feature retention screw receptacles for a positive lock. Termination options include pre-wired, SMT, flex mount and straight tails.
Shell material options include Aluminum and Stainless steel with multiple standard and custom plating options upon request. These connectors are available in standard sizes ranging from 9 through 65 positions, as well as custom configurations
Specifications
| Omnetics Series |
MNSOP |
|---|---|
| Rows |
2 Rows |
| Termination Type |
AA – Horizontal Surface Mount |
| Electrical Mechanical Specifications |
– |
| Temperature |
-55ºC to +125ºC (200 ºC w/HTE) |
| Dielectric Withstand Voltage |
250 VAC RMS Sea Level |
| Contact Resistance |
71 mV Drop @ 1 AMP |
| Current Rating |
1 AMP per contact |
| Durability |
200 Mating cycles min* |
| Insulation Resistance |
5000 megohms min @ 100 VDC |
| Shock |
100 gs with no discontinuties > 10 nanoseconds |
| Vibration |
20 gs with no discontinuties > 10 nanoseconds |
| Thermal Vacuum Outgassing |
1.0% max TML, 0.1% max VCM |
| Mating/Unmating Force |
7 oz. (198 g) max per contact |
| Material Specifications |
– |
| Shell Material and Finish |
Aluminum Shell, Electroless Nickel Plated Aluminum Shell, Black Anodized Aluminum Shell, Cadmium Plated Titanium Shell, Unplated Stainless Steel Shell, Passivated |
| Insulator |
Liquid Crystal Polymer per MIL-DTL-32139 or PEEK |
| Pin |
Gold Plated BeCu |
| Socket |
Gold Plated Copper Alloy |
| Encapsulant |
Epoxy |
