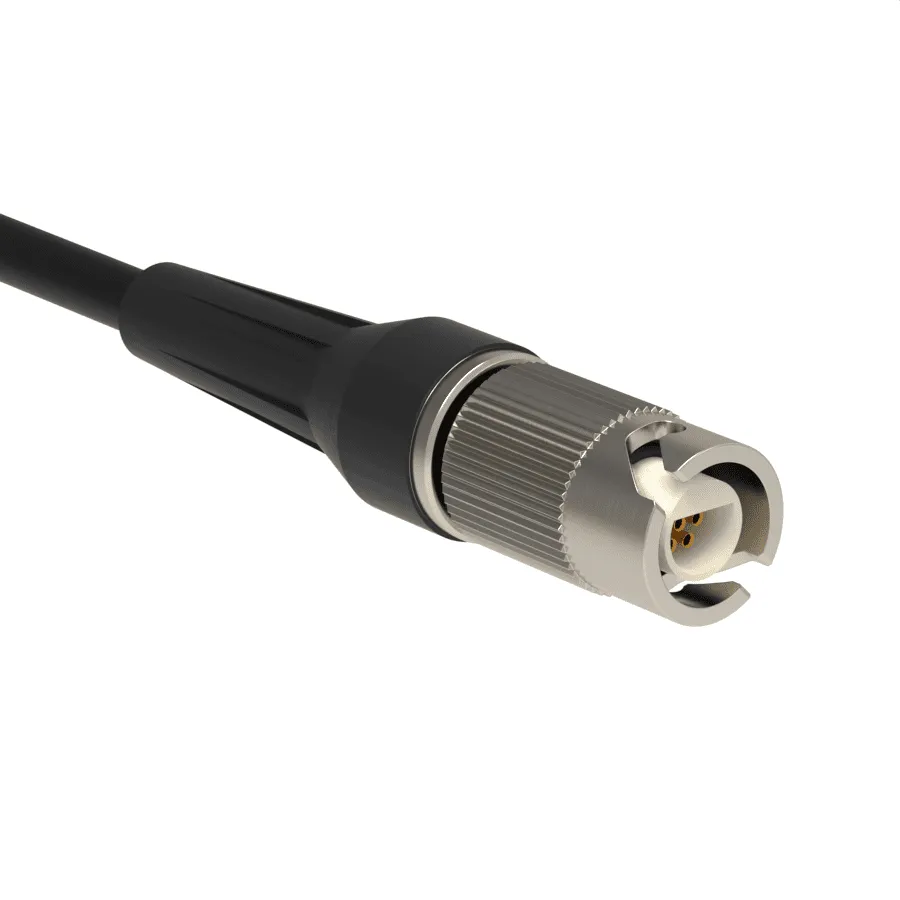

Micro 360® Twist Lock Metal Shell Circulars – Discrete Wire/Cable

$1.00

Omnetics micro series of circular connectors are now available with twist lock shells.

Resources

Title	Type	File
Micro 360® Circulars Twist Lock Panel Mount – Straight Thru-Hole Contact	PDF	Download
Micro 360® Circulars Twist Lock Panel Mount – Straight Thru-Hole Ordering Guide	PDF	Download

Compare

Description
Additional information
Features
Specifications
Resources
Accessories
Related

Description

Omnetics micro series of circular connectors are now available with twist lock shells. The locking mechanism is a simple quarter turn, similar to those commonly used in BNC connectors. When combined with a jacketed cable, these connectors are available with an IP67 seal.

These high density multi-position connectors are available in sizes from 5, 7, 12, 16, 27 & 39 positions and have contacts arranged on a .050 (.64 mm) pitch. Utilizing a military quality contact system these connectors are ideal for applications where size weight and rugged reliability are critical.Many standard and custom options are available including bulkhead mounts, cable harnesses, specialty metals and plating. Let Omnetics help with your next product design.

Additional information

Omnetics Series	TMCP , TMCS
Rows	2 Rows , 3 Rows , 4 Rows
Termination Type	WC – Cable , WD – Discrete Leadwire
Electrical Mechanical Specifications	–
Temperature	-55ºC to +125ºC (200 ºC w/HTE)
Dielectric Withstand Voltage	250 VAC RMS at Sea Level
Contact Resistance	26 Milliohm Max (65 mV Drop Max) @ 2.5 AMPs per MIL-DTL-83513
Current Rating	3 AMPs per contact
Durability	500 cycles
Insulation Resistance	5, 000 megohms min @ 500 VDC
Shock	50 gs with no discontinuties > 1 microsecond
Vibration	20 gs with no discontinuties > 1 microsecond
Thermal Vacuum Outgassing	NASA SP-R-0022
Mating/Unmating Force	3 oz (85 g) typical per contact
Material Specifications	–
Shell Material and Finish	Ni Plated Brass or Black Ni. Contact Factory for other Materials
Insulator	LCP per MIL-M-24519, Type GLCP-30F
Pin	Beryllium Copper per ASTM B194, Alloy C17200
Socket	Copper Alloy MIL-DTL-83513
Encapsulant	Epoxy

Features

Omnetics micro series of circular connectors are now available with metal housings giving them a environmental seal. They have ability to withstand high shock and vibrations while maintaining electrical integrity. A variety of shell material and finishes are available. Sizes available 5, 7, 12, 16, 27 & 39 .

Specifications

Omnetics Series	TMCP , TMCS
Rows	2 Rows , 3 Rows , 4 Rows
Termination Type	WC – Cable , WD – Discrete Leadwire
Electrical Mechanical Specifications	–
Temperature	-55ºC to +125ºC (200 ºC w/HTE)
Dielectric Withstand Voltage	250 VAC RMS at Sea Level
Contact Resistance	26 Milliohm Max (65 mV Drop Max) @ 2.5 AMPs per MIL-DTL-83513
Current Rating	3 AMPs per contact
Durability	500 cycles
Insulation Resistance	5, 000 megohms min @ 500 VDC
Shock	50 gs with no discontinuties > 1 microsecond
Vibration	20 gs with no discontinuties > 1 microsecond
Thermal Vacuum Outgassing	NASA SP-R-0022
Mating/Unmating Force	3 oz (85 g) typical per contact
Material Specifications	–
Shell Material and Finish	Ni Plated Brass or Black Ni. Contact Factory for other Materials
Insulator	LCP per MIL-M-24519, Type GLCP-30F
Pin	Beryllium Copper per ASTM B194, Alloy C17200
Socket	Copper Alloy MIL-DTL-83513
Encapsulant	Epoxy
