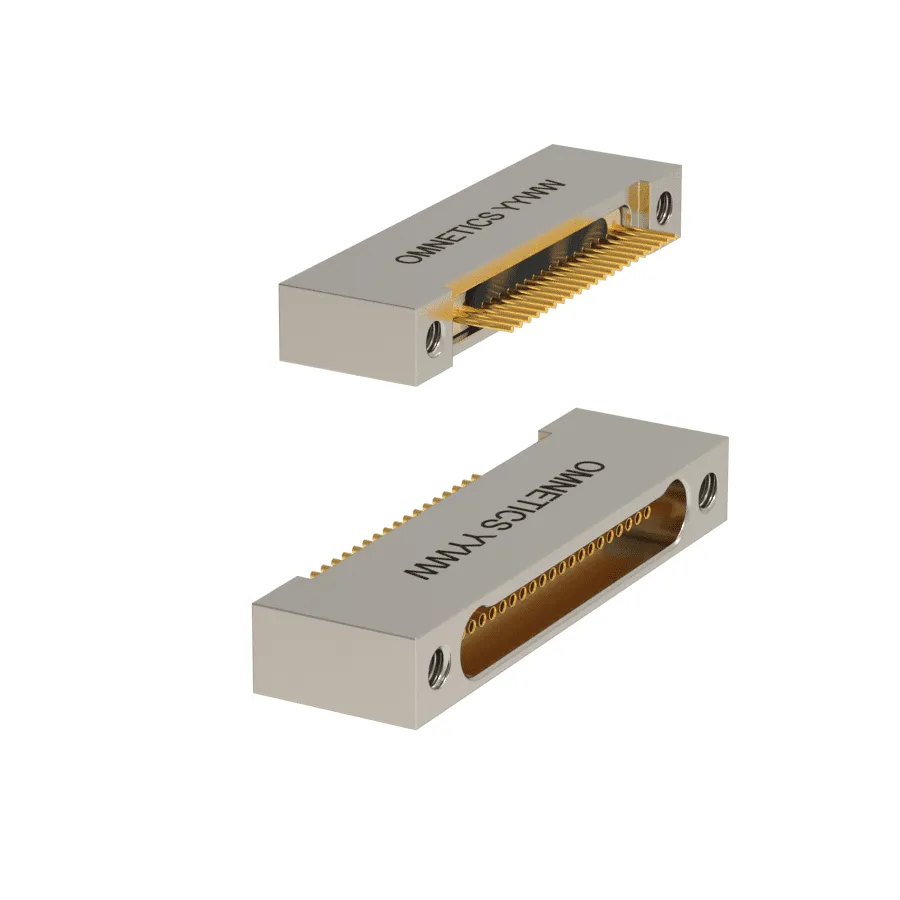

Nano-D / Bi-Lobe® Single Row Straight Tails (DD)

$1.00

Single Row Nano-D / Bi-Lobe® nanos can be loaded with simple straight tails (Integral or Crimped). Suitable for vertical thruhole mounting to fine pitched flex circuits, they are designed on .025″ (.64 mm) centerlines.

Resources

Title	Type	File
Nano-D / Bi-Lobe® Single Row Straight Tails (DD) Contact	PDF	Download
Nano-D / Bi-Lobe® Single Row Straight Tails (DD) Ordering Guide	PDF	Download
Nano-D / Bi-Lobe® Single Row Straight Tails (DD) Hardware & Misc.	PDF	Download

Compare

Description
Additional information
Features
Specifications
Resources
Accessories
Related

Description

The straight tails are also commonly used in ultra fine wirewrap termination, such as used in electro-physiology. These durable lightweight connectors utilize Omnetics gold plated Flex Pin contact system and are suitable for the most demanding applications. They are inter-mateable with Omnetics QPL versions of MIL-DTL-32139.

These connectors are available in standard sizes ranging from 5 through 51 positions, as well as custom configurations. Flex design and termination is available. Please contact us for more information.

Additional information

Omnetics Series	MBPS , MBSS
Rows	1 Row
Termination Type	DD – Thru-Hole Straight
Electrical Mechanical Specifications	–
Temperature	-55ºC to +125ºC (200 ºC w/HTE)
Dielectric Withstand Voltage	250 VAC RMS Sea Level
Contact Resistance	71 mV Drop @ 1 AMP
Current Rating	1 AMP per contact
Durability	200 Mating cycles min*
Insulation Resistance	5000 megohms min @ 100 VDC
Shock	100 gs with no discontinuties > 10 nanoseconds
Vibration	20 gs with no discontinuties > 10 nanoseconds
Thermal Vacuum Outgassing	1.0% max TML, 0.1% max VCM
Mating/Unmating Force	7 oz. (198 g) max per contact
Material Specifications	–
Shell Material and Finish	Aluminum Shell, Electroless Nickel Plated Aluminum Shell, Black AnodizedAluminum Shell, Cadmium PlatedTitanium Shell, UnplatedStainless Steel Shell, Passivated
Insulator	Liquid Crystal Polymer per MIL-DTL-32139 or PEEK
Pin	Gold Plated BeCu
Socket	Gold Plated Copper Alloy
Encapsulant	Epoxy

Features

The straight tails are also commonly used in ultra fine wirewrap termination, such as used in electro-physiology. These durable lightweight connectors utilize Omnetics’ gold plated Flex Pin contact system and are suitable for the most demanding applications. They are inter-mateable with Omnetics QPL versions of MIL-DTL-32139.

Specifications

Omnetics Series	MBPS , MBSS
Rows	1 Row
Termination Type	DD – Thru-Hole Straight
Electrical Mechanical Specifications	–
Temperature	-55ºC to +125ºC (200 ºC w/HTE)
Dielectric Withstand Voltage	250 VAC RMS Sea Level
Contact Resistance	71 mV Drop @ 1 AMP
Current Rating	1 AMP per contact
Durability	200 Mating cycles min*
Insulation Resistance	5000 megohms min @ 100 VDC
Shock	100 gs with no discontinuties > 10 nanoseconds
Vibration	20 gs with no discontinuties > 10 nanoseconds
Thermal Vacuum Outgassing	1.0% max TML, 0.1% max VCM
Mating/Unmating Force	7 oz. (198 g) max per contact
Material Specifications	–
Shell Material and Finish	Aluminum Shell, Electroless Nickel Plated Aluminum Shell, Black AnodizedAluminum Shell, Cadmium PlatedTitanium Shell, UnplatedStainless Steel Shell, Passivated
Insulator	Liquid Crystal Polymer per MIL-DTL-32139 or PEEK
Pin	Gold Plated BeCu
Socket	Gold Plated Copper Alloy
Encapsulant	Epoxy
