Home Connectors Micro Strip Single Row Solder Cup (SS)
Nano-D / Bi-Lobe® Connectors - Dual Row - Horizontal SMT (AA)
Nano-D / Bi-Lobe® Connectors - Dual Row - Horizontal SMT (AA) $1.00
Back to products
Dual Row Short/Long Alt. Thru-Hole (H2)
Dual Row Short/Long Alt. Thru-Hole (H2) $1.00

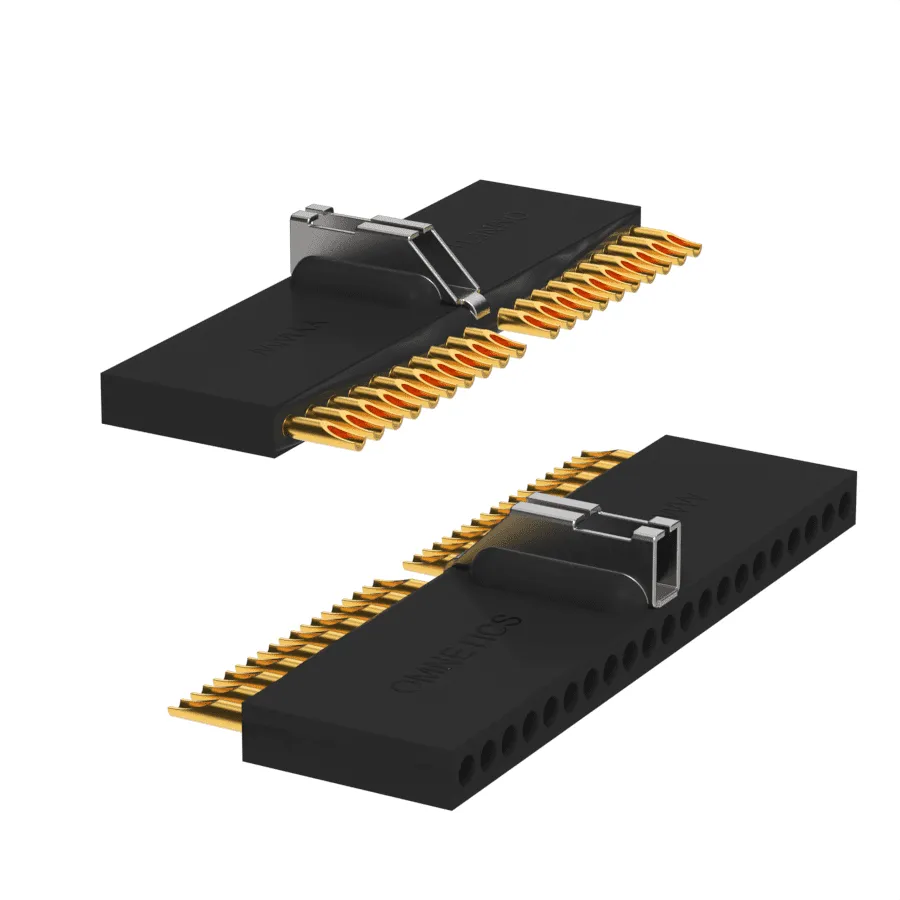

Single Row Solder Cup (SS)

$1.00

The soldercup tails are commonly used within hand soldering applications, and or specific wire based devices that require a small robust connector during one of the final phases of production.

Resources

Title Type File
Single Row Solder Cup (SS) Contact PDF Download
Single Row Solder Cup (SS) Ordering Guide PDF Download
Compare
Categories: All Products, Connectors, Micro Strip, Single Row Micro Strip Tags: Micro Strip, Single Row Micro Strip
Share:
  • Description
  • Additional information
  • Features
  • Specifications
  • Resources
  • Accessories
  • Related

Description

The soldercup tails are commonly used within hand soldering applications, and or specific wire based devices that require a small robust connector during one of the final phases of production. Whatever your application, these connectors feature Omnetics’ gold plated Flex Pin contact system that conforms to the requirements of MIL-DTL-83513. These connectors are available in standard sizes ranging from 2 through 48 positions as well as custom configurations, and accept 26 AWG or smaller stranded wire.

Additional information

Omnetics Series

PS1

,

PS2

,

SSB

Rows

1 Row

Termination Type

SS – Soldercup

Electrical Mechanical Specifications

–

Temperature

-55ºC to +125ºC (200 ºC w/HTE)

Dielectric Withstand Voltage

600 VAC RMS Sea Level

Contact Resistance

26 milliohms (65 mV max @ 2.5 AMPs)

Current Rating

3 AMPs per contact

Durability

500 Cycles

Insulation Resistance

5, 000 Megohms min @ 500 VDC

Shock

50 g’s with no discontinuities > 1 microsecond

Vibration

20 g’s with no discontinuities > 1 microsecond

Thermal Vacuum Outgassing

NASA SP-R-0022

Mating/Unmating Force

Forces not to exceed 6 oz/contact

Material Specifications

–

Insulator

Polyphenylene Sulfide per MIL-M-24519

Socket

Gold Plated Copper Alloy

Encapsulant

Epoxy

Standard Pin PCB Tail Termination

Solder per J-STD-006 (Non-RoHS) or ASTM P-81728

RoHS Pin PCB Tail Termination

Hard gold plate per ASTM B488

RoHS Socket PCB Tail Termination

Hard gold plate per ASTM B488

Features

The soldercup tails are commonly used within hand soldering applications, and or specific wire based devices that require a small robust connector during one of the final phases of production. Whatever your application, these connectors feature Omnetics’ gold plated Flex Pin contact system that conforms to the requirements of MIL-DTL-83513. These connectors are available in standard sizes ranging from 2 through 48 positions as well as custom configurations, and accept 26 AWG or smaller stranded wire.

Specifications

Omnetics Series

PS1

,

PS2

,

SSB

Rows

1 Row

Termination Type

SS – Soldercup

Electrical Mechanical Specifications

–

Temperature

-55ºC to +125ºC (200 ºC w/HTE)

Dielectric Withstand Voltage

600 VAC RMS Sea Level

Contact Resistance

26 milliohms (65 mV max @ 2.5 AMPs)

Current Rating

3 AMPs per contact

Durability

500 Cycles

Insulation Resistance

5, 000 Megohms min @ 500 VDC

Shock

50 g’s with no discontinuities > 1 microsecond

Vibration

20 g’s with no discontinuities > 1 microsecond

Thermal Vacuum Outgassing

NASA SP-R-0022

Mating/Unmating Force

Forces not to exceed 6 oz/contact

Material Specifications

–

Insulator

Polyphenylene Sulfide per MIL-M-24519

Socket

Gold Plated Copper Alloy

Encapsulant

Epoxy

Standard Pin PCB Tail Termination

Solder per J-STD-006 (Non-RoHS) or ASTM P-81728

RoHS Pin PCB Tail Termination

Hard gold plate per ASTM B488

RoHS Socket PCB Tail Termination

Hard gold plate per ASTM B488
