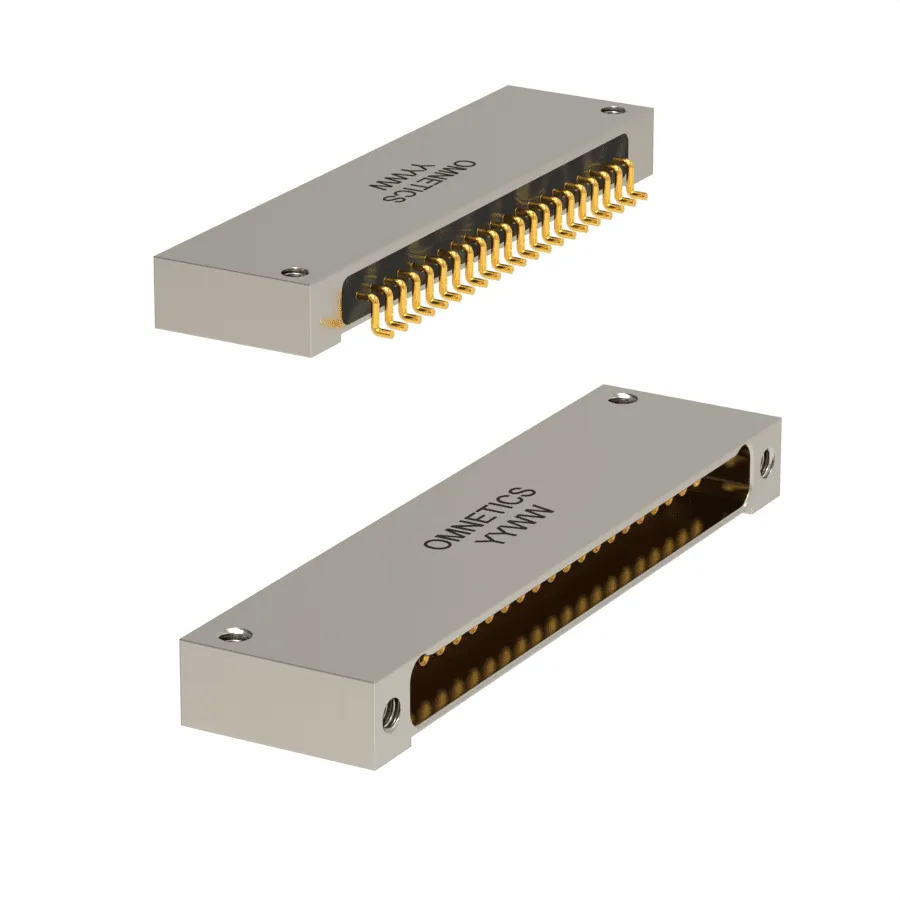

Single Row Micro-D Horizontal SMT (AA)
$1.00
OmneticsÂ’ Ultra Low Profile Single Row Micro-D Connectors are ideal for critical, high reliability industries including aerospace, military, petroleum, and medical.
Resources
| Title | Type | File |
| Single Row Micro-D Horizontal SMT (AA) Guide | Download |
Description
Omnetics’ Ultra Low Profile Single Row Micro-D Connectors are ideal for critical, high reliability industries including aerospace, military, petroleum, and medical. They are also used in devices such as optics, guidance systems, on-board equipment, space, and UAV systems. They are built to meet or exceed the specifications of MIL-DTL-83513. Highly rugged and compact designs in shell styles from 9 to 37 contacts. The Single Row Micro-D connectors incorporate Omnetics one-piece flex pin design for greater shock and vibration resistance. The high reliability gold plated flex pin is designed for >2,000 mating cycles. Omnetics Single Row Micro-D connectors will operate from -55°C to 200°C.
Additional information
| Omnetics Series |
MMSS |
|---|---|
| Rows |
1 Row |
| Termination Type |
AA – Horizontal Surface Mount |
| Electrical Mechanical Specifications |
– |
| Temperature |
-55ÂşC to +125ÂşC (200 ÂşC w/HTE) |
| Dielectric Withstand Voltage |
600 VAC RMS at Sea Level |
| Contact Resistance |
26 milliohms (65 mV) max @ 2.5 Amps per MIL-DTL-83513 |
| Current Rating |
3 Amps per contact per MIL-DTL-83513 |
| Durability |
2\,000 Mating Cycles min |
| Insulation Resistance |
5000 Meg ohms @ 500 VDC |
| Shock |
50 gÂ’s with no discontinuities > 1 microsecond |
| Vibration |
20 gÂ’s with no discontinuities > 1 microsecond |
| Thermal Vacuum Outgassing |
1.0% max TML\, 0.03% CVCM – NASA SP-R-0022 |
| Mating/Unmating Force |
3 oz (85 g) typical per contact |
| Material Specifications |
– |
| Contact Finish |
Gold per ASTM B488\, Type II\, Class 1.27\, Code C Over Nickel Underplate |
| Insulator |
Thermoplastic per MIL-M-24519 |
| Interfacial Seal |
Silicone Elastomer per A-A-59588 |
| Hardware |
Stainless Steel\, 300 Series\, Passivated per SAE AMS-2700 |
| Shell Options |
– |
| Aluminum 6061 |
Electroless Nickel per SAE-AMS-2404 |
| Stainless Steel, 300 Series |
Passivated per SAE-AMS-2700 |
Features
Omnetics’ Ultra Low Profile Single Row Micro-D Connectors are ideal for critical, high reliability industries including aerospace, military, petroleum, and medical. They are also used in devices such as optics, guidance systems, on-board equipment, space, and UAV systems. They are built to meet or exceed the specifications of MIL-DTL-83513. Highly rugged and compact designs in shell styles from 9 to 37 contacts. The Single Row Micro-D connectors incorporate Omnetics one-piece flex pin design for greater shock and vibration resistance. The high reliability gold plated flex pin is designed for >2,000 mating cycles. Omnetics Single Row Micro-D connectors will operate from -55°C to 200°C.
Specifications
| Omnetics Series |
MMSS |
|---|---|
| Rows |
1 Row |
| Termination Type |
AA – Horizontal Surface Mount |
| Electrical Mechanical Specifications |
– |
| Temperature |
-55ÂşC to +125ÂşC (200 ÂşC w/HTE) |
| Dielectric Withstand Voltage |
600 VAC RMS at Sea Level |
| Contact Resistance |
26 milliohms (65 mV) max @ 2.5 Amps per MIL-DTL-83513 |
| Current Rating |
3 Amps per contact per MIL-DTL-83513 |
| Durability |
2\,000 Mating Cycles min |
| Insulation Resistance |
5000 Meg ohms @ 500 VDC |
| Shock |
50 gÂ’s with no discontinuities > 1 microsecond |
| Vibration |
20 gÂ’s with no discontinuities > 1 microsecond |
| Thermal Vacuum Outgassing |
1.0% max TML\, 0.03% CVCM – NASA SP-R-0022 |
| Mating/Unmating Force |
3 oz (85 g) typical per contact |
| Material Specifications |
– |
| Contact Finish |
Gold per ASTM B488\, Type II\, Class 1.27\, Code C Over Nickel Underplate |
| Insulator |
Thermoplastic per MIL-M-24519 |
| Interfacial Seal |
Silicone Elastomer per A-A-59588 |
| Hardware |
Stainless Steel\, 300 Series\, Passivated per SAE AMS-2700 |
| Shell Options |
– |
| Aluminum 6061 |
Electroless Nickel per SAE-AMS-2404 |
| Stainless Steel, 300 Series |
Passivated per SAE-AMS-2700 |
