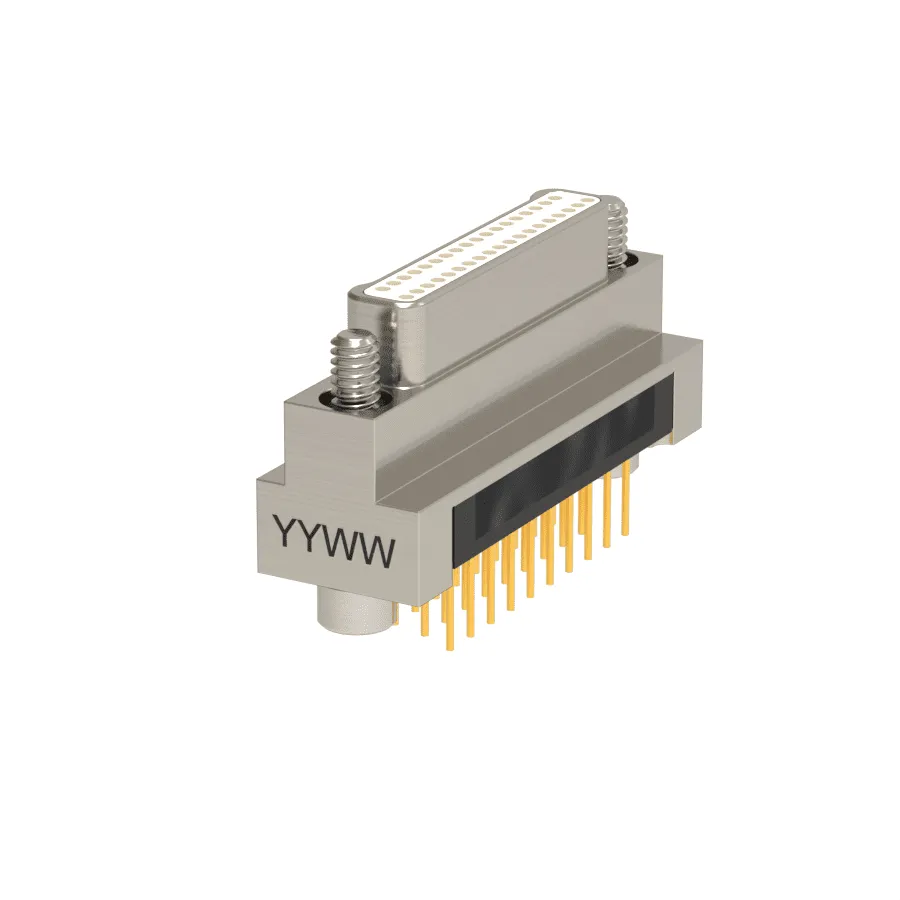

Nano-D / Bi-Lobe® Connectors – Single Row Thru-Hole Vertical (V2)
$1.00
The Single Row Bi-Lobe® V2 nanos have contacts arranged on .025″ (.64 mm) centerlines. The thru-hole tails are spread into a mounting pattern on .050″ (1.27 mm) centers, allowing space for traces and annular rings.
Resources
| Title | Type | File |
| Nano-D / Bi-Lobe® Connectors – Single Row Thru-Hole Vertical (V2) Contact | Download | |
| Nano-D / Bi-Lobe® Connectors – Single Row Thru-Hole Vertical (V2) Ordering Guide | Download | |
| Nano-D / Bi-Lobe® Connectors – Single Row Thru-Hole Vertical (V2) Hardware & Misc. | Download |
Description
The Single Row Bi-Lobe® V2 nanos have contacts arranged on .025″ (.64 mm) centerlines. The thru-hole tails are spread into a mounting pattern on .050″ (1.27 mm) centers, allowing space for traces and annular rings.
Featuring Omnetics gold plated Flex Pin contact system, these durable lightweight connectors are perfect for the most demanding applications and are inter-mateable with our QPL versions of Military Specification MIL-DTL-32139.
They are available with retention screws for a positive lock. Shell material options include Aluminum and Stainless steel with multiple standard and custom plating options upon request. These connectors are available in standard sizes ranging from 9 through 65 positions, as well as custom configurations.
Additional information
| Omnetics Series |
MBPS ,MBSS |
|---|---|
| Rows |
1 Row |
| Termination Type |
V2 – Vertical Thru-Hole |
| Electrical Mechanical Specifications |
– |
| Temperature |
-55ºC to +125ºC (200 ºC w/HTE) |
| Dielectric Withstand Voltage |
250 VAC RMS Sea Level |
| Contact Resistance |
71 mV Drop @ 1 AMP |
| Current Rating |
1 AMP per contact |
| Durability |
200 Mating cycles min* |
| Insulation Resistance |
5000 megohms min @ 100 VDC |
| Shock |
100 gs with no discontinuties > 10 nanoseconds |
| Vibration |
20 gs with no discontinuties > 10 nanoseconds |
| Thermal Vacuum Outgassing |
1.0% max TML, 0.1% max VCM |
| Mating/Unmating Force |
7 oz. (198 g) max per contact |
| Material Specifications |
– |
| Shell Material and Finish |
Aluminum Shell, Electroless Nickel Plated Aluminum Shell, Black AnodizedAluminum Shell, Cadmium PlatedTitanium Shell, UnplatedStainless Steel Shell, Passivated |
| Insulator |
Liquid Crystal Polymer per MIL-DTL-32139 or PEEK |
| Pin |
Gold Plated BeCu |
| Socket |
Gold Plated Copper Alloy |
| Encapsulant |
Epoxy |
Features
The Single Row Bi-Lobe® V2 nanos have contacts arranged on .025″ (.64 mm) centerlines. The thru-hole tails are spread into a mounting pattern on .050″ (1.27 mm) centers, allowing space for traces and annular rings.
Featuring Omnetics gold plated Flex Pin contact system, these durable lightweight connectors are perfect for the most demanding applications and are inter-mateable with our QPL versions of Military Specification MIL-DTL-32139.
They are available with retention screws for a positive lock. Shell material options include Aluminum and Stainless steel with multiple standard and custom plating options upon request. These connectors are available in standard sizes ranging from 9 through 65 positions, as well as custom configurations.
Specifications
| Omnetics Series |
MBPS ,MBSS |
|---|---|
| Rows |
1 Row |
| Termination Type |
V2 – Vertical Thru-Hole |
| Electrical Mechanical Specifications |
– |
| Temperature |
-55ºC to +125ºC (200 ºC w/HTE) |
| Dielectric Withstand Voltage |
250 VAC RMS Sea Level |
| Contact Resistance |
71 mV Drop @ 1 AMP |
| Current Rating |
1 AMP per contact |
| Durability |
200 Mating cycles min* |
| Insulation Resistance |
5000 megohms min @ 100 VDC |
| Shock |
100 gs with no discontinuties > 10 nanoseconds |
| Vibration |
20 gs with no discontinuties > 10 nanoseconds |
| Thermal Vacuum Outgassing |
1.0% max TML, 0.1% max VCM |
| Mating/Unmating Force |
7 oz. (198 g) max per contact |
| Material Specifications |
– |
| Shell Material and Finish |
Aluminum Shell, Electroless Nickel Plated Aluminum Shell, Black AnodizedAluminum Shell, Cadmium PlatedTitanium Shell, UnplatedStainless Steel Shell, Passivated |
| Insulator |
Liquid Crystal Polymer per MIL-DTL-32139 or PEEK |
| Pin |
Gold Plated BeCu |
| Socket |
Gold Plated Copper Alloy |
| Encapsulant |
Epoxy |
