Nano 360® Circulars Twist Lock Panel Mount – Discrete Wired/Cable (TYPE WD/WC)
$1.00
Omnetics Nano series of circular connectors are now available with metal housings giving them a environmental seal.
Resources
| Title | Type | File |
| Nano 360® Circulars Twist Lock Panel Mount – Discrete Wired/Cable (TYPE WD/WC) Contact | Download | |
| Nano 360® Circulars Twist Lock Panel Mount – Discrete Wired/Cable (TYPE WD/WC) Ordering Guide | Download |
Description

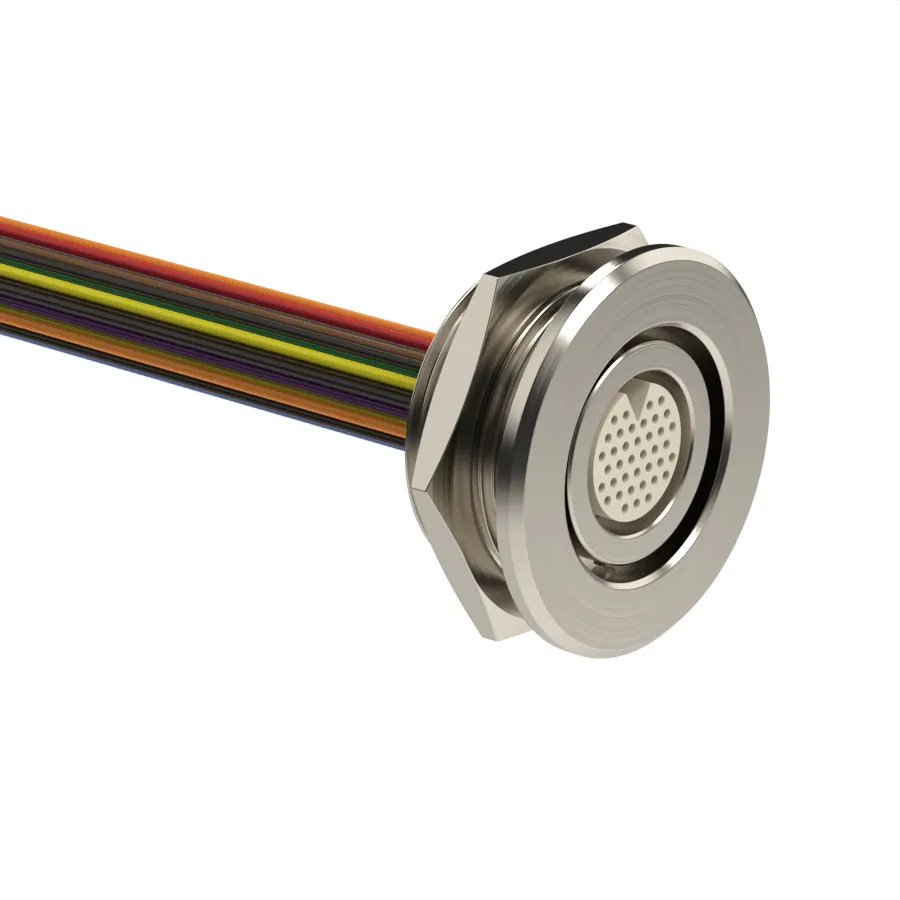

Omnetics Nano series of circular connectors are now available with metal housings giving them a environmental seal. They have ability to withstand high shock and vibrations while maintaining electrical integrity. A variety of shell material and finishes are available. Sizes available 05, 12, 16 & 27.Wire Terminations available with Discrete wire and Cable.
Additional information
| Omnetics Series |
TNCP |
|---|---|
| Rows |
1 Row |
| Termination Type |
WC – Cable ,WD – Discrete Leadwire |
| Electrical Mechanical Specifications |
– |
| Temperature |
-55ºC to +125ºC (200 ºC w/HTE) |
| Dielectric Withstand Voltage |
250 VAC RMS |
| Contact Resistance |
71 Milliohm Max (71 mV Drop Max) @ 1.0 AMPs |
| Current Rating |
1 AMP per contact |
| Durability |
200 cycles |
| Insulation Resistance |
5, 000 megohms min @ 500 VDC |
| Shock |
100 gs with no discontinuties > 10 nanoseconds |
| Vibration |
20 gs with no discontinuties > 10 nanoseconds |
| Thermal Vacuum Outgassing |
1.0% max TML, 0.03% max CVCM |
| Mating/Unmating Force |
2.5 oz (71 g) typical per contact |
| Material Specifications |
– |
| Shell Material and Finish |
Ni Plated Brass or Black Ni. Contact Factory for other Materials |
| Insulator |
Thermoplastic Polymer, Per MIL-DTL-24519 |
| Pin |
Beryllium Copper per ASTM B194, Alloy C17200 |
| Socket |
Copper Alloy MIL-DTL-83513 |
| Encapsulant |
Epoxy |
Features
Omnetics Nano series of circular connectors are now available with metal housings giving them a environmental seal. They have ability to withstand high shock and vibrations while maintaining electrical integrity. A variety of shell material and finishes are available. Sizes available 05, 12, 16 & 27.Wire Terminations available with Discrete wire and Cable.
Specifications
| Omnetics Series |
TNCP |
|---|---|
| Rows |
1 Row |
| Termination Type |
WC – Cable ,WD – Discrete Leadwire |
| Electrical Mechanical Specifications |
– |
| Temperature |
-55ºC to +125ºC (200 ºC w/HTE) |
| Dielectric Withstand Voltage |
250 VAC RMS |
| Contact Resistance |
71 Milliohm Max (71 mV Drop Max) @ 1.0 AMPs |
| Current Rating |
1 AMP per contact |
| Durability |
200 cycles |
| Insulation Resistance |
5, 000 megohms min @ 500 VDC |
| Shock |
100 gs with no discontinuties > 10 nanoseconds |
| Vibration |
20 gs with no discontinuties > 10 nanoseconds |
| Thermal Vacuum Outgassing |
1.0% max TML, 0.03% max CVCM |
| Mating/Unmating Force |
2.5 oz (71 g) typical per contact |
| Material Specifications |
– |
| Shell Material and Finish |
Ni Plated Brass or Black Ni. Contact Factory for other Materials |
| Insulator |
Thermoplastic Polymer, Per MIL-DTL-24519 |
| Pin |
Beryllium Copper per ASTM B194, Alloy C17200 |
| Socket |
Copper Alloy MIL-DTL-83513 |
| Encapsulant |
Epoxy |
