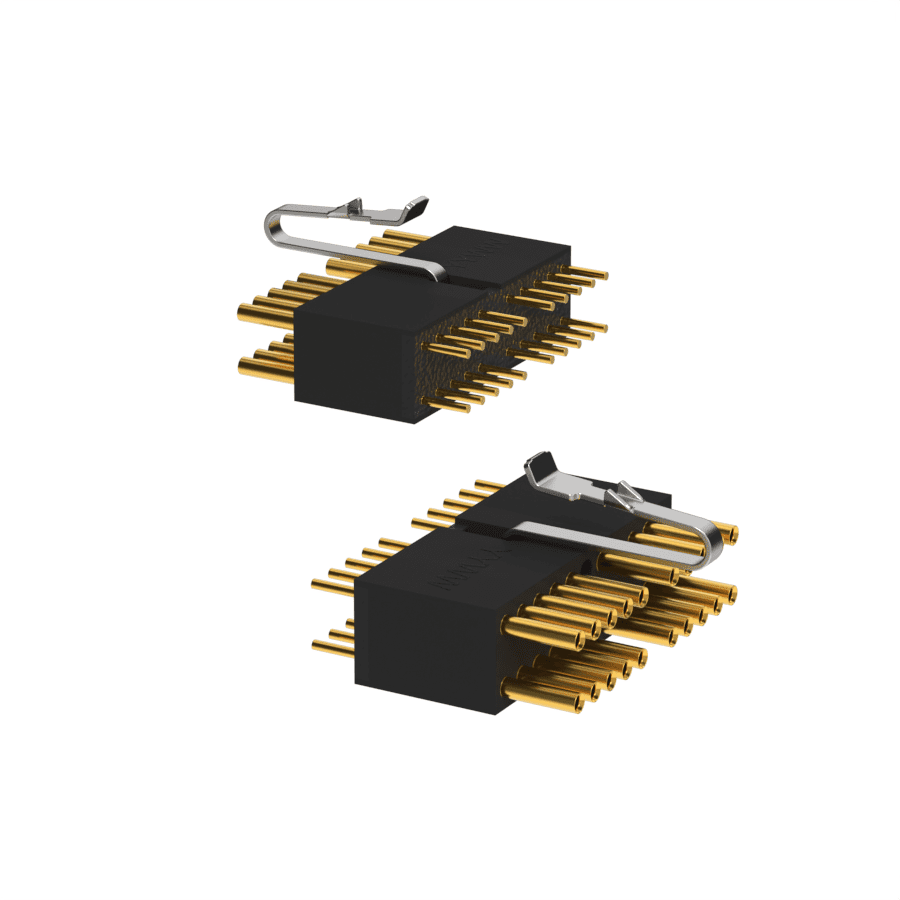

Dual Row Offset Straight Tail (DD)
$1.00
The Dual Row .050 Offset Micro Strip connectors are configured with simple straight tails (Integral or Crimped).
Resources
| Title | Type | File |
| Dual Row Offset Straight Tail (DD) Contact | Download | |
| Dual Row Offset Straight Tail (DD) Ordering Guide | Download |
Description
The Dual Row .050 Offset Micro Strip connectors are configured with simple straight tails (Integral or Crimped). Suitable for vertical thru-hole mounting to fine pitched or rigid flex circuits. The straight solid tails are also commonly used in ultra fine wrap terminations, such as electro physiology. These connectors feature Omnetics’ highly reliable gold plated Flex Pin contact system which meets the performance specifications of MIL-DTL-83513. Available with mounting holes suitable for PCB and flex mounting. These connectors are available in standard sizes ranging from 2 through 97 positions as well as custom configurations. Flex design and installation service is also available from Omnetics. Please contact us for more information.
Additional information
| Omnetics Series |
PSM ,SSO |
|---|---|
| Rows |
2 Rows |
| Termination Type |
DD – Thru-Hole Straight |
| Electrical Mechanical Specifications |
– |
| Temperature |
-55ºC to +125ºC (200 ºC w/HTE) |
| Dielectric Withstand Voltage |
600 VAC RMS Sea Level |
| Contact Resistance |
26 milliohms (65 mV max @ 2.5 AMPs) |
| Current Rating |
3 AMPs per contact |
| Durability |
500 Cycles |
| Insulation Resistance |
5, 000 Megohms min @ 500 VDC |
| Shock |
50 gs with no discontinuities > 1 microsecond |
| Vibration |
20 gs with no discontinuities > 1 microsecond |
| Thermal Vacuum Outgassing |
NASA SP-R-0022 |
| Mating/Unmating Force |
Forces not to exceed 6 oz/contact |
| Material Specifications |
– |
| Insulator |
Polyphenylene Sulfide per MIL-M-24519 |
| Socket |
Gold Plated Copper Alloy |
| Encapsulant |
Epoxy |
| Standard Pin PCB Tail Termination |
Solder per J-STD-006 (Non-RoHS) or ASTM P-81728 |
| RoHS Pin PCB Tail Termination |
Hard gold plate per ASTM B488 |
| RoHS Socket PCB Tail Termination |
Hard gold plate per ASTM B488 |
Features
The Dual Row .050” Offset Micro Strip connectors are configured with simple straight tails (Integral or Crimped). Suitable for vertical thru-hole mounting to fine pitched or rigid flex circuits. The straight solid tails are also commonly used in ultra fine wrap terminations, such as electro physiology. These connectors feature Omnetics’ highly reliable gold plated Flex Pin contact system which meets the performance specifications of MIL-DTL-83513. Available with mounting holes suitable for PCB and flex mounting. These connectors are available in standard sizes ranging from 2 through 97 positions as well as custom configurations. Flex design and installation service is also available from Omnetics. Please contact us for more information.
Specifications
| Omnetics Series |
PSM ,SSO |
|---|---|
| Rows |
2 Rows |
| Termination Type |
DD – Thru-Hole Straight |
| Electrical Mechanical Specifications |
– |
| Temperature |
-55ºC to +125ºC (200 ºC w/HTE) |
| Dielectric Withstand Voltage |
600 VAC RMS Sea Level |
| Contact Resistance |
26 milliohms (65 mV max @ 2.5 AMPs) |
| Current Rating |
3 AMPs per contact |
| Durability |
500 Cycles |
| Insulation Resistance |
5, 000 Megohms min @ 500 VDC |
| Shock |
50 gs with no discontinuities > 1 microsecond |
| Vibration |
20 gs with no discontinuities > 1 microsecond |
| Thermal Vacuum Outgassing |
NASA SP-R-0022 |
| Mating/Unmating Force |
Forces not to exceed 6 oz/contact |
| Material Specifications |
– |
| Insulator |
Polyphenylene Sulfide per MIL-M-24519 |
| Socket |
Gold Plated Copper Alloy |
| Encapsulant |
Epoxy |
| Standard Pin PCB Tail Termination |
Solder per J-STD-006 (Non-RoHS) or ASTM P-81728 |
| RoHS Pin PCB Tail Termination |
Hard gold plate per ASTM B488 |
| RoHS Socket PCB Tail Termination |
Hard gold plate per ASTM B488 |
